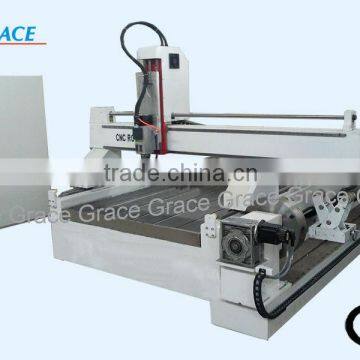

high specification cnc router with rotary clamp G1230

Working area:

1200x3000x200mm

Spindle type:

Italy HSD air cooled spindle

Spindle power

7 kw

Spindle rotating speed

0-24000rpm

Power (except spindle power):

8.87KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC380±10,  50 HZ

Max moving speed:

35m/min

Max. working speed:

25m/min

Worktable:

T slot table

Locating precision:

<0.01mm

Min shaping character:

Character:3x3mm,letter:2x2mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision:

±0.05mm

System resolution:

±0.001mm

Control configuration:

DSP5.0

Data transfer interface:

USB(offline)

System environment:

WINDOWS 2000/WINDOWS XP/ windows 7

Spindle cooling way:

air cooled

Graphic format supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible software

ARTCAM, UCANCAM and other CAD or CAM softwares….

Cutting thickness:

0-70mm also (depends on different material)

Z tool censor:

yes

Whole machine dimension:

3250x2050x1900(mm)

Net weight:

1650kgs

Gross weight

1780kgs

packing

Plywood case (veneer wood case for export)

Optional parts

1.Air cooled type spindle

2. Bigger or smaller power spindles (6kw or 3kw)

3. High-grade cooling system (chiller, it has alarming system)

4. double-head or more heads

5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc)

6. servo motors (China brand or Japan brand)

8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc)

9. NCstudio control system

10. other customerized features

Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks.
