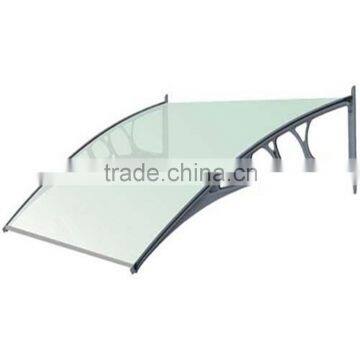

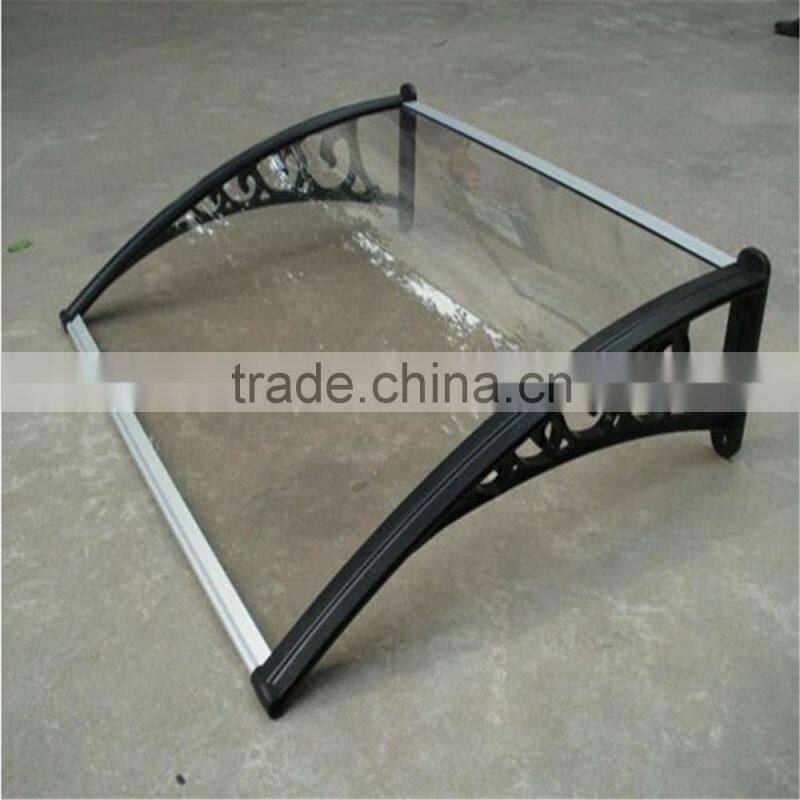

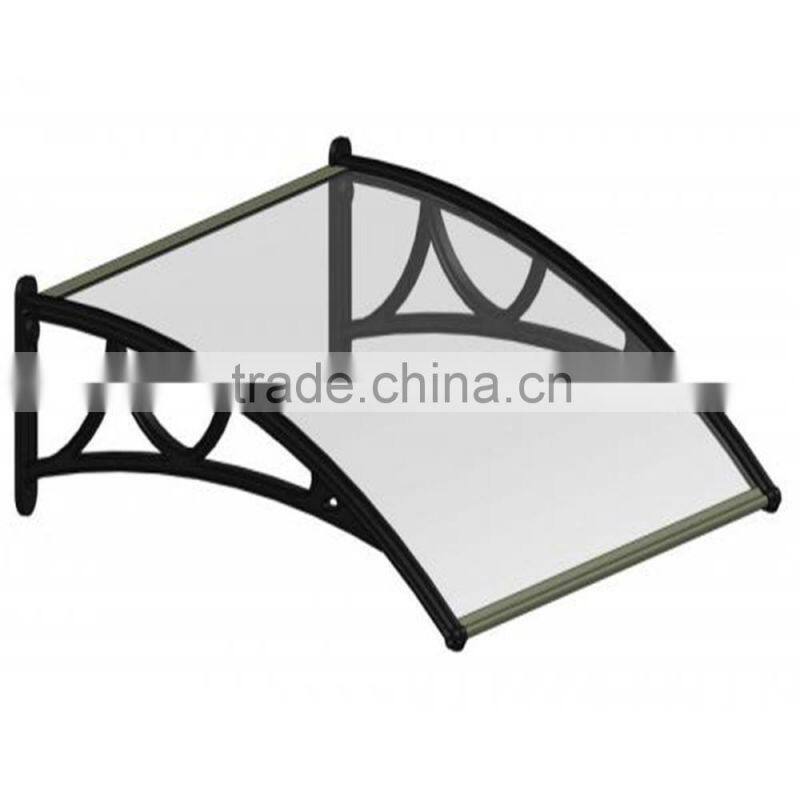

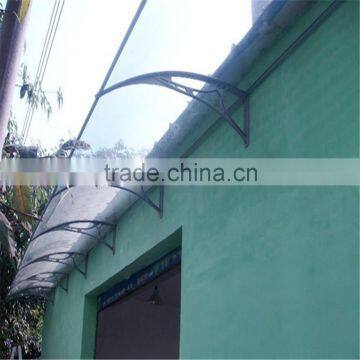

Economy Model Outdoor Garden Wall Mount Door Window Canopy Awning Rain Shelter Patio Exendable Cover Plastic Bracket

Product

Polycarbonate Solid Sheet

Material

100% bayer material or sabic material or customized

Place of origin

Hebei, China

Color

Clear, Blue, Lake Blue,Green, Bronze, Opal or Customized

Standard Width

1220mm,1560mm,1820mm,2100mm or can be cut

Thickness

1.2mm-15mm

Length

5800mm,11800mm other size is available

Certification

ISO 9001:2008

Surface

Anti-fog, UV protection

UV thickness

50 micron

Retardant standard

Grade B1(GB Standard)

Technology

Co-extrusion

Features

1) High light transmission: Up to 88% that of same thickness of general glass.
2) Excellent impact resistance: 80 times that of glass.
3) Weather and UV resistant-properties retained for years: Temperature resistance range is 40°C ~ +120°C, with an ultraviolet coextruded film on the sheet surface. It can prevent the resin fatigue or yellowing caused by the ultraviolet.
4) Light weight: Only 1/12 of the weight of glass of the same thickness. It can be easily cold bent as well as thermal shaping.
5) Flame resistance: High fire performance rating is class B1.
6) Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.
7) An engineering plastic of excellent integration capability. It has outstanding physical, mechanical, electrical and heat capabilities.

Samples

Free samples will send you for test

Characteristics

Unit

Data

Impact strength

J/m

2.1

Light Transmission

%

50-85

Specify Gravity

g/m

1.2

Coefficient Thermal Expansion

mm/m℃

0.065

Service Temperature

℃

-40℃---+120℃

Heat conductivity

W/m2℃

3.0-5.0

Flexural strength

N/mm2℃

100

Modulus of elasticity

Mpa

2400
