dual band radio PX888K amateur dual standby U/V cross band duplex repeater

FOB Price

Negotiable / Set

2 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

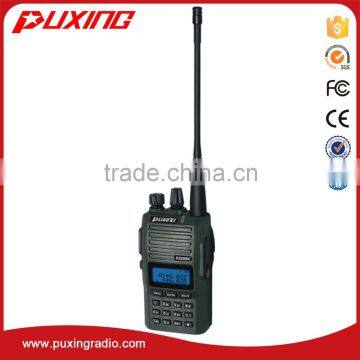

Dual band radio PX-888K
Features
Power	VHF5W/UHF4W
Frequency Range	136-174 & 400-470MHz
Channels	128
Battery	1200-1600mAh
Size	100×55×32mm
5tone signal/scrambler	Dual band/Dual display/Dual standby
DTMF:	select call ,group call broadcast call
CTCSS/DCS can be random programmed,with CTCSS/DCS scan	Built-in FM radio
Channel Spacing	25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band)
Phase-locked Step	5KHz,6.25KHz
Operating Voltage	7.4 V DC
Frequency Stability	±2.5ppm
Operating Temperature	-20°C +55°C
Weight	220g (with battery, antenna)
Transmitter (ETSI EN 300 086 standard testing )
Frequency Stability	±2.5ppm
Modulation Limiting	±2.5KHz
Audio Distortion	≤3%
Audio Response	+1dB~-3dB
Adjacent Channel Power	≥70dB/60dB
Spurious Radiation	≤7.5uW
Occupied Bandwidth	≤16KHz
Receiver (ETSI EN 300 086 standard testing )
RF Sensitivity	≤0.25μV
Audio distortion	≤3%
Audio Response	+1~-3dB
Adjacent Channel Selectivity	≥60dB
Intermodulation Rejection	≥70dB
Spurious Rejection	≥70dB
Blocking	≥80dB
Hum & Noise	-45dB
Audio output	500mW
Warranty	1year for radio,6monthes for battery
