Home > Products > DPMR handheld radio > PX-568D DPMR IP67 compact design durable housing

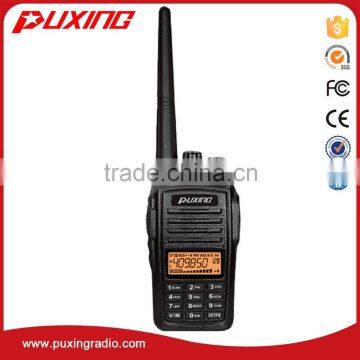

PX-568D DPMR IP67 compact design durable housing
Negotiable
/ Set
2 Sets(Min. Order)
- Xiamen
- T/T
You May Like
-
DPMR PX-558D TWO WAY RADIO
-
PX-780/820 DMR digital two way radio
-
professional dPMR radio OEM PX-680D 5w IP66 digital 4FSK modulation digital encryption compatible analog
-
dPMR radio PX-680D IP66 6.25khz FDMA system
-
DPMR radio PUXING OEM PX-300D 6.25KHZ FDMA system higher promoted spectrum utilization encryption
-
dPMR radio PX-558D IP67 AMBE+2C digital invoice and encription function
Product Details
| Place of Origin | Fujian, China | Brand Name | PUXING/OEM | |
| Model Number | PX-568D dPMR radio | Type | Handheld | |
| Dimensions | 110x50x35mm | Frequency Range | 136-174,400-470/446/245mhz | |
| Storage Channel | 128 channels | Talk Range | 5km |
Product Description
| PX-568D professsional FM transceiver is a high quality water proof IP67,it is great choice for people who often work outdoor and wade through water.with its compact design and durable housing,it achieves great anti-dropping performance and better communication voice.IP67,group call/single call DTMF/5tone/MSK tone VOX voice fuction 0-9 adjustable 50CTCSS/105DCS switchable Optional signaling call ANI identification code | ||
| IP67 two way radio PX-568D General | ||
| Frequency Range | VHF: 136-174MHz UHF: 400-470MHz | |
| Channel Capacity | 128 channels | |
| Channel Spacing | 25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band) | |
| Phase-locked Step | 5KHz,6.25KHz | |
| Operating Voltage | 7.4V DC | |
| Battery Life | More than 12 Hours (1200mAh), | |
| Frequency Stability | ±2.5ppm | |
| Operating Temperature | -20°C +55°C | |
| Size (not including antenna) | 98mm×53mm×30mm | |
| Weight (with battery, antenna) | 190g | |
| Transmitter (ETSI EN 300 086 standard testing ) | ||
| Wide band | Narrow band | |
| Power Output | 4W/5W | |
| Modulation | 16KΦF3E | 11KΦF3E |
| Adjacent Channel | ≥70dB | ≥60dB |
| Power | ||
| Hum & Noise | ≥40dB | ≥36dB |
| Spurious Emission | ≥-36dB | ≥-36dB |
| Audio Response | +2~-3dB(0.3~3KHz) | +2~-3dB(0.3~2.25KHz) |
| Audio Distortion | ≤5% | |
| Receiver (ETSI EN 300 086 standard testing ) | ||
| Wide band | Narrow band | |
| Sensitivity (12dB Sinad) | ≤0.25μV | ≤0.35μV |
| Adjacent Channel | ≥55dB | ≥55dB |
| Selectivity | ||
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥55dB | ≥55dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) |
| Hum & Noise | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Audio power output | 500mW / 10% | |
| OEM/ODM | support imprint your logo on products | |
| Warranty | 1year for radio,6monthes for battery | |
| shipment | FedEx/DHL/UPS 3-5days EMS/TNT 5-8days Hon Kong Post Air Parcel takes 7-30days | |
