Home > Products > DMR handheld radio > professional DMR radio PX-820 IP67 AMBE+2TM

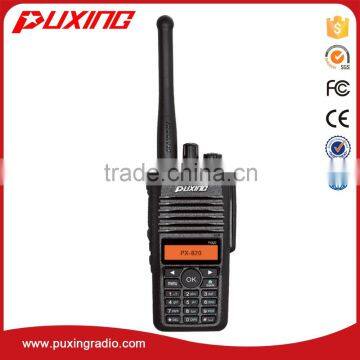

professional DMR radio PX-820 IP67 AMBE+2TM
Negotiable
/ Set
2 Sets(Min. Order)
- Xiamen
- T/T Credit Card PayPal
You May Like
-
dPMR radio PX-558D PUXING OEM compact ruggy housing VOX ANI identification code antidroping
-
PX-568D DPMR IP67 compact design durable housing
-
DPMR PX-558D TWO WAY RADIO
-
PX-780/820 DMR digital two way radio
-
professional dPMR radio OEM PX-680D 5w IP66 digital 4FSK modulation digital encryption compatible analog
-
dPMR radio PX-680D IP66 6.25khz FDMA system
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM PX | |
| Model Number | PX-820 | Type | Handheld | |
| Dimensions | 113.5x54x33.5mm | Frequency Range | 136-174/400-470/450-512MHz | |
| Storage Channel | 1000 | Talk Range | 5-7km |
Product Description
| General | |
| dust-protection and water resistant | IP67 |
| Frequency Range | 136-174MHz /400-470MHz /customized |
| Channel Capacity | 1000/customized |
| antenna impedance | 50Ω |
| Operating Voltage | 7.4V DC |
| Operating Temperature | -30°C +60°C |
| Battery Life in 5/5/90 operating mode | 1700mAh standard Li-ion battery analog:10hours,digital:14hours |
| Size not including antenna | 113.5mm×54mm×33.5mm |
| Weight with battery, antenna | 270G |
| Transmitter | |
| channel spacing | 12.5khz |
| frequency stability | +/-1ppm |
| Output Power | low power:1W high power:4w |
| hum and noise | -40dB( F1512.5khz) |
| conducted,radiated spurious emission | -36dBm at <1Ghz,-30dBm at >1Ghz |
| adjacent channel power | -60dB at 12.5khz |
| ajacent transient channel power | -50dB at 12.5KHZ |
| FM modulation mode | 12.5khz:11K0F3E |
| 4FSK digital mode | 12.5khz(data only):7K60FXD 12.5khz(data+voice):7K60FXE |
| modulation maximum deviation | 2.5khz at 12.5khz |
| nonactive slot power | -57dBm |
| audio response | +1dB--3dB |
| audio distortion | 3%(type) |
| digital protocol | ETSI TS 102 361-1,-2,-3 |
| vocoder type | AMBE+2TM |
| Receiver | |
| channel spacing | 12.5khz |
| frequency stability | +/-1ppm |
| analog sensitivity | 0.35μV/-116dBm(20dB SINAD)0.22μV/-120dBm(type) |
| digital sensitivity | 0.3μV/-117.4dBm(BER 5%)0.7μV/-110dBm(BER1%) |
| intermodulation | TIA603C:70dB ETSI:65dB |
| Adjacent Channel Selectivity | TIA603C:65dB at 12.5khz ETSI:60dB at 12.5khz |
| co-channel rejection | 12dB at 12.5KHZ |
| spurious response rejection | TIA603C:75dB ETSI:70dB |
| conducted spurious emission | -57dBm at <1GHz,-47dBm at >1GHz |
| blocking | 84dB |
| rated audio power | 1w |
| audio response | +1dB--3dB |
| rated audio distortion | 3%(type) |
| OEM/ODM | support imprint your logo on products |
| Warranty | 1year for radio,6monthes for battery |
| shipment | FedEx/DHL/UPS 3-5days EMS/TNT 5-8days Hon Kong Post Air Parcel takes 7-30days |
