Tagore TG180S body paint airbrush kit

Tagore TG180S body paint airbrush kit

Features:

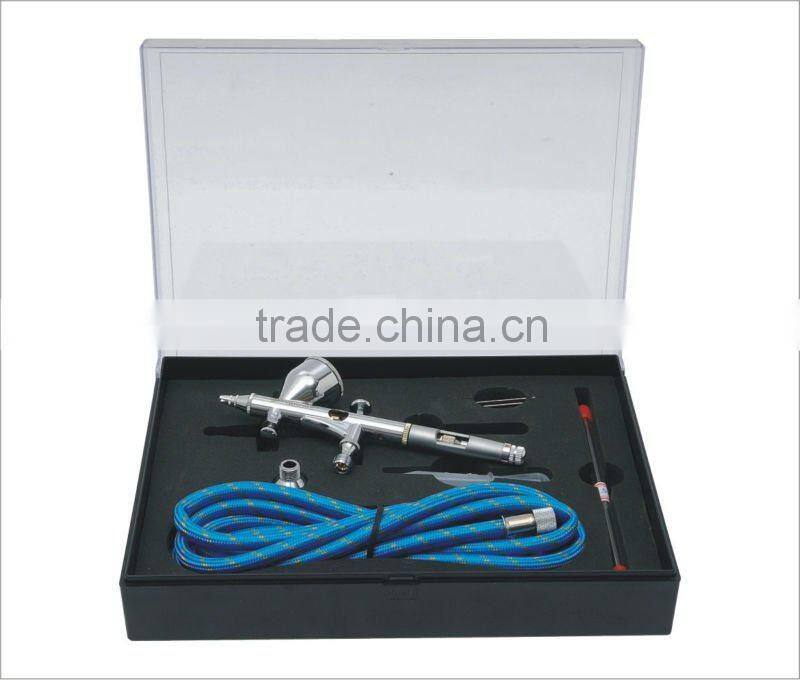

The TG180S double action gravity feed airbrush (0.2mm nozzle) also comes in a kit form. This money saving kit comes supplied with a hose and a separate 0.3mm needle/nozzle headset.

Specification:

Packaging:

Maintenance:

Intermediate cleaning: spray out the paint, dissolve/loosen residue using water and /or a suitable cleaning agent and brushes/cotton buds, spraying it out subsequent to this.

Thorough cleaning (prior to longer working breaks): a. Terminate the compressed air supply. Unscrew the end piece and needle securing nut; b. Pull out the needle and clean with a cloth and cleaning agent. Check the needle tip for deformation; c. Unscrew the needle cap and clean with a cotton bud; d. Remove the nozzle and push any paint residue carefully out of the interior with a fine brush or needle. Check the nozzle and seal for cracks or deformation; e. Insert the nozzle into the air head and screw into position. Press the lever down and insert the needle carefully up to the stop. Screw the needle securing nut and end piece into position.

Further maintenance instructions:
Never immerse the entire instrument in solvent. A little thinned oil should be applied accationally to the lever mechanism. Keep the needle tip and nozzle free of oil and grease, as this can influence the spraying characteristics. The needle, nozzle and seals are components subject to wear and should be replaced when necessary. Nozzle sets and flow cups are available in different sizes to facilitate conversion.

Warranty:

All of our products comes with one year warranty from the date of purchase. Any product that is found to be defective in material, workmanship or worn to be not usable will be repaired or replaced at our expense. This warranty does not cover any damage caused by negligence, accident, misuse or units which have been abused or altered in any way. No other warranty is expressed or implied.

Fore more choice and detailed specification, please visit our website and download our E-catalogue. If any question, please feel free to contact us! We willl reply you immediately!
