Flexible Aluminum Double Plate Clamp Type Disc Coupling Double Diaphragm Coupling
- Shanghai
 - Credit Card PayPal

You May Like
-


Disc Flexible Coupling High Pressure Shaft Steel Coupling
 -


Aluminum Double Disc Springs Clamp Type Flexible Coupling
 -


Aluminum Clamp Type Flexible Coupling Disc Couplings Shaft Couplings
 -


Flexible Steel Couplings Diaphragm Coupling Clamp Type Spring Coupling
 -


Aluminum Flexible Single Steel Disc Couplings Diaphragm Shaft Coupling Clamp Type
 -


Flexible Single Steel Disc Couplings Diaphragm Coupling Clamp Type Shaft Coupling

Product Details
| Structure | Disc | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Aluminium | |
| Brand Name | CMT | Place of Origin | Jiangsu, China | |
| Model Number | TLK1-104DE |
Product Description
Flexible Aluminum Double plate clamp type disc coupling double diaphragm coupling
| Hub | Aluminum alloy Anodizing treatment  |
| Disc | SUS304 |
Some couplings can be made of stainless steel, please contact us.
- This is a disc type flexible coupling
 - Clamp type
 - High Torsional Stiffness, High Torque, Zero Backlash
 - Indentical clockwise and anti-clockwise rotational characteristics
 - The double stainless steel disks compensate angular misalignments and shaft end-play
 - Applicable for servo motor



Points for Attention:
a) All products come with inside hexagonal bolt.
b) Recommended tolerance for shaft diameter is h7.
c) Bore and keyway modifications are available on request., please contact us.
d) Inertia moment and weight calculated based on the maximum shaft bore.

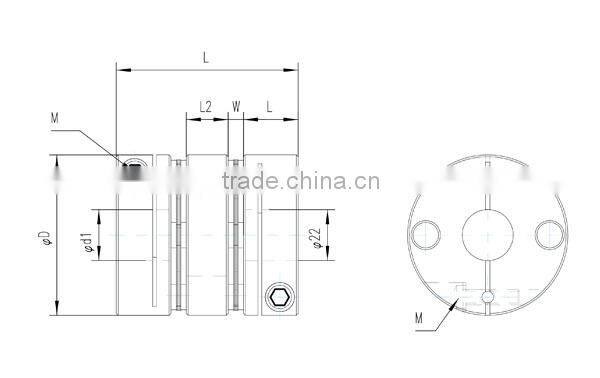

| S | TLK1 | 104 | D | E | 30 | 45 | ||||
| Stainless Steel | Series Number | Outside Diameter | Double Disc | Type | d1 Bore | d2 Bore | ||||
