Meter Sequence Tester LED Field Mastech MS5900 3 Motor Phase Rotation Indicator

Specifications

Brief Description

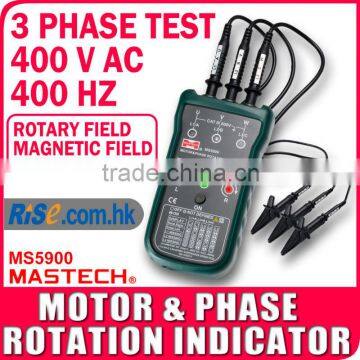

This Professional Motor & Phase Rotation Indicator (MS5900) is manufactured by MASTECH which is one of the largest and most well-known manufacturers of high quality electronic measuring instruments. It is handy and designed to detect the rotary field of three phase systems and determine motor rotation direction. The result will be shown by the LED indicators on the panel quickly and clearly.

This device can be used to determine rotary field by contact or non-contact modes. In addition, it can be used to perform motor test, determine motor connection and detect magnetic field. It is widely used in car industries, manufacturing and maintenance of electrical appliances and machineries involving motors.

Features

• 4 main functions: rotary field direction, non-contact rotary field indication, motor connection & magnetic field detection
• Indicate phase orientation (Clockwise or anticlockwise)
• Fast and accurate measurement
• With simultaneous indications via LEDs
• Portable and compact design
• Battery operated (not included)


Specifications

• Max. Operation Voltage: 400V AC for all ranges
• Normal Test Voltage: 1 ~ 400V AC
• Normal Voltage Phase Indication: 120 ~ 400V AC
• Protection Level: CAT III, 600V
• Current Consumption: Max. 20mA
• Frequency Range: 2 ~ 400 Hz
• Test Currents: Less than 3.5mA
• Protection Type: IP40
• Pollution Degree: 2
• Operating Altitude: 2000m
• Operating Temperature: 0 ~ 40 °C ( 32 ~ 104  °F)
• Battery supply: 6F22/9V (Not Included)
• Item dimension: approx. 124 x 61 x 27mm (4.9 x 2.4 x 1.1 inch)
• Item weight: approx. 150g ( 5.29oz)

One Set Included

• 1 x Main unit
• 3 x Test leads
• 3 x Alligator clips
• 1 x Black Carrying Bag
• 1 x Instruction Manual
• Standard factory package
