Home > Products > copper > Copper Clad Laminate Sheet, Aluminium based copper clad laminate sheet for led light, FR4 epoxy glass sheet

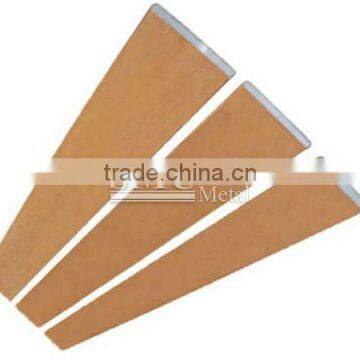

Copper Clad Laminate Sheet, Aluminium based copper clad laminate sheet for led light, FR4 epoxy glass sheet
USD $8,000 - $10,000
/ Short Ton
1 Short Ton(Min.Order)
- 200 Ton / Tons per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Brass Profile(Brass Profile for Decoration ) , Accept customization
-
molybdenum plate and sheet
-
Beryllium Copper Sheet, Beryllium bronze sheet C17200, C17000, Top ALB supplier C17500 Cobalt Beryllium Copper sheet
-
Silicon Bronze Sheet
-
copper mould plate C18150 C10700 C18200
-
copper mould plate sheet CuCrZr Plate
Product Details
| Place of Origin | Shanghai, China | Brand Name | SMC | |
| Model Number | clad | Usage | Outdoor | |
| Surface Treatment | Brushed |
Product Description
Specifications of Copper Clad Laminate Sheet :
SMC has a world-leading automated production lines, we can produce more than 100 kinds of Copper Clad Aluminum Busbars , or according to customer requirements for non-standard products.1)Width: 8mm-2400mm
2)Thickness: 0.20mm-320mm
3)Volum ratio:copper20%,aluminum80%
4)Standard:DL/T247
5)Material:T2 copper -copper content ≥ 99.95%
1070 aluminum--aluminum content ≥ 99.85%
6)Temper:hard,soft,semi-hard
| Object | Parameter |
| Valume ratio | 20:80 |
| Weight ratio | 45:55 |
| Density(g/cm3) | 3.94 |
| DC resistance(Ωmm2/m) | ≤0.02488 |
| Tensile strength(N/mm2) | ≥110 |
| Elongation(%) | ≥7 |
| Interface bonding strength (mpa) | >40 |
Features for Copper Clad Laminate Sheet :
1. High bonding strength
2. deep-processed:bending, drilling and stamping
3. Reliable service life
4. High conductivity
5. Cost-saving
2. deep-processed:bending, drilling and stamping
3. Reliable service life
4. High conductivity
5. Cost-saving
Applications for Copper Clad Laminate Sheet :
1 Conductive materials
1) contact washer
2) conductive connection plate
3) high and low-voltage power distribution unit
2 Thermal conduction materials
1) container plate
2) heat resistant tableware
3) sorts of heat radiators
3 Decoration materials
1) curtain wall
2) copper door
3) etching
etc.
1) contact washer
2) conductive connection plate
3) high and low-voltage power distribution unit
2 Thermal conduction materials
1) container plate
2) heat resistant tableware
3) sorts of heat radiators
3 Decoration materials
1) curtain wall
2) copper door
3) etching
etc.
