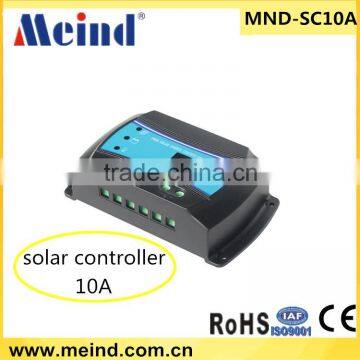

PWM solar charge controller ,MND-SC -10A

PWM solar charge controller  12V  10A

Specifications

PWM solar charge controller
1,12V/24V,automatic recognition
2,CE,ROSH
3,PWM Solar Charge Controller,solar system controller

  PWM solar charge controller  12V 10A

Solar Charge Controllers,solar system controller

solar controllers, solar controller, solar intelligent controller, solar charge controller, solar power controller.charge controller,SML, power solar controller, solar charger controller, intelligent controller, off-grid charge controller

Function:

1.Battery State-of-Charge display with 3 LEDs.
2.Acoustic load disconnect pre-warning.
3.PWM-regulation (series type).
4.Boost, Equal ize and Float charging, also for VRLA.
5.Automatic 12/24 Volt detection.
6.Integrated temperature compensation.
7.Large terminals (up to 16mm2 wire size).
8.SOC and voltage control led LVD.
9.Fully electronical ly protected.

The  SML  series  is  a  sophisticated  solar  charge  controller  family  for  low  cost
appl ications.The electronic circui t is equipped with a microcontrol ler that provides
high-efficiency charging  technology  together with a number of outstanding
status display, warning and safety functions.
The  temperature-compensated  three-stage  PWM  charging  method  (boost -
equalizat ionfloat ) is now adjustable to sealed and vented lead-acid batteries.
The  new  version  al so  allows  an  either   SOC  or   voltage  cont rolled  low
voltage disconnect function. The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low
vol tage load disconnect pre-warning feature.

Model                          SML05  SML08  SML10  SML15  SML20
Max. module current     5A         8A        10A         15A      20A
Max. load current           5A         8A        10A         15A      20A
System voltage                                    12V/24V
Self power consumption                     <4mA
Dimensions(W×H×D)                  80*100*32mm
Type of protection                                   IP22
