power inverter 100w 12v 220v Car Inverter

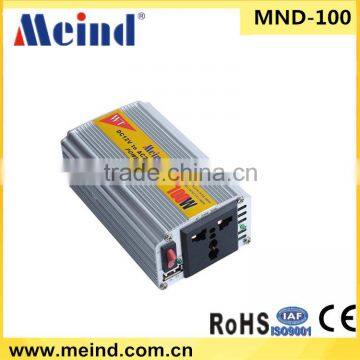

Meind modified  sine wave  car power inverter  supply,DC12V TO AC 220V 100W(MND-8200)

Meind Power Inverter widely use in the car, on the boat, transfer 12V DC power directly to 110V or 220V AC power for supplying the Laptop computers, camera, cell phones, camcorders, televisions, electric shaver, car refrigerator and other electronic devices when outdoor for tour, camping and medical treatment.

The power inverter has advantages of Compact and light weight, practical and prefect modeling, and its self-supplied auto cigarette lighter plug can easily connect to a vehicle's battery. you can get 220v (110V) AC direct from the car power inverter output socket.

1)Input Voltage:DC12V(10—15V)

2)Output Voltage:AC220V(AC100V,AC110V,AC120V,AC240V)

3) Continuous Power output: 100W

4)Peak Power:200W

5)Output Wave form:Modified  Sine Wave

6)Frequency output:50Hz,(60Hz) ±4%

7)Availability Power:   ≥90%

8) LOW Voltage Range:DC10.5V

9) High Voltage Range: >DC14.8V

10) No Load current: ≤0.3A

11) Soft-Switch Function: Yes

12) Short-Circuit Protection: Yes

13) Reverse Protection: Yes (+/ -)

14) Over-Load Protection: >100W

15) High-Temperature Protection: >70℃ will turn off, and re-boot < 45℃

16) High-Voltage Protection: DC16V±1V

17) Low-Voltage Protection: DC10.5V±0.5V

18) Auto Reboot Function: Yes

19) Fuse: Built-In 1X20A

20) Cooling Fan: Yes( Automatic: when temperature>45℃, will auto-start to cooling, and after <40℃ will off)

21) USB port output current: 5V 1A

[Product Protections]

[1]Over Load Protection:

When connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.

[2]Over Heat Protection:

As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.

[3]High-Voltage Protectionion:

When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note when there may be damage to the machine.

[4]Low-Voltage Protection:

When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.

[5]Short Circuit Protection:

When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.

[Multitudinous Output Socket]

1. Packing:                    Gift Box

2. CTN                           100pcs

3. (cm)/Dimension      51*38.8*38CM

4. Weight:                     0.12kg

5. Net weight (N.W)     14.0kg

6. Gross weight (G.W)    16.0kg

Product  Pcitures:
