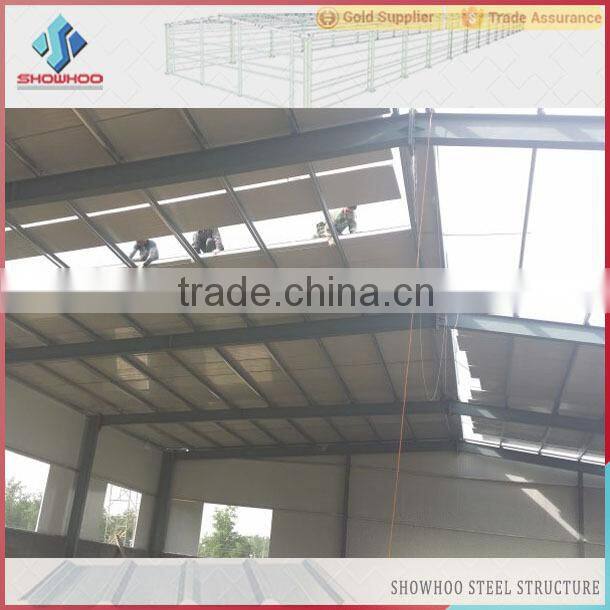

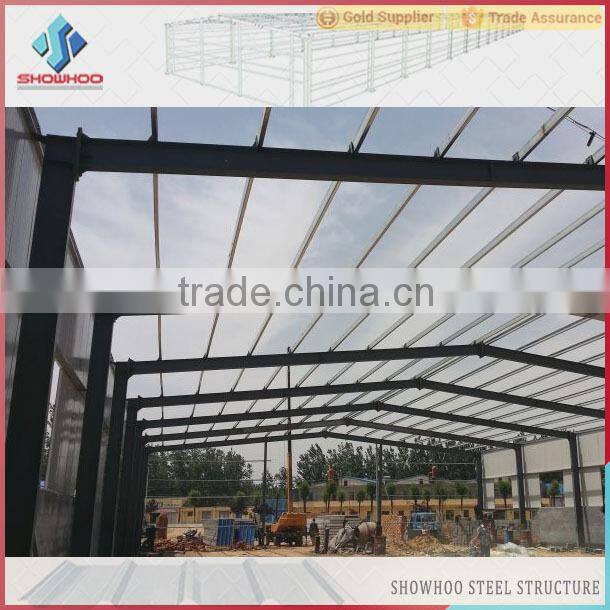

Construction Design Steel Frme Two Story Steel Structure Warehouse

column and beam

material q345 H section steel ( painted or galvanized)

wall&roof purlin

c or z section steel, size from c120~C320, z100~Z200

wall&roof panel

colorful corrugated steel sheet ,sandwich panels with eps, rockwool, fiber glass, pu etc.

supporting

steel angle, steel pipe, steel round.

gutter

steel sheet or galvanized steel sheet

rainspout

pvc pipe

door

sliding sandwich panel door or rolling metal door

window

pvc or aluminum alloy windows

accessory

anchor bolt,high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc.

Multi-application

Workshop, warehouse, storage, chicken house, hangar, garage, etc.

Installation

fast build and easy install with the installation drawings. Also, we will

supply all technical support during installation and after-sale service

as per your require.

Wide span

single span or multiple spans, the max span clear distance is 36m, without

 middle columns.

Low cost

unit price range from FOB USD35 to USD70 per square meter

according to customer’s request.

service life

galvanized steel frame more than 50 years. painted steel frame more than

30 years

Other characteristics

environmental protection, stable structure, earthquake resistance, water

proofing, and energy saving

Size

Length* Width*Height (eave height)

Local climate

 wind speed(km/h),Snow load(kg/m2), rain load

Wall and Roof

Steel Sheet or Sandwich Panel (insulation material)?

Door and Windows

Size and Quantity? Sliding door or rolling door, aluminum or PVC windows?

Other needs

Gutter, Down Pipe, Skylight Panels, Fan?

Crane

if have, pls tell me the crane span, crane lift height, max lift capacity

Square meter price

From USD35-75. The price related to local climate, the building width, height, material, whether have crane, gutter or not, one floor or two floor etc.

installation

It's very easy to install the steel structure workshop in your local by the bolt to connecting, according to our installation drawings and 3D drawings. Also we will supply all technical support during installation and after-sale service.

Difference of sandwich panel and steel plate

sandwich panel have good insulation performance., rock wool and fiber glass sandwich panel also have good fireproof performance.

steel place have not the heat insulation and fireproof performance.
