professional 6 multi zones metal detector door HZ-300 best-selling access control system

Specifications

professional 6 multi zones metal detector door HZ-300 best-selling access control system

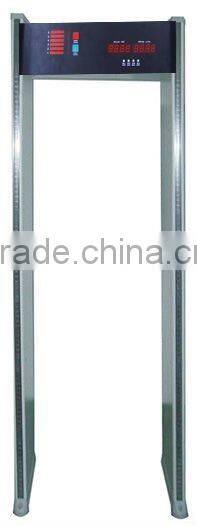

Metal detector door

 1) Airports, customs houses, ports, railroad or bus stations for safety check-up.

 2)Courts, police stations, prisons and so on for checking banned metals.

 3)Important sites, exhibition halls, business centers, celebration sites, stadiums etc for entrance check-up.

 4)Hardware, electronic, ornament, coinage and other important industries for preventing valuable articles from missing.

 5)Nightclubs, cinemas and theatres, ballrooms, song and dance halls, bars etc for checking dangerous materials.

 6)Banks, post offices, hospitals, public buildings, schools, and private houses for checking dangerous materials.

Operation and property

 1)Six detecting areas

Allocation of six mutual over-lapping detecting areas accurately ascertain the location of the metal articles.

 2) Instruction of alarm area

There is an instruction light in alarm area which point to the different height of a person on the mainframe box, and equipped sound, it is so clear at first sight that rapidly promote work efficiency.

 3)Strong anti-interference capability

 Digital circuit design prevents from missing alarm, and have strong anti-interferendce toouter surroundings

 4)Counting and statistic function

Intellectual rate of flow of passer and alarm counter can calculate the number of passer and alarm times.

Control Panel Adjustment

1)Instruction of diferent button:

“SELECT” button: A button that adjust various datas.“SETUP” button: A program button that can select every program.“ENTER” button: A button that confirm datas after adjustment .

“RESET” button: make statistic number of passer and alarm times return to zero; press the button to confirm directly after

2)sensitivity adjustment.

Firstly, press “SELECT” button, display panel will show “1234” this moment,“1234” is default password.

Secondly, press “ENTER” button, display panel will show “0000” this moment ; (When “0000” will be displayed, it shows that the password is correct ,and can enter into the next adjustment program; when “E000” will be displayed, it shows that the password is wrong, it needs to input the correct password.)

3)Password alteration:

When display panel shows “0000”, press “SELECT” button to change the location of the numbers, press “SETUP” button to input numbers .

After inputting the password you have set, press “ENTER” button, “d001” will be displayed, then press “ENTER” again, password setting will be done

4)Adjustment input alteration:

Press “SELECT” button, “1234” will be displayed, input the password you have set before, the input method is the same as the password wetting method.then pressing “ENTER” button,”0000” will be displayed.

After pressing “ENTER” button again , “d002” will be displayed, (“d002” means that alarm time is long or short; this moment “d002” stands for 2 second, recommendation setting. )

Press “SELECT” button, “10XX” will be displayed(“1” stands for the first area, “XX” stands for the sensitivity number value needs to adjust), press “SETUP” into the different area to adjustment, eg: “1085” stands for that the first area sensitivity is 85, it can detect the metal articles like one-yuan coin or smaller one. *recommendation setting.

Press “SELECT” button in order can enter into the next adjustment program, respectively from the second area to the eighth area, the adjustment method is the same as the first area.1. The number value from the first area to the sixth area are more and more big, sensitivities are more and more high.2. The number value of the seventh and eighth areas are more and more small, sensitivities are more and more high.

 Welcome sample order! If you want to add stainless steel bottom wheels for convenience, that is ok, please contact us for more details. Thanks!
