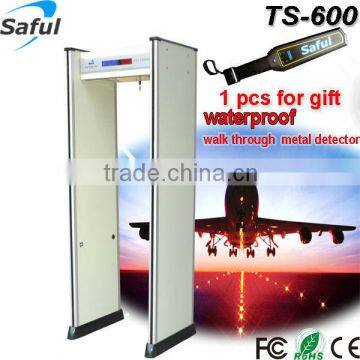

Anti interference Saving power Outside IP55 waterproof walk through metal detector with high sensitivity 0-299 level

 Walk through metal detector belonging to a fixed detector, also called the security gate, is mainly used to

1. Alarm display, LED lights can be ready to determine metal objects position on both sides of the door

 Power Supply: AC90V-250V 50HZ-60HZ
Power: <35W
Dimensions: 2230mm (H) '835mm (in width) '710mm (deep)
Channel dimensions: 2030mm (H) '700mm (W) '710mm (D)
Color: black, charcoal gray or other customers custom color
Weight:90kg
Operating environment: -20 ° C-+45 ° C

A. electrical reference EN60950 safety standards.

B. radiation reference EN50081-1 standard execution.

C. anti-interference reference EN50082-1.

D. strictly enforce the current through the metal detector national standards.

E. strictly enforce the ISO9001 quality management system.

The detection region

According to the basic structure of the human body detector gate is divided into 6 overlapping detection area, the use of mesh detection and single frequency excitation technique to eliminate the weak areas and blind spots in the detection area, sensitivity higher, more stable performance.

Alarm

Sound and light alarm, pitch speed can distinguish between metal object size,the alarm volume mode is suitable for different choice, by super bright LED alarm lamp can accurately display the body corresponding highly hiding prohibited items.

Waterproof design
Can be in the open air (the rain) to work properly, and do not need to cover

Regional Sensitivity
The maximum sensitivity can detect the metal content of the clip size of the object, in self-regulation between 0-255 sensitivity detection requirements to adjust the various bit
Transferred to an appropriate sensitivity, while also adjust the overall sensitivity. Pre-set metal objects weight, volume, size, location, and remove keys, jewelry, belt buckles and other false alarms.

Product Process
PVC synthetic materials and special process, waterproof luxurious appearance is more suitable for large-scale high places.

Smart Statistics
Intelligent traffic and alarm counting function, can automatically statisticians by the number and the number of alarm.

Anti-interference ability
Digital, analog, and left and right balanced technology to prevent false alarms and false negatives, and greatly improve the anti-jamming capability.

Safety protection
Double password protection, allowing only authorized personnel operation, the password needed to be modified and lost password recovery settings, and more secure. Parameter settings are automatically stored without uninterruptible power supply protection, safer and more convenient.

Electromagnetic radiation
EMC electromagnetic radiation standards, the use of weak magnetic field technology, a pacemaker wearer, pregnant women, floppy disks, film, video tapes and other sound.

Installation
This series metal detector with integrated design, installation or removal is completed in 20 minutes, were equipped with installation and commissioning Operating Instructions.

Field of use
Airport, venue, events, railway stations, docks, entertainment, prisons, courts, government departments, factories, examination room, shopping malls, community channel security check and prohibited items inspection areas.

 leg unit                 x 2

 We support OEM and ODM service, can print your logo according to your demand.
Rechargeable battery and stainless steel bottom wheels are not included in the package, but they are available if you have need. Please contact us for more details, thanks!
