Home > Products > Slew Drive > Winch spool drived by SE12 inch slewing drive on truck crane

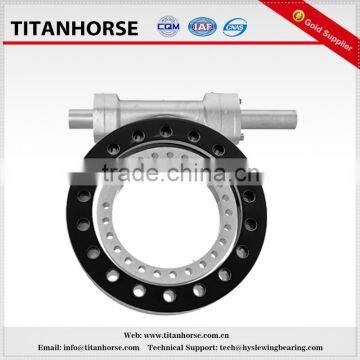

Winch spool drived by SE12 inch slewing drive on truck crane
US$ 200 - 1,000
/ Set
1 Set(Min. Order)
- China
- T/T Other
You May Like
-
9 Inch Slew Drive For Heavy Duty Motorised Antenna
-
9 Inch Single axis slewing drive for dish soalr tower type and trough solar power generation
-
Titanhorse SE9 Inch Single axis slewing drive for Parabolic Trough
-
9 Inch Single axis slewing drive for dish solar thermal power generation stirling motor
-
azimuth installation slewing drive with ac motor
-
SPI spur drive slewing drive
Product Details
| Brand Name | Titanhorse | Bore Size | 7, 25 | |
| Outside Diameter | 7, 25 | Model Number | A 12 | |
| Feature | Four Point Contact | Gear Options | External Gear Only | |
| Seals Type | Nitrile Rubber | Place of Origin | Beijing, China |
Product Description
Brief
- Own work-shop for slewing bearing and slewing drive 10000 sq.m
- Production Scale: 5000pcs/Month
- 5S management system to improve the worker efficiency and ensure the products quality
- 8 series of slewing drive can be provided by us, size range from 3 inch to 25 inch.
- Single axis slewing drive series, double axis slewing drive series, vertical slewing drive series, single worm slewing drive, double-worm slewing drive, open hoursing slewing drive, worm gear slewing drive, spur gear slewing drive.
- Slewing drive or slewing bearing's application:
- 1. Industrial usage, to achieve the goal that control and automatic ratation
- 2. Solar energy, its designed to improve the power generation efficiency
- Own the ability of designing customized solution for customer, OEM, please feel free to contact with your porjects.
- Certificated by ISO9001, ISO 14001, OHSAS 18001
Company Information
Production flow
Motor
| Brand | Titanhorse |
| Model | A12 (12 inch single axis slewing drive) |
| Rated Output Speed | 0.0385rpm |
| Rated Ouput Torque | 1029.6 N.m |
| Output Torque | |
| Tilting Moment Torque(Max.) | 54.3 kN.m |
| Holding Torque | 43 kN.m |
| Static Axial Load | 475 kN |
| Static Radial Load | |
| Dynamic Axial Load | |
| Dynamic Radial Load | 190 kN |
| Ratio Of Worm Gear | 78:1 |
| Tracking Precision | <0.17° |
| Application | solar tracker,CPV, PV,CSP, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc. |
| Motor | DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc. |
| Life-time | 25-30 years |
| Materials | 42Crmo/ 50Mn |
| Seal | Grease Seal |
| Colour | according to your requirements |
Product Uses
Contact US
Please feel free to contact us with your projects!
Contact Us
- Beijing Titanhorse Industry & Trading Co., Ltd.
- Contact nameWendy Dong Chat Now
- Phone86-10-63870478
- AddressRoom 5033, No. 9 Building, No. 16, Fengguan Road
