Foam Cement Brick Machine

                                 Foam Concrete Production Line /HUIOU

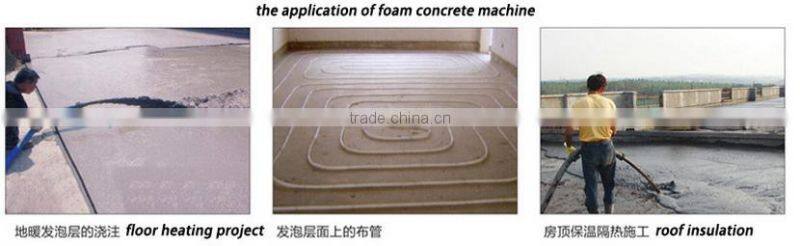

Application:

1. 1. Applied for insulating layer in floor heating constructions:the surface will flow smooth naturally and is an essential advanced equipment for floor heating construction.
   2. Applied for roof insulation constructions: the foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30 times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer.
   3. Can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material.
   4. Can be used in filling tunnel and mine internal voids, etc. And applied for insulation of low temperature cold store and refrigerated depot section.
   5. Applied in freezing prevention and temperature maintenance of pipeline

Features:

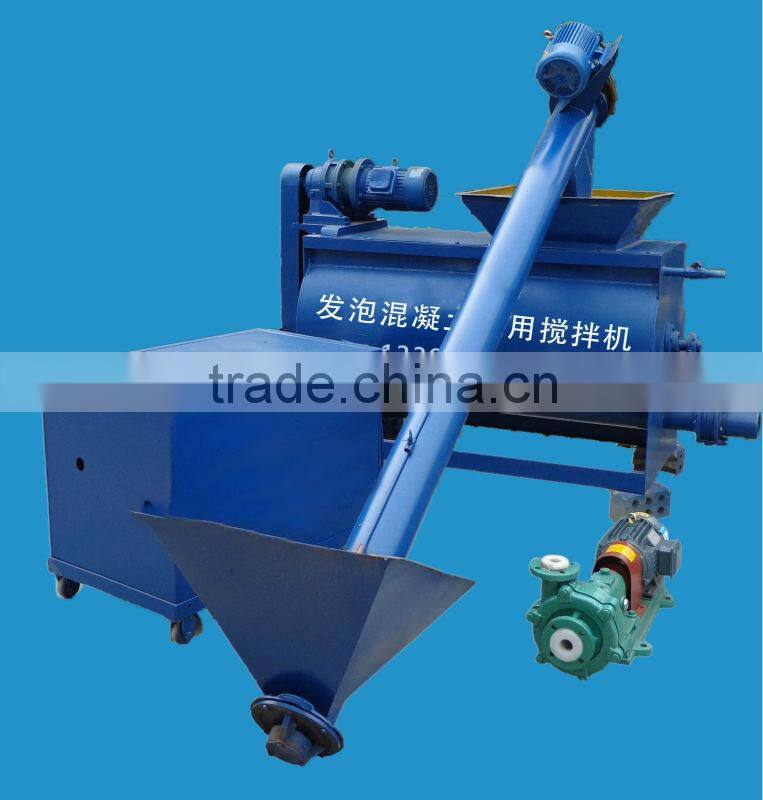

This is foam cement  insulation panel making machine.This production line is used to make foam cement blocks of different dimension.
This production line includes cement feeding machine, mixing machine, foaming machine and mortar pump. It's easy to operate with stable performance. Both the whole system or one part of the system are available.

1).the machines is  with wheels, then the process line is easy to move, so it can be used for many places, such as construction plant, block plant, and so on.

2).Light weight, the main machine is only 200kg, you also can equip with the forklift, it will save more time, labour and costLow consumption, the whole line is about 15kw.

 3).Use the pump to transport the cement foam

    It can use plant type foam agent, animal type foam agent and synthetic foam agent.

  You can adjust the volume of the raw material.

4)Both 220V voltage or 380V are OK for this machine.

5)Easy operating, One-button-start system makes it easy to operate this machine

Overview of this system:

It's obvious this system is very realiable.Of course,It's very efficient.

Working flow:

1.Cement,water and other additives were measured  automatically;

2.Mixer

3.Foaming

4.moulding

5.Carving up

6.Packing

mortar pump:

To ensure the whole system runs stably and effectively,we choose high quality mortar pump for every machine.

 Advantages of foam cement insulation panels made by our machine:

1.Foam cement insulation panel has an excellent soundproof ability.
2.High thermal insulation rating. It can keep indoor temperature in a proper range, reduceing air conditioning cost by 30%.

3.Earthquake Resistant
  Effect of earthquake on buildings is proportional to the weight of the building, as a result, foam cement insulation panel shows an excellent resistance to earthquake. Regions of high seismic like Japan exclusively use it.
4. Saving floor Space Area
Use of thinner blocks (6" instead of 9" exterior walls) because of its excellent water barrier & insulation properties leads to an increase in floor space area between 3-5%.

5. Cost saving

Being lightweight foam cement drastically reduces the dead weight of building, resulting into reduction of steel (up to 27%) and cement (up to 20%) structural cost saving. Being 8 times the size of a clay brick, foam cement wall construction involves 1/3 the joint, thus an overall mortar saving up to 66%.
Its automatic manufacturing process gives foam cement an exceptional dimensional accuracy & smooth surfaces, eliminating need of three-coat plaster walls and allows for a final 6 mm skim coat (putty/POP).
6. Fire Resistant
Best in class fire rating of 4 hours. The melting point of foam cement panel is over 1600 ºC, more than twice the typical temperature of building fire (about 650 ºC).

7. Water Barrier
Its structure does not allow capillary action, making it impervious to water. Its water barrier properties are further enhanced by adding cone based additives.
9. High Strength
High pressure steam-curing autoclaving process gives foam cement panel unbelievable strength, even higher than  M150 concrete.

Performance index of finished product:

 Application of the foam cement:
    Floor/roof casting
    Block
    Wall panel
    Framed wall and house structure casting
    Subway and coal mining backfill
