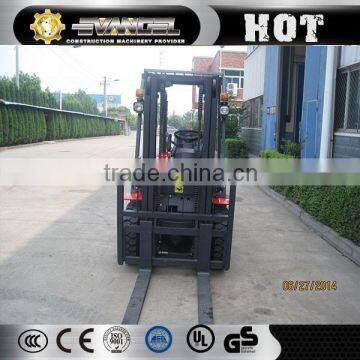

Manual hydraulic Forklift CPCD25 for sale in Dubai

FOB Price

US$ 11,000 - 12,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Model Number	CPCD25	Type	Powered Pallet Truck
Power Souce	DC Motor	Rated Loading Capacity	2.5ton
Max. Lifting Height	6000MM	Min. Lifting Height	3000MM
Fork Length	1070mm	Fork Width	125mm
Overall Dimensions	248011502120mm	Certification	CEO
After-sales Service Provided	Engineers available to service machinery overseas

Manual hydraulic Forklift CPCD25 for sale in Dubai

1. Engine with the advantage of super power, low exhaust, easy start, oil saving etc.

2. The chassis with a higher underground clearance

3. Luxury suspension damping seat

4. Advanced integral display instrument

5. Electric shifting system

5. Appearance in streamline design

Technical Data for CPCD25 Forklift
Speciality parameter	Model				Unit	CPCD25
	Power type					Diesel
	Rated capacity				kg	2500
	Load center			d	mm	500
	Lift height			h2	mm	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Wheel-base			L4	mm	1600
	Tread(front/rear)			b4/b5	mm	960/970
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand level
	Lift speed(with/without load)				mm/s	550/600
	Lower speed (with/without load)				mm/s	(with load)<600 (without load)>300
	Travel speed (with/without load)				km/h	18/19
	Max. gradeability (with load)				%	20
	Max. Towing (with/without load)				kN	17/13
	Weight Distribution with load(Front/rear)					5220/1000
	Weight Distribution without load(Front/rear)					1410/2310
		Model				C240
		Manufacturer
		Rated power			kw	34.5/2500
		Max. rotation			Nm/rpm	134/1800
		Displacement			L	2.369
	Battery	Voltage			V	12
	Battery	Capacity			Ah	100
	Gearbox	Transmission type				Hydraulic
	Gearbox	)Gears,speed (front/rear)				Ⅰ/Ⅰ
	Tire	type				Pneumatic tyre
		Model	Front			7.00-12-12PR
		Model	Rear			6.00-9-10PR
Others	Self.weight				kg	3540
	Free lift height			h4	mm	160
	Fork	Thickness×Width×Length		c×b×a	mm	40×125×1070
	Overall dimensions	Overall length(without forks)		L2	mm	2480
		Overall width		b1	mm	1150
		Overall height	Extended height(mast)	h1	mm	4030
			Lower height(mast)	h3	mm	2000
			Overhead guard	h7	mm	2120
	Min. turning radius			Wa	mm	2240
	Min. under ground clearance	Under mast		m1	mm	105
	Min. under ground clearance	Center of wheel-base		m2	mm	150
