Home > Products > Earthmoving Machinery > Low price XCMG XT870 7 ton chinese wheel backhoe loader

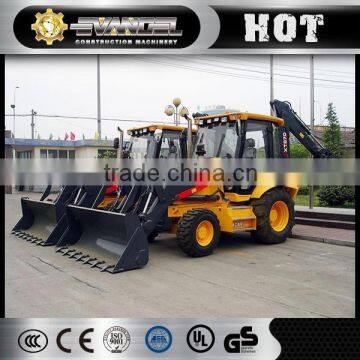

Low price XCMG XT870 7 ton chinese wheel backhoe loader

FOB Price

USD $48,000 - $540,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	XCMG
Model Number	XT870	Place of Origin	Jiangsu, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	717323663437mm	Rated Load	7300kg
Certification	ISO/CE	Warranty	one year
After-sales Service Provided	Overseas service center available

Product Description

Low price XCMG XT870 7 ton chinese wheel backhoe loader

Specifications

Description		Specifications	Unit
Working weight		7300	kg
Overall dimensions(LWH)		717323663437	mm
Max.travels speed		40.2/48.6	km/h
Wheel base		2152	mm
Turning radius		4428	mm
Tires(F/R)		12-16.5/19.5L-24
Working oil pump	Oil pump model	KP30.15
	Max travel speed	2200	r/min
	Rated pressure	21	Mpa
Engine	Rated power	74	kw
	Rated speed	2200	r/min
	Model	B4.5T
	Modality	4-cycle. Turbocharger.water cooled.4-cylinder
	Overall displacement	4.5	L
	Fuel consumption	225	g/kw.h
Loading installment	Bucket capacity(heaped)	0.8-12	m3
	Dumping clearance	2825	mm
	Dumping reach	727	mm
	Break-out force	42	KN
Excavation installment	Digger capacity	0.25-0.35	m3
	Max.digging depth	4495	mm
	Max.digging radium	5471	mm

Feature:

XT870 Backhoe Loader is a kind of the multi-functional engineering machinery incorporating excavating and loading into an organic whole. XT870 back loader adopts the advanced static hydraulic transmission and popular integral structure overseas with the following advantages the complete machine is rationally distributed and compact; it is attractive in appearance; it is comfortable and convenient to handle, the turning radius is small and the cost performance is high. XT870 backhoe loader is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy, the forest farm, the military project and so on. It also can be used in excavating, carrying and leveling and carry on the flexible and swift homework to scrap heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing a machine with multi-functions.

XT870 backhoe loader has the high power and good performance ability. The key parts such as the engine, the case, the bridge, the hydraulic system etc. adopt the import components, which have improved the dependability of the complete machine.

The stability of performance and traveling has been improved by means of the highest speed, the small turning radius and adoption of integral frame. In addition, single pump supports oil and the hydraulic steering system make the system artic pressure reach 21 Mpa, which has improved the performance ability of the complete machine. The highest speed reaches 40.2km/h, which has improved the production efficiency of the complete machine.

XT870 backhoe loader is easy and simple to handle. You can change the shelf in moving. The loader is operated by single pole and the digger operated by a pair of poles. The complete machine puts excavating as the focal point of performance, so it has obviously improved the excavating stability in structural design.

The whole day-lighting does driver's cabin is famished with the system of air conditioner, ROPS system. It is safe and comfortable and the visual field is broad. It adopts the sound insulation, the heat insulation and shock attenuation, uses the whole day-lighting driver's cabin which puts the system of the Fluorine-free air condition, which improved the comfortableness of the operating environment, guaranteed the clear visibility. It adopts the wholly tumbling.
