Plough Manufacturer
- Mumbai
- T/T L/C D/P D/A
You May Like
Product Details
| Type | Other, Agricultural Machinery | Power Type | Other | |
| Use | Tillage | Place of Origin | India | |
| Brand Name | BROHAWK, Brohawk Export | Model Number | BDP |
Product Description

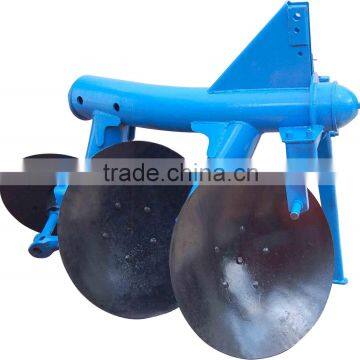

Description: - The disc plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soilmixing
. It is used to open the new fields and to process the stony areas.
. It can be used easily at rocky and rooted areas.
. It is especially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.
. Inconformity with the soil conditions it is being produced with 2-3 and 4 bottoms version with an option for extra kit for converting it to extra-bottom plough.
. It is directly mounted to the tractors.
. Extra heavy-duty pipe frame has high clearance allowing the plough to operate under heavy crop residue.
Specification:-
CODE | BDP-2 | BDP-3 | BDP-4 | BDP-5 | BDP-6 |
SIZE | 2 BOTTAM | 3 BOTTAM | 4 BOTTAM | 5 BOTTAM (4+1) | 6 BOTTOM (4+2) |
FRAME (OD 150 mm) | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame |
MOUNTED | CAT-II | CAT-II | CAT-II | CAT-II | CAT-II |
LENGTH | 1800 mm | 2400 mm | 3000 mm | 3600 mm | 4200 mm |
WIDTH | 820 mm | 1040 mm | 1260 mm | 1480 mm | 1700 mm |
HEIGHT | 1220 mm | 1220 mm | 1220 mm | 1220 mm | 1220 mm |
DISCS | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm |
DISC SPACING | 570 mm | 570 mm | 570 mm | 570 mm | 570 mm |
COLTER DISC | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm |
WEIGHT | 250 Kg (approx) | 35 Kg (approx) | 450 Kg (approx) | 560 Kg (approx) | 670Kg |
SCRAPPER | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable |
BEARINGS | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc |
WIDTH OF CUT | 500-550 mm | 875-925 mm | 1150-1200 mm | 1575-1625 mm | 1900-1950 mm |
WEIGHT | 230 Kg (approx) | 330 Kg (approx) | 430 Kg (approx) | 540 Kg (approx) | 650Kg |
TRACTOR (HP) | 45-50 | 60-65 | . 75-85 | 100-110 | Above 110 |
