1.5 inch pvc flexible hose
- 500 Kilogram / Kilograms per Month
- Qingdao
- T/T
You May Like
-
Transparent High Pressure Steel Wire Braid Hose
-
PVC Steel Wire Helix Hose Reinforced
-
pvc stainless steel wire braiding flexible hose
-
Best Competitive Price PVC stainless steel wire braided hose
-
flexible transparent PVC spring hose / PVC steel wire hose
-
PVC steel wire hose/ water suction hose/ PVC steel wire helix hose
Product Details
| Place of Origin | Shandong, China | Brand Name | Alice | |
| Model Number | 6mm-75mm | Material | PVC | |
| Specification | 6mm-75mm | Length | 30m-100m | |
| Thickness | client's requirements or factory standard | Standard | ISO SGS TUV |
Product Description
Specifications
1.1.5 inch pvc flexible hose2.Factory,manufacturer
3.non-toxic,without odor ,light
4.High pressure,flexibility
1.5 inch hose

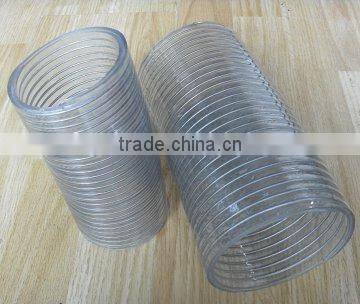

This plastic flexible hose,transparent and non poison has steel wire screwly inserted in the PVC body.
PVC Steel Wire Spiral Reinforced Hose
CHARACTERISTICS&APPLICATIONS:
This plastic flexible hose,transparent and non poison has steel wire screwly inserted in the PVC body. It fits to the temperature range from -5°C to 65°C. The hose is transparent and has good cold and hot resistance. It can be widely used in sanitary foodstuff industry. To be used for drawing and conveying, oil and powder in factory agriculture,building.
STANDARD SIZES OF PVC STEEL WIRE STRENGTHEN HOSE:
| British | Metic Measurement | Working | Bursting | Pressure | Weight | Volume | ||
| Measurement | Id | OD | Length | Pressure | At20°C | At60°C | ||
| Inch | MM±0.2 | M | (Bar) | Bar | Bar | Kg/Roll | m³/Roll | |
| 1/4 | 6 | 11 | 100 | 8 | 70 | 16 | 11 | 0.036 |
| 5/16 | 8 | 13 | 100 | 8 | 60 | 16 | 14 | 0.046 |
| 3/8 | 9 | 15 | 100 | 8 | 55 | 15 | 18 | 0.053 |
| 1/2 | 12 | 18 | 100 | 6 | 40 | 15 | 22.0 | 0.068 |
| 5/8 | 15 | 22 | 100 | 6 | 35 | 13 | 31.0 | 0.096 |
| 3/4 | 19 | 26 | 50 | 5 | 30 | 12 | 19 | 0.073 |
| 1 | 25 | 33 | 50 | 4 | 25 | 10 | 27.5 | 0.096 |
| 1-1/4 | 32 | 41 | 40 | 4 | 20 | 9 | 31.6 | 0.125 |
| 1-1/2 | 38 | 48 | 40 | 4 | 18 | 8 | 40.5 | 0.165 |
| 1-3/4 | 45 | 56 | 40 | 4 | 17 | 8 | 53.5 | 0.305 |
| 1-7/8 | 48 | 59 | 40 | 4 | 16 | 7 | 56 | 0.315 |
| 2 | 50 | 62 | 40 | 4 | 16 | 7 | 63 | 0.318 |
| 2-3/8 | 60 | 74 | 30 | 4 | 15 | 7 | 67 | 0.295 |
| 2-1/2 | 63 | 80 | 20 | 4 | 15 | 5 | 57.5 | 0.263 |
| 3 | 75 | 92 | 20 | 4 | 13 | 5 | 66.8 | 0.337 |
| 3-1/2 | 90 | 108 | 10 | 4 | 12 | 5 | 42 | 0.384 |
| 4 | 100 | 118 | 10 | 3.5 | 10 | 5 | 48 | 0.400 |
| 5 | 127 | 143 | 10 | 3.5 | 10 | 5 | 52 | 0.420 |
| 6 | 152 | 168 | 10 | 3.5 | 10 | 5 | 62 | 0.430 |

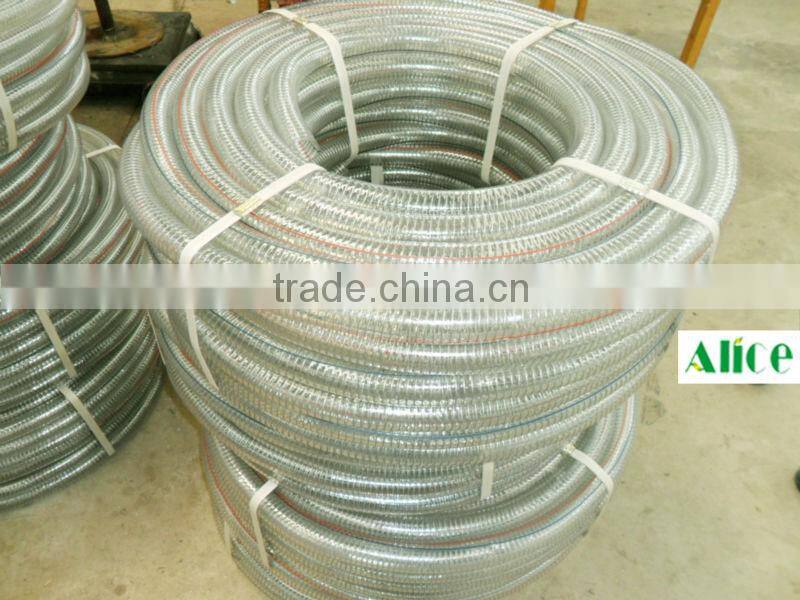

DETAILS OF PVC STEELWIRE REINFORCED HOSE
Dear friends ,if you are interested in our products,please contact me
FAQ
1,What is your MOQ?
Our MOQ is usually 500KG
2,What is your delievery time?
The time of delievery is 10-20 days.
3,What is the shipping port?
We ship the goods via qingdao port.
4,What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment. or L/C
5,How should I contact you?
Address :West of culture road,north of north outer ring road,Changle County ,Shandong Province ,China
MSN:alexbu1988
QQ:906085917
Mob:+86-15265644683
Web:
6,What is the location of your company?
Our company is located in the Weifang Shandong Province,China.If you would
like to have a visit, you are much welcome.
7,What is your main products?
Our main products are all kinds of pvc hose,including PVC Layflat Hose,PVC twin-welding Hose,PVC Fiber Hose,PVC Garden Hose ,PVC Suction Hose ,Plastic Machine and also we offer OEM services.
8,How about the samples?
We could send you the samples ,the samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
