PAX S90 Card Skimmer

Specifications

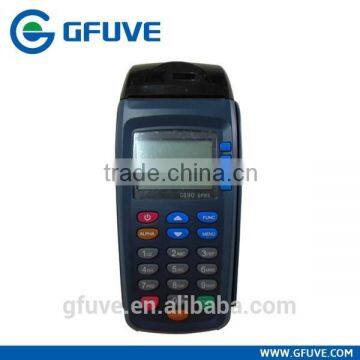

PAX s90 card skimmer

S90 mobile POS terminal has been designed to offer superior wireless performance, embedded in a ruggedized yet stylish form factor. With options for single SIM or dual SIM functionality, and with a high capacity Li-lon rechargeable battery, the GS90 is one of the most popular mobile terminals for merchants today.

The S90 is PCI certified and delivers secure transactions with a state of the art 32-bit processor to support DUKPT, Master / Session, DES, 3DES.

The ARM11 microprocessor assures faster, reliable transactions anywhere and every time. It offers an unparalleled array of wireless connectivity configurations (GPRS, CDMA, WCDMA).

FEATURES

Large memory capacity

Large, white backlit display

High-speed thermal printer

Multi-application support

Large capacity battery

Dual SIM functionality

SPECIFICATIONS

Processor

32-bit  ARM11

Memory

standard: 192MB (128MB Flash, 64MB DDR)

Display

128 pixel x 64 pixel LCD
White backlit

Keypad

10 numeric keys & 8 function keys

4 ATM keys, 1 power ON / OFF key

Printer

Thermal graphic printer, Speed: 18 lines / second
Standard paper roll: 58mm (2.25 in.)

Magnetic Card Reader

Track 1 / 2 / 3, bi-directional, ISO7812

Smart Card Reader
1 user card, EMV

Contactless Card Reader (optional, built in)

MasterCard PayPass

ISO / IEC14443 Type A/B, Mifare® Compliant

Maximum effective distance up to 4cm

4 RF Indicators: Red, Yellow, Blue, Green

Bar Code Reader(optional)

1 D bar code scanner

Card Slots

2 SAM Slots, ISO7816

2 SIM card slot

Communication

Wireless: GPRS or 3G(WCDMA)

Modem (optional)

Sync. (HDLC up to 9600bps)

Async. (V.32 / V.32bis, up to 14400bps)

 Peripheral Ports
1 x RS232,  1 x Line, 1 x mini USB(OTG), 1 x power charge

Security

PCI PTS 3 x approved

DUKPT, Master / Session, DES, 3DES
ANSI / ISO9564 format 0, 1, 3
PIN ciphered key algorithm
ANSI X9.9 / X9.19 MAC algorithm

Battery

Li-ion battery, 1800mAh, 7.4V

Environmental

0°C to 50° C (32°F to 122° F) operating temperature

-20°C to 70° C (-4°F to 158° F) storage temperature

10% to 90% relative humidity, non-condensing

Voltage

Input: 100~240VAC, 50Hz / 60Hz, 1.0A

Output: 9.5VDC, 4A

Physical

Length: 199mm

Width: 87mm

Height: 61.5mm

Weight

504g

Accessories (optional)

Leather Casing, Charging Dock, Car Jack Charger

Certifications

PCI PTX 3.X

MasterCard PayPass

Visa payWave

EMV(Level1 & Level2)

PBOC

qPBOC

Supplied  Place :   Argentina ,  Uruguay  ,  Paraguay, Surinam
