S900 3G Payment Terminal

Specifications

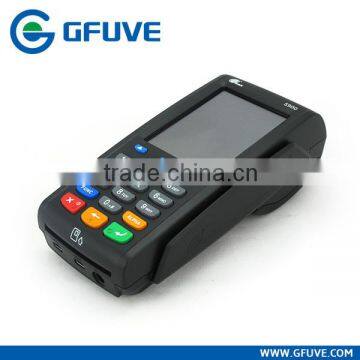

    S900 Handheld Mobile Payment Terminal

S900 is the world’s most innovative wireless mobile payment terminal based on a secure and flexible Linux operating platform.

Combining a wide choice of connectivity options along with long-lasting battery performance, The S900 features inbuit NFC capability to accept mobile and contactless transactions, a large colour touch screen, a 32-bit ARM11 processor and massive amounts of memory via Micro SCD for exceptional multimedia performance such as video advertising.

Powered by PAX Prolin, the POS operating system based on Linux, this platform supports rapid development of customized and secure software applications that give new meaning to the concept of payment and other value-added services.

Features

High Reliability & Exceptional Performance

400MHz 32-bit ARM11 processor

Multiple connectivity options:GPRS/WCDMA/EVDO

Built-in contactless / NFC

Advanced DDR  & SDRAM technology

Sleek compact design with concealed thermal printer

High capacity Li-ion rechargeable battery

Supports e-Signature functionality

Multimedia performance

Loudspeaker

Large colour  touch screen display

Supports HD images and video

Open & flexible operating system

Secure Prolin Linux platform

Easy software application development

User-friendlu interface with powerful GUI

Multi-task OS maintains application integrity

Plug-and-Play to extend functionality on-site

Unprecedented Security

PCI PTS 3.x approved

Secure embedded area for keys, self-destruct mechanism if attached

Supports RSA, AES, DES, #DES

Supports HASH function

Suppots DUKPT, MK/SK, FIXED KEY

SPECIFICATIONS

Processor

32-bit ARM11

Memory

192MB(128MB Flash, 64MB DDR)

Display

3.5 inch color TFT LCD

Printer

Thermal graphic printer

High-speed thermal printer (18 lps)

Paper roll width 58m diameter(standard)

Keypad

10 numeric & 5 function keys

Back-lighting

Magnetic card reader

 Triple track(Track1 / 2 / 3),

 Bi-directional

Smart card reader

EMV 4.3

Contactless card reader

MasterCard PayPass 3.0 & Visa payWave

13.56MHz, ISO14443, Type A / B, Mifare, Felica, NFC

Maximum effective distance up to 4cm

Communication

GPRS

WCDMA/EVDO(optional)

Dual-SIM GPRS(optional)

Vedio

Speaker 100dB

Card slots

 2 SAM slots, ISO7816

1 SIM card

Peripheral Ports

1 Multi-function port(USB OTG+RS232)

1´ powerful charge

1´ base station port

Security

DUKPT, Master/session, DES, 3DES

ANSI /ISO9564 format 0, 1, 3

PIN ciphered key algorithm

ANSI ´9.9/ ´9.19 MAC algorithm

Environmental

0°C ~ 50°C  (32°F ~122°F) operating temperature

-20°C ~ 70°C  (-4°F ~158°F) storage temperature

 10% ~ 90% relative humidity, non-condensing

Voltage

Battery, 7.4V, 1850mAH, Li-ion

Input: 100 - 240V AC, 50/60 Hz, 1A

Output: 9V, 2.5A

Adapter & base

Physical (L x W x H)

175mm x 82mm x 63mm

Weight

458g with battery

Certifications

PCI PTX 3.X

EMV 4.3

MasterCard PayPass3.0

Visa payWave
