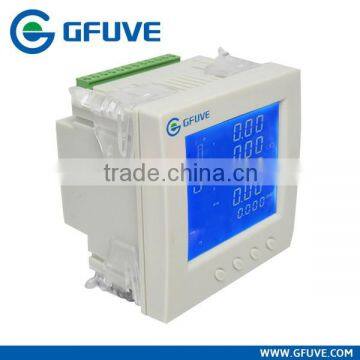

FU2200A is a digital power meter, It can measure and display all the electrics parameters as well as harmonics content, Four modules can be plugged-in together: RS-485 communications, digital input/output, energy pulse, and DC 4~20mA analog output, So as to meet all kinds of demands.

Measurement Parameters

Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q) ; Apparent Power(S), 3~19^th harmonics

Harmonics

Total harmonics content of phase-voltage

Total harmonics content of current

3rd~19th harmonics content of Phase-Voltage (RS485 output)

3rd~19th harmonics content of current (RS485 output)

Maximum Value

Max. value for voltage/current

Max. value for active power

Max. value for reative power

Max. value for apparent power

Computation

Forward active power energy

Reverse active power energy

Forward active power energy

Reverse reactive power energy

Measuring Range

30~600V, 0~6A, 45~65Hz, -1~0~1

Measuring Accuracy

Display

Wide screen angle, Light blue back-lit LCD Display, 5 Displays figures. 6 operation keys.

Communication

RS-485 interface port support, 32 (128) Networking, ModBus-RTU communication protocol.

Energy Pulse (Expansion)

FM-E2 provides active & reactive energy pulse output.Pulse parameters can be choose, range:0.1~10000kWh/kvarh. Dry contact output (1A*100V).

Data Collection (Expansion)

Each FM-K2 module can be collected 2-ways of contacts and counting.

Control (Expansion module)

Each FM-K2 provides 2 relay outputs, which can be controlled by communication or the measured parameters.

Analog Output (Expansion module)

Each FM-A20 module provides 2 ways of DC 4~20mA output, It can be set the function-relations about parameters.

Connection Mode

3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W.

Programmable

Measuring System : 3P4W/3P3W etc.

Transformation Ratio : PT,CT.

Communication:

Address: 1~247; Baud: 1200~19200; Parity Bit: N/E/O

Energy: Reset

Dimension

Mounting Panel:96 X 96mm

Thickness:20mm

Depth:60mm (without expansion module)

          80mm (without expansion module)

Mounting

Panel Mounting

Trepanning: 92 X 92mm

Power Supply (AC/DC)

AC85~265V / DC85~330V, DC18~90V (optional)

Power Consumption: <4VA

Working condition

Temperature: -25 ~ 55 °C

Humidity: 20% ~ 95%RH, Without condensation
