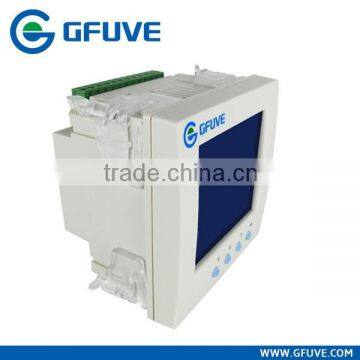

0.5 class 3p3w digital power meter data logger

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Port Beijing
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	GFUVE
Model Number	FU2200A	Measuring Current Range	0-6A
Measuring Voltage Range	0-800V	Accuracy Class	0.5, 0.5s
Operating Temperature	-25 to 55 °C	Dimensions	96 x 96 x 12.8mm

Product Description

FU2200A 0.5 class 3p3w digital power meter data logger,english version display,with fast delivery.

Product Description

Ethernet power meter FU2200A is a three-phase multifunction power and energy meters manufactured by GFUVE. These meters provide excellent value for monitoring power and energy management systems. It may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port running the Modbus RTU protocol. It has the PC software and the data logger function, which can set by end users from 1min to 60min intervals to record. You can read the data in PC. Also, you can share the data in the Internet LAN. By the way, it can measure the harmonics.With a wide range of models to choose from, the 2200A power meter offers unparalleled value and functionality.

Features

True-RMS measuring Parameters
ANSI and IEC 0.5 Accuracy class
Power Quality Analysis
4 Quadrant Energy
4MB onboard memory
Data logging
High-speed RS485, Ethernet Port (option)
Measure Individual Harmonics from 2nd to 49th (option)
Module Design
TOU, 4 Tariffs
Class leading Warranty
With management software

Applications

Metering of distribution feeders, transformers, generators, capacitor banks and motors.
Medium and low voltage systems.
Commercial, industrial, utility.
Power quality analysis

Specifications

Parameter		Accuracy	Resolution	Range
Voltage		0.2%	0.01V	0.5-500kV
Current		0.2%	0.01mA	5mA-50000A
Active Power		0.5%	0.2W	-9999MW~+9999MW
Reactive Power		2%	0.2var	-9999Mvar~+9999Mvar
Apparent Power		0.5%	0.2VA	0-9999MVA
Active Power Demand		0.5%	0.2W	-9999MW~+9999MW
Reactive Power Demand		2%	0.2var	-9999Mvar~+9999Mvar
Apparent Power Demand		0.5%	0.2VA	0-9999MVA
Power Factor		0.005	0.0001	-1.0000~0~1.0000
Frequency		0.01Hz	0.01Hz	45.000-65.000Hz
Energy	Primary	0.5%	0.1kWh	0-99999999.9kWh
Energy	Secondary	0.5%	0.001kWh	0-999999.999kWh
Reactive Energy	Primary	2%	0.1kvarh	0-99999999.9kvarh
Reactive Energy	Secondary	2%	0.001kvarh	0-999999.999kvarh
Apparent Energy	Primary	0.5%	0.1VAh	0-99999999.9kVAh
Apparent Energy	Secondary	0.5%	0.001VAh	0-999999.999kVAh
Phase Angle		0.1°	0.01°	0-359.99°
Unbalance Factor		2%	0.01%	0-300.00%
PT			1	1-10000
CT			1	1-10000
Addr			1	1-254

Display	LCD Display, 128´64 Lattice, English and Chinese interface
Communication	RS485 port,Ethernet port
Connection Mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W.
Programmable	Measuring System	3P4W/3P3W etc.
	Transformation Ratio	PT,CT.
	Communication	Address: 1-247; Baud: 1200-19200; Parity Bit: N/E/O
	RTC	Year; Month; Day; Hour; Minute; Second
	Energy	Reset
Power Supply (AC/DC)	AC85~265V / DC85~330V, DC18~90V (optional)
	Power Consumption	<4VA
Working condition	Temperature	-25 to 55 °C
	Humidity	20% ~ 95%RH, Without condensation
