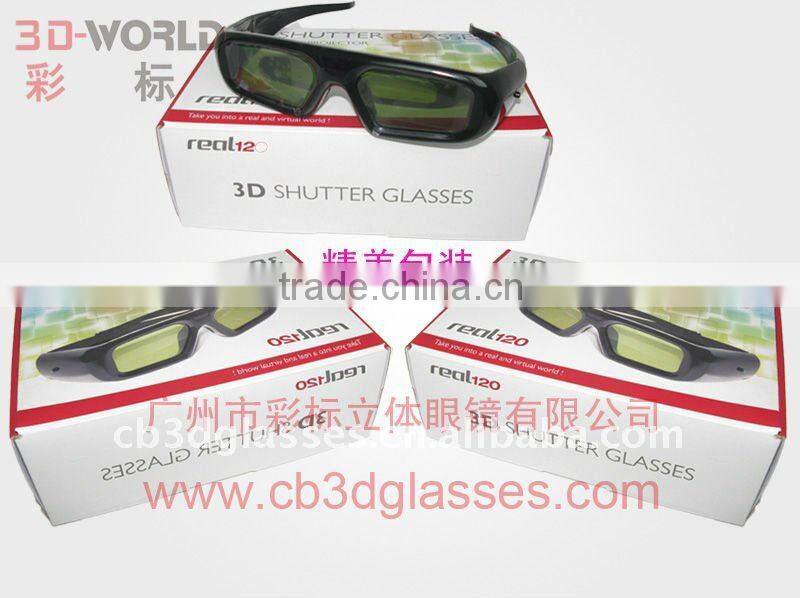

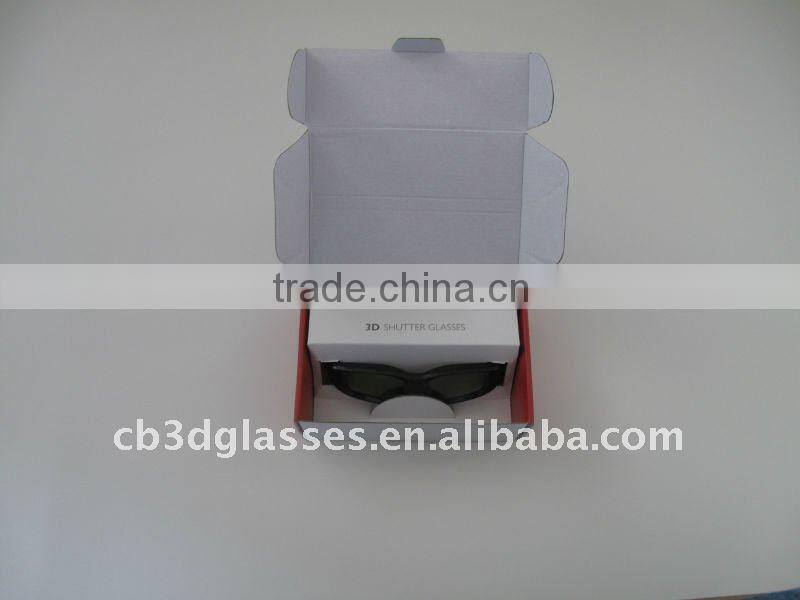

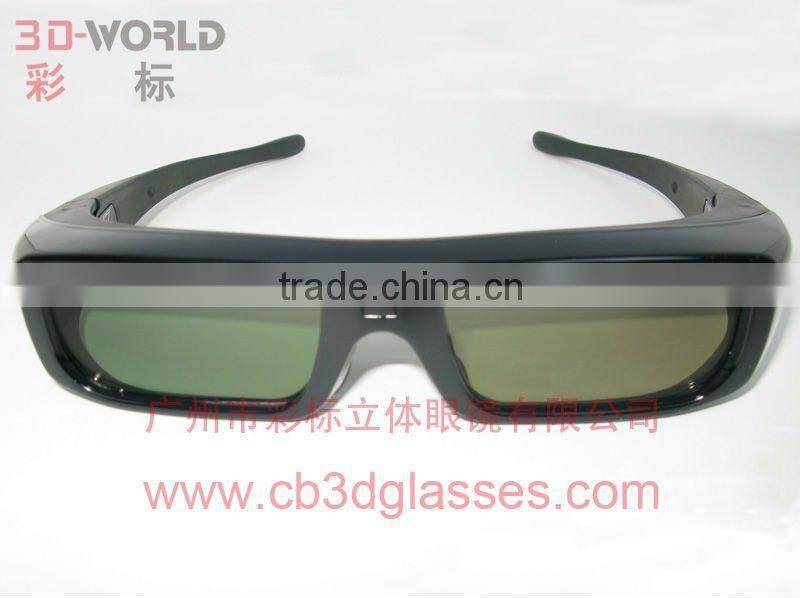

Popular 3d tv Shutter Glasses Dry Battery Design

Specifications

family 3D TV active shutter glasses good manufacturer and supplier with rechargeable design

1. 3D active glasses OEM/ODM services warmly welcome

2. active 3D glasses superior quality at cost-effect price

3. Take you into a virtual world

4. Made:PET+ABS materials

5. Brightest 3D solution in the current market

6.Low power consumption:

continuousely work: > 48hours

Standby time: > 360HRS

Simple auto off and safe manuel on for easy operation and safety

Operation Manual

Name: 3D Shutter Glasses for Samsung 3D TV

Model: T1100

Specifications:

1. Weight: 60g
2. Shutter: High-speed liquid crystal style
3. LCD refresh rate:120 Hz
4. Transmission:39%
5. Contrast:1500:1
6. Battery Type: 3V battery
7. Transmitter Compatibility: Samsung3D TV owns IR Emitter
8. Synchronous operation: Infrared
9. Ambient temperature response time:1.5 ms
10. Working Current: <1mA
11. Standby Current: <0.05mA
12. Continuous Working Time: >200 HRS
13. Standby time: 3~6 months
14. Warranty time:1 year(not include the battery)
15. Display device compatibility: Samsung 3D TV.

Typical Features:

1. High brightness shutter technology

2. Solid and durable Shape;

3. Replaceable battery increases lifetime;

4. Super low power consumption design for hundreds hours using;

5. Extended receiving angle;

6. With ON/OFF button

7. Super Low power detection for hundreds hours standing-by

Product Features:

1. Adopt fast response and high transmittance LCD, support higher than 200fps and guarantee image brightness
2. Durable as well as flexible, replaceable battery extends lifetime, to reduce the maintenance cost of 3D digital cinema

  3.     Adopt low power consumption chips and power saving circuit layout, thus the glasses maintain an average of  300hrs continuously working and one year standby lifespan.

  4.    Utilize extended IR receiving window of high filtration materials, to reduce environmental interference and ensure all-round receiving without black hole.

  5.    Built-in power detection function, The LCD lens will flash once a second when the 3D glasses are in low power mode, to indicate users that the battery needs replacing.

  6.    Rubber nose pad can be replaced to meet users of different nasals.

Operation Remarks:

1.      On/Off Button:

The on/off button is shown as in above picture. Short press to switch on (about one second), the lenses glitter for one time; long press to switch off, the lenses glitter for two times.

Please note: The button should be pressed a little forward, since it is an inclined plane, straight press is hard to control.

2.      Battery Replacement

The battery is 3V cell battery, when the power is near to use up, the glasses will flash some times frequently. That remind the user to replace the battery.

Please kindly open the power cover of the right leg and replace the battery. It is easy to operate.

Notice & Safety Information

1. Do not use the 3D glasses as general eyewear purpose (e.g. sunglasses or protective goggle etc.) as such use may result in injury.
2. Make sure all the settings and connections are correct before using the glasses.
3. The lenses on the glasses contain glass. Keep the glasses away from damage and please do not use the glasses if there is any damage or cracking to the lenses.
4. Sensitive IR receiver is installed beneath the IR window, do keep strong light or other IR ray away from the IR window to avoid interference.
5. Do not block the IR window or IR emitter when you enjoy 3D movies.
6. Clean the lenses with soft cloth in case any scratches.
7. Please replace the battery when the glasses in Low Power Mode to ensure show time and effect.
8. Make sure the cell cover is tightened before you clean or disinfect the glasses.
9. Do not try to open the glasses in an electronic storm or near water as humidity or electronic shock may cause damage to the glasses.

Important: Lighting and other environmental infrared source may interfere the 3D glasses, keep such sources away from where the 3D glasses placed to avoid unnecessary power consumption.
