Home > Products > SMD LED > Epistar chips 4color in 1 5050 RGBW SMD LED

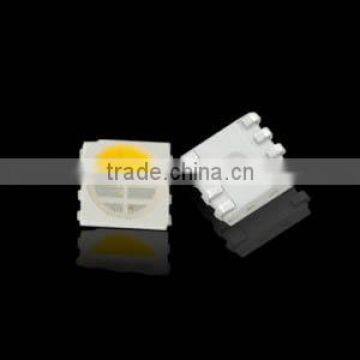

Epistar chips 4color in 1 5050 RGBW SMD LED

FOB Price

USD $59.00 - $59.00 / Roll

5 Rolls(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	High quality RGBW led diode 5050	Chip Material	AlGaInP
Emitting Color	Other, RGBW	Luminous Flux(lm)	40-50
Optical Attenuation(%)	0.001%	Power	Other, 0.2w 0.3w 0.6w, 0.25w 0.3W
Color Rendering Index(Ra)	85	Color Temperature	RGBW
Operating Temperature(℃)	-40, +80	Storage Temperature(℃)	-40, +80
Place of Origin	Guangdong, China	Brand Name	FEDY
Certification	CE

Product Description

Epistar chips 4color in 1 5050 RGBW SMD LED

Product Description

Epistar chips 4color in 1 5050 RGBW SMD LED

1. Epistar chips

2. Brightest version

3. SUper low decay

4. Lifespan > 80 000hours

5. Warranty : 3 years

6. Anti-static built in

7. Anti-high temperature

8. 100% tested , binned by automatic machine before QC QA test

Item	Symbol	Test condition	Min	Type	Max	Unit
Forward voltage	VF	R/G/B:20mA W:60mA	R: 1.9V G/B/W: 3.0V	--	R: 2.3V G/B/W:3.4V	V
Reverse current	IR	VR=5V		--	10	μA
Luminous intensity	IV	R/G/B:20mA W:60mA	R: 800mcd G: 1200mcd B: 600mcd W:22lm			Lm/mcd
CCT	λd	R/G/B:20mA W:60mA	Red: 620-625nm, G: 520-525nm, B: 460-470nm, W: 6000-6500k			K/nm
Spectrum line half width	Δλ	R/G/B:20mA W:60mA	60	--	70	nm
Viewing Angle	2θ1/2	R/G/B:20mA W:60mA	120	--	140	deg

Company Information

Fedy is a LED component manufacturer since 2000. All efforts focused on high quality led component .

High cost performance won't let you disappointed

Our Services

1 Highest quality

2. Best price

3. Fast delivery

4. Well packed

Packaging & Shipping

1000pcs per Reel

1Reel per ESD bag

40bags per CTN

Shipping : International express DHL , UPS ,,,etc

By Air

By sea

By your agent

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-3014W-A	White	2500K up to 20000K	9-16lm	3.0-3.2V
FD-3014B	Blue	460-470nm	300-600mcd	3.0-3.2V
FD-3014G	Green	520-525nm	1600-2000mcd	3.0-3.2V
FD-3014R	Red	620-630nm	200-500mcd	1.9-2.3V
FD-3014Y	Yellow	588-595nm	300-500mcd	1.9-2.3V
FD-3014A	Amber	600-610nm	300-500mcd	1.9-2.3V
FD-3014IR	Infrared	940nm		3.2-3.4V
FD-3014IR2	Infrared	850nm		3.2-3.4V
Part No.	Color	Wavelength/ CCT	Intensity	Watt available
FD-2835W-0.1	White	2500K up to 20000K	12-14lm	0.1W
FD-2835W-0.2	White		21-28lm	0.2W
FD-2835W-0.5	White		50-65lm	0.5w
FD-2835B	Blue	460-470nm	/	0.1w 0.2w 0.5w
FD-2835G	Green	520-525nm	/
FD-2835R	Red	620-630nm	/
FD-2835Y	Yellow	588-595nm	/
FD-2835A	Amber	600-610nm	/
FD-2835IR	Infrared	940nm
FD-2835IR2	Infrared	850nm
Part No.	Color	Wavelength/ CCT	Intensity	Watt avaialble
FD-5630W-A	White	2500K up to 20000K	40-45lm	0.5w
FD-5630W-B	White		45-50lm
FD-5630W-C	White		50-55lm
FD-5630W-D	White		55-60lm
FD-5630W-E	White		60-65lm
FD-5630B	Blue	460-470nm	/	0.2w 0.5w
FD-5630G	Green	520-525nm	/
FD-5630R	Red	620-630nm	/
FD-5630Y	Yellow	588-595nm	/
FD-5630A	Amber	600-610nm	/
FD-5630IR	Infrared	940nm
FD-5630IR2	Infrared	850nm
Part No.	Color	Wavelength/ CCT	Intensity	Watt avaialble
FD-5730W-A	White	2500K up to 20000K	40-45lm	0.5w
FD-5730W-B	White		45-50lm
FD-5730W-C	White		50-55lm
FD-5730W-D	White		55-60lm
FD-5730W-E	White		60-65lm
FD-5730B	Blue	460-470nm	/	0.2w 0.5w
FD-5730G	Green	520-525nm	/
FD-5730R	Red	620-630nm	/
FD-5730Y	Yellow	588-595nm	/
FD-5730A	Amber	600-610nm	/
FD-5730IR	Infrared	940nm
FD-5730IR2	Infrared	850nm

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-0805W	White	2500K up to 20000K	9-16lm	3.0-3.2V
FD-0805B-1	Blue	460-470nm	200-300mcd	3.0-3.2V
FD-0805G-1	Green	520-525nm	500-800mcd	3.0-3.2V
FD-0805R-1	Red	620-630nm	200-300mcd	1.9-2.3V
FD-0805B-2	Blue	460-470nm	300-500mcd	3.0-3.2V
FD-0805G-2	Green	520-525nm	800-1500mcd	3.0-3.2V
FD-0805R-2	Red	620-630nm	300-500mcd	1.9-2.3V
FD-0805Y	Yellow	588-595nm	200-300mcd	1.9-2.3V
FD-0805A	Amber	600-610nm	200-300mcd	1.9-2.3V
FD-0805IR	Infrared	940nm		3.2-3.4V
FD-0805R2	Infrared	850nm		3.2-3.4V

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-0603W	White	2500K up to 20000K	9-16lm	3.0-3.2V
FD-0603B-1	Blue	460-470nm	200-300mcd	3.0-3.2V
FD-0603G-1	Green	520-525nm	500-800mcd	3.0-3.2V
FD-0603R-1	Red	620-630nm	200-300mcd	1.9-2.3V
FD-0603B-2	Blue	460-470nm	300-500mcd	3.0-3.2V
FD-0603G-2	Green	520-525nm	800-1500mcd	3.0-3.2V
FD-0603R-2	Red	620-630nm	300-500mcd	1.9-2.3V
FD-0603Y	Yellow	588-595nm	200-300mcd	1.9-2.3V
FD-0603A	Amber	600-610nm	200-300mcd	1.9-2.3V
FD-0603IR	Infrared	940nm		1.5-1.7
FD-0603IR2	Infrared	850nm		1.5-1.7
FD-0603UV	UV	395-400 400-405		3.2-3.6
FD-0603Pi	Pink			3.0-3.4

Part No.	Color	Voltage	Current	Intensity	Emitting angle
FD-3030W-3v	White Cool white Warm white	3v	350mA	110-130lm	120degree
FD-3030W-6v		6v	150mA	110-130lm	120degree
FD-3030W-9v		9v	100mA	110-130lm	120degree
FD-3030W-18v		18v	60mA	110-130lm	120degree
FD-3030W-24v		24v	40mA	110-130lm	120degree
FD-3030W-27v		27v	30mA	110-130lm	120degree
Part No.	Color	Voltage	Current	Intensity	Emitting angle
FD-3030R-3V	Red 620-625nm	3v	350mA	40lm	120degree
FD-3030G-3V	Green 520-525nm	3v	350mA	100lm	120degree
FD-3030Y-3V	Yellow 588-595nm	3v	350mA	40lm	120degree
FD-3030B-3V	Blue 460-470nm	3v	350mA	25lm	120degree
FD-3030UV-3V	UV 400-410nm	3v	350mA	10lm	120degree

Part No.	Color	Voltage	Current	Intensity	Emitting angle
FD-3535W-0.5W	White CCT available from 2700k to 12000K	3.0-3.4v	150mA	55lm	120degree
FD-3535W-1W	White CCT available from 2700k to 12000K	3.0-3.4v	300mA	110lm	120degree
FD-3535R-0.5W	Red	1.9-2.1v	150mA	20lm	120degree
FD-3535B-0.5W	Blue	3.0-3.4v	150mA	10lm	120degree
FD-3535B-1W	Blue	3.0-3.4v	300mA	20lm	120degree
FD-3535G-0.5W	Green	3.0-3.4v	150mA	40lm	120degree
FD-3535Y-0.5W	Yellow	1.9-2.1v	150mA	15lm	120degree

Part No.	Color	Voltage	Current	Intensity	Emitting angle
FD-5050W-0.5W	White CCT available from 2700k to 12000K	3.0-3.4v	150mA	55lm	120degree
FD-5050R-0.5W	Red	1.9-2.1v	150mA	20lm	120degree
FD-5050B-0.5W	Blue	3.0-3.4v	150mA	10lm	120degree
FD-5050G-0.5W	Green	3.0-3.4v	150mA	40lm	120degree
FD-5050Y-0.5W	Yellow	1.9-2.1v	150mA	15lm	120degree

Part No.	Color	Voltage	Current	Intensity	Emitting angle
FD-5050W-1W	White CCT available from 2700k to 12000K	3.0-3.4v	300mA	110lm	120degree
FD-5050R-1W	Red	1.9-2.1v	300mA	40lm	120degree
FD-5050B-1W	Blue	3.0-3.4v	300mA	20lm	120degree
FD-5050G-1W	Green	3.0-3.4v	300mA	80lm	120degree
FD-5050Y-1W	Yellow	1.9-2.1v	300mA	30lm	120degree

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-3014W-A	4000-5000-6000-7000K		9-11lm	3.0-3.2V
FD-3014W-B			11-12lm	3.0-3.2V
FD-3014W-C			12-14lm	3.0-3.2V
FD-2835W-A	4000-5000-6000-7000K		12-14lm	0.1W
FD-2835W-B	4000-5000-6000-7000K		21-23lm	0.2W
FD-5630/5730W-A	4000-5000-6000-7000K		40-45lm	3.0-3.2V
FD-5630/5730W-B			45-50lm	3.0-3.2V
FD-5630/5730W-C			50-55lm	3.0-3.2V
FD-5630/5730W-D			55-60lm	3.0-3.2V

SMD3528

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-3528W-A	Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K		3-5lm	3.0-3.2V
FD-3528W-B			5-6lm	3.0-3.2V
FD-3528W-C			6-7lm	3.0-3.2V
FD-3528W-D			7-8lm	3.0-3.2V
FD-3528B	Blue	460-470nm	300-600mcd	3.0-3.2V
FD-3528G	Green	520-525nm	400-2000mcd	3.0-3.2V
FD-3528R	Red	620-630nm	200-500mcd	1.9-2.3V
FD-3528Y	Yellow	588-595nm	300-500mcd	1.9-2.3V
FD-3528A	Amber	600-610nm	300-500mcd	1.9-2.3V
FD-3528IR	Infrared	850nm		3.2-3.4V

SMD5050

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-5050W-A	Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K		10-12lm	3.0-3.4V
FD-5050W-B			14-16lm	3.0-3.4V
FD-5050W-C			16-18lm	3.0-3.4V
FD-5050W-D			18-21lm	3.0-3.4V
FD-5050B	Blue	460-470nm	1000-3500mcd	3.0-3.2V
FD-5050G	Green	520-525nm	2500-5500mcd	3.0-3.2V
FD-5050R	Red	620-630nm	1200-3500mcd	1.9-2.3V
FD-5050Y	Yellow	588-595nm	1200-3500mcd	1.9-2.3V
FD-5050A	Amber	600-610nm	1000-3500mcd	1.9-2.3V
FD-5050IR	Infrared	850nm		3.2-3.4V

Main advantages:

1. Have our own packaging technology,can control all details,with good quality and high brightness.

2. Low lighting attenuation,Conversion factor can reach 90%

3. Good glare control.

4. Special design good for heating output.

5. Long lifespan of up to 50,000 hours

6. We are professional manufacturuer with 12 years experience in leds . Quality Is 100% guaranteed.

7. Leds with TW original Epistar chips . Class A quality

8. With ROHS. With 3years warranty

9. Fast delivery .
