Home > Products > SMD LED > Ultra Bright 1 watt led smd 2835 5630 chip 6V 3V 5730 smd led datasheet

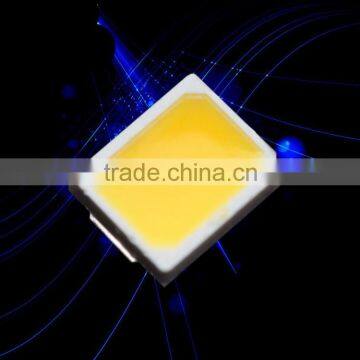

Ultra Bright 1 watt led smd 2835 5630 chip 6V 3V 5730 smd led datasheet

FOB Price

US$ 15 - 20 / Set

4000 Sets(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	Super bright led diode 2835 UV 395-400nm 400-405nm	Chip Material	AlGaInP
Emitting Color	Other, Super bright led diode 2835 UV 395-400nm 400-405nm	Luminous Intensity	28
Luminous Flux(lm)	28	Optical Attenuation(%)	0.001%
Power	Other, 0.1 0.2	Color Rendering Index(Ra)	85
Color Temperature	6000-6500K	Operating Temperature(℃)	-40, +80
Storage Temperature(℃)	-40, +80	Place of Origin	Guangdong, China
Brand Name	FEDY	Certification	CE

Product Description

Ultra Bright 1 watt led smd 2835 5630 chip 6V 3V 5730 smd led datasheet

Product Description

Super bright led diode 2835 UV 395-400nm 400-405nm

Item	Power	Current	CCT	CRI	Intensity	Voltage
FD-H2835WW-1	1W	350mA	(WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K	Ra>70	110-130LM	3.0-3.6V
FD-H2835WW-1	1W	350mA	(WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K	Ra>80	100-130LM	3.0-3.6V
FD-H2835WW-1	1W	150mA	(WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K	Ra>70	110-130LM	6.0-7.0V

FD-T2835WW-0.5	0.5W	150mA	(WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K	Ra>70	50-55-60-70LM	3.0-3.6V
FD-T2835WW-0.5	0.5W	150mA	WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K	Ra>80	50-55LM	3.0-3.6V

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-3014W-A	White	2500K up to 20000K	9-16lm	3.0-3.2V
FD-3014B	Blue	460-470nm	300-600mcd	3.0-3.2V
FD-3014G	Green	520-525nm	1600-2000mcd	3.0-3.2V
FD-3014R	Red	620-630nm	200-500mcd	1.9-2.3V
FD-3014Y	Yellow	588-595nm	300-500mcd	1.9-2.3V
FD-3014A	Amber	600-610nm	300-500mcd	1.9-2.3V
FD-3014IR	Infrared	940nm		3.2-3.4V
FD-3014IR2	Infrared	850nm		3.2-3.4V
Part No.	Color	Wavelength/ CCT	Intensity	Watt available
FD-2835W-0.1	White	2500K up to 20000K	12-14lm	0.1W
FD-2835W-0.2	White		21-28lm	0.2W
FD-2835W-0.5	White		50-65lm	0.5w
FD-2835B	Blue	460-470nm	/	0.1w 0.2w 0.5w
FD-2835G	Green	520-525nm	/
FD-2835R	Red	620-630nm	/
FD-2835Y	Yellow	588-595nm	/
FD-2835A	Amber	600-610nm	/
FD-2835IR	Infrared	940nm
FD-2835IR2	Infrared	850nm
Part No.	Color	Wavelength/ CCT	Intensity	Watt avaialble
FD-5630W-A	White	2500K up to 20000K	40-45lm	0.5w
FD-5630W-B	White		45-50lm
FD-5630W-C	White		50-55lm
FD-5630W-D	White		55-60lm
FD-5630W-E	White		60-65lm
FD-5630B	Blue	460-470nm	/	0.2w 0.5w
FD-5630G	Green	520-525nm	/
FD-5630R	Red	620-630nm	/
FD-5630Y	Yellow	588-595nm	/
FD-5630A	Amber	600-610nm	/
FD-5630IR	Infrared	940nm
FD-5630IR2	Infrared	850nm
Part No.	Color	Wavelength/ CCT	Intensity	Watt avaialble
FD-5730W-A	White	2500K up to 20000K	40-45lm	0.5w
FD-5730W-B	White		45-50lm
FD-5730W-C	White		50-55lm
FD-5730W-D	White		55-60lm
FD-5730W-E	White		60-65lm
FD-5730B	Blue	460-470nm	/	0.2w 0.5w
FD-5730G	Green	520-525nm	/
FD-5730R	Red	620-630nm	/
FD-5730Y	Yellow	588-595nm	/
FD-5730A	Amber	600-610nm	/
FD-5730IR	Infrared	940nm
FD-5730IR2	Infrared	850nm

Item	Part No.	Wavelength/CCT	Intensity	Voltage	Power
SMD5050 white	FD-5050W-1	5500-6000k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-2	6000-6500k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-3	6500-7000k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-4	7000-7500k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-5	7500-8000k	14-20LM	3.0-3.5v	0.18W
SMD5050 reddish white	FD-5050RW-1	2000-2400K	14-20LM	3.0-3.5v	0.18W
SMD5050 reddish white	FD-5050RW-2	2400-2700k	14-20LM	3.0-3.5v	0.18W
SMD5050 Yellowish white	FD-5050YW-1	2800-3200K	14-20LM	3.0-3.5v	0.18W
SMD5050 Yellowish white	FD-5050YW-2	3200-3500K	14-20LM	3.0-3.5v	0.18W
SMD5050 cool white	FD-5050CW-1	8000-9000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-2	9000-10000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-3	10000-12000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-4	12000-15000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-5	20000-25000K	14-20LM	3.0-3.5v	0.18W
SMD5050 blue	FD-5050B	460-470nm	1000-3500mcd	3.0-3.5v	0.18W
SMD5050 Amber	FD-5050A	600-610nm	1000-3500mcd	1.9-2.2V	0.12W
SMD5050 Green	FD-5050G	520-525nm	2500-5500mcd	3.0-3.5v	0.18W
SMD5050 Yellow	FD-5050Y	588-595nm	1200-3500mcd	1.9-2.2V	0.12W
SMD5050 Red	FD-5050R	620-625nm	1200-3500mcd	1.9-2.2V	0.12W
SMD5050 RGB	FD-5050RGB		R:350-450MCD B:250-300MCD G:900-1100MCD
Item	Part No.	Wavelength/CCT	Intensity	Voltage	Power
SMD3528 white	FD-3528W-1	5500-6000k	4-7LM	3.0-3.5v	0.06W
	FD-3528W-2	6000-6500k	4-7LM	3.0-3.5v	0.06W
	FD-3528W-3	6500-7000k	4-7LM	3.0-3.5v	0.06W
	FD-3528W-4	7000-7500k	4-7LM	3.0-3.5v	0.06W
	FD-3528W-5	7500-8000k	4-7LM	3.0-3.5v	0.06W
SMD3528 reddish white	FD-3528RW-1	2000-2400K	4-7LM	3.0-3.5v	0.06W
SMD3528 reddish white	FD-3528RW-2	2400-2700k	4-7LM	3.0-3.5v	0.06W
SMD3528 Yellowish white	FD-3528YW-1	2800-3200K	4-7LM	3.0-3.5v	0.06W
SMD3528 Yellowish white	FD-3528YW-2	3200-3500K	4-7LM	3.0-3.5v	0.06W
SMD3528 cool white	FD-3528CW-1	8000-9000K	4-7LM	3.0-3.5v	0.06W
	FD-3528CW-2	9000-10000K	4-7LM	3.0-3.5v	0.06W
	FD-3528CW-3	10000-12000K	4-7LM	3.0-3.5v	0.06W
	FD-3528CW-4	12000-15000K	4-7LM	3.0-3.5v	0.06W
	FD-3528CW-5	20000-25000K	4-7LM	3.0-3.5v	0.06W
SMD3528 blue	FD-3528B	460-470nm	300-600mcd	3.0-3.5v	0.06W
SMD3528 Amber	FD-3528A	600-610nm	300-500mcd	1.9-2.2V	0.04W
SMD3528 Green	FD-3528G	520-525nm	400-2000mcd	3.0-3.5v	0.06W
SMD3528 Yellow	FD-3528Y	588-595nm	300-500mcd	1.9-2.2V	0.04W
SMD3528 Red	FD-3528R	620-625nm	200-500mcd	1.9-2.2V	0.04W
SMD3528 RGB	FD-3528RGB		R:350-450MCD B:250-300MCD G:900-1100MCD

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-3014W-A	4000-5000-6000-7000K		9-11lm	3.0-3.2V
FD-3014W-B			11-12lm	3.0-3.2V
FD-3014W-C			12-14lm	3.0-3.2V
FD-2835W-A	4000-5000-6000-7000K		12-14lm	0.1W
FD-2835W-B	4000-5000-6000-7000K		21-23lm	0.2W
FD-5630/5730W-A	4000-5000-6000-7000K		40-45lm	3.0-3.2V
FD-5630/5730W-B			45-50lm	3.0-3.2V
FD-5630/5730W-C			50-55lm	3.0-3.2V
FD-5630/5730W-D			55-60lm	3.0-3.2V

SMD3528

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-3528W-A	Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K		3-5lm	3.0-3.2V
FD-3528W-B			5-6lm	3.0-3.2V
FD-3528W-C			6-7lm	3.0-3.2V
FD-3528W-D			7-8lm	3.0-3.2V
FD-3528B	Blue	460-470nm	300-600mcd	3.0-3.2V
FD-3528G	Green	520-525nm	400-2000mcd	3.0-3.2V
FD-3528R	Red	620-630nm	200-500mcd	1.9-2.3V
FD-3528Y	Yellow	588-595nm	300-500mcd	1.9-2.3V
FD-3528A	Amber	600-610nm	300-500mcd	1.9-2.3V
FD-3528IR	Infrared	850nm		3.2-3.4V

SMD5050

Part No.	Color	Wavelength/ CCT	Intensity	Voltage
FD-5050W-A	Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K		10-12lm	3.0-3.4V
FD-5050W-B			14-16lm	3.0-3.4V
FD-5050W-C			16-18lm	3.0-3.4V
FD-5050W-D			18-21lm	3.0-3.4V
FD-5050B	Blue	460-470nm	1000-3500mcd	3.0-3.2V
FD-5050G	Green	520-525nm	2500-5500mcd	3.0-3.2V
FD-5050R	Red	620-630nm	1200-3500mcd	1.9-2.3V
FD-5050Y	Yellow	588-595nm	1200-3500mcd	1.9-2.3V
FD-5050A	Amber	600-610nm	1000-3500mcd	1.9-2.3V
FD-5050IR	Infrared	850nm		3.2-3.4V

Item	Part No.	Wavelength/CCT	Intensity	Voltage	Power
SMD5050 white	FD-5050W-1	5500-6000k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-2	6000-6500k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-3	6500-7000k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-4	7000-7500k	14-20LM	3.0-3.5v	0.18W
	FD-5050W-5	7500-8000k	14-20LM	3.0-3.5v	0.18W
SMD5050 reddish white	FD-5050RW-1	2000-2400K	14-20LM	3.0-3.5v	0.18W
SMD5050 reddish white	FD-5050RW-2	2400-2700k	14-20LM	3.0-3.5v	0.18W
SMD5050 Yellowish white	FD-5050YW-1	2800-3200K	14-20LM	3.0-3.5v	0.18W
SMD5050 Yellowish white	FD-5050YW-2	3200-3500K	14-20LM	3.0-3.5v	0.18W
SMD5050 cool white	FD-5050CW-1	8000-9000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-2	9000-10000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-3	10000-12000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-4	12000-15000K	14-20LM	3.0-3.5v	0.18W
	FD-5050CW-5	20000-25000K	14-20LM	3.0-3.5v	0.18W
SMD5050 blue	FD-5050B	460-470nm	1000-3500mcd	3.0-3.5v	0.18W
SMD5050 Amber	FD-5050A	600-610nm	1000-3500mcd	1.9-2.2V	0.12W
SMD5050 Green	FD-5050G	520-525nm	2500-5500mcd	3.0-3.5v	0.18W
SMD5050 Yellow	FD-5050Y	588-595nm	1200-3500mcd	1.9-2.2V	0.12W
SMD5050 Red	FD-5050R	620-625nm	1200-3500mcd	1.9-2.2V	0.12W
SMD5050 RGB	FD-5050RGB		R:350-450MCD
			B:250-300MCD
			G:900-1100MCD
Item	Part No.	Wavelength/CCT	Intensity	Voltage	Power
SMD3528 white	FD-3528W-1	5500-6000k	4-7LM	3.0-3.5v	0.06W
	FD-3528W-2	6000-6500k	4-7LM	3.0-3.5v	0.06W
	FD-3528W-3	6500-7000k	4-7LM	3.0-3.5v	0.06W
	FD-3528W-4	7000-7500k	4-7LM	3.0-3.5v	0.06W

Main advantages:

1. Have our own packaging technology,can control all details,with good quality and high brightness.

2. Low lighting attenuation,Conversion factor can reach 90%

3. Good glare control.

4. Special design good for heating output.

5. Long lifespan of up to 50,000 hours

6. We are professional manufacturuer with 12 years experience in leds . Quality Is 100% guaranteed.

7. Leds with TW original Epistar chips . Class A quality

8. With ROHS. With 2years warranty

9. Fast delivery .
