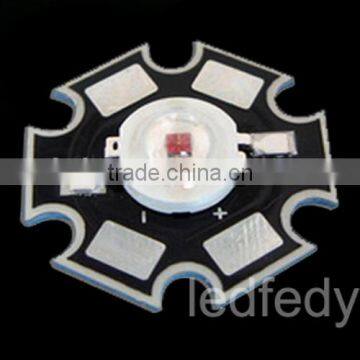

600nm 610nm 590nm 595nm 1w led chip
US$ 2.5 - 3.9
/ Piece
50 Pieces(Min. Order)
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | FEDY | |
| Model Number | 600nm 610nm 590nm 595nm 1w led chip |
Product Description
Specifications
600nm 610nm 590nm 595nm 1w led chip1. Professional factory since 2000
2. Warranty : 3 years
3. CE ROHS
600nm 610nm 590nm 595nm 1w led chip
1. FEDY is a professional manufacturer of Power led, led diode since 2000
2. Class A quality with 3 years warrany for all items.
3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.
5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
| 1w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1W90-Y | 80-90lm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-1W110-Y | 100-110lm | 350mA | 3.0-3.6V | |
| FD-1W120-Y | 110-120lm | 350mA | 3.0-3.6V | |
| FD-1W130-Y | 130-140lm | 350mA | 3.0-3.6V | |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1B-Y | 460-470nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12B-Y | 440-450nm | 350mA | 3.0-3.6V | |
| FD-13B-Y | 450-455nm | 350mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1G-Y | 520-525nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12G-Y | 500-505nm | 350mA | 3.0-3.6V | |
| FD-13G-Y | 490-495nm | 350mA | 3.0-3.6V | |
| FD-14G-Y | 495-500nm | 350mA | 3.0-3.6V | |
| FD-15G-Y | 515-520nm | 350mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1Y-Y | 588-595nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1A-Y | 600-610nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1R-Y | 620-630nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-12R-Y | 640-650nm | 350mA | 1.9-2.3V | |
| FD-13R-Y | 660nm | 350mA | 1.9-2.3V | |
| FD-132R-Y | 660-670nm | 350mA | 1.9-2.3V | |
| FD-142R-Y | 670-680nm | 350mA | 1.9-2.3V | |
| FD-14R-Y | 680-690nm | 350mA | 1.9-2.3V | |
| FD-15R-Y | 700nm | 350mA | 1.9-2.3V | |
| FD-16R-Y | 730nm | 350mA | 1.9-2.3V | |
| FD-17R-Y | 760-770nm | 350mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1UV-Y | 400-410nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12UV-Y | 390-400nm | 350mA | 3.0-3.6V | |
| FD-13UV-Y | 410-420nm | 350mA | 3.0-3.6V | |
| FD-14UV-Y | 430-440nm | 350mA | 3.0-3.6V | |
| FD-15UV-Y | 365nm | 350mA | 3.0-3.6V | |
| FD-16IV-Y | 380-385nm | 350mA | 3.0-3.6V | |
| FD-17UV-Y | 370-375nm | 350mA | 3.0-3.6V | |
| FD-18UV-Y | 375-380nm | 350mA | 3.0-3.6V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1IR-Y | 940nm | 350mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-12IR-Y | 850nm | 350mA | 1.6-1.9V | |
| FD-13IR-Y | 880nm | 350mA | 1.6-1.9V | |
| FD-14R-Y | 770-780nm | 350mA | 1.5-2.0V | |
| FD-15IR-Y | 800-810nm | 350mA | 1.3-1.7V | |
| FD-16IR-Y | 810-820nm | 350mA | 1.3-1.7V | |
| FD-17R-Y | 870nm | 350mA | 1.3-1.7V | |
| FD-18IR-Y | 890nm | 350mA | 1.3-1.7V | |
| FD-19IR-Y | 900-910nm | 350mA | 1.3-1.7V | |
| FD-1I0R-Y | 970-980nm | 350mA | 1.6-1.9V | |
| FD-111IR-Y | 980-990nm | 350mA | 1.1-1.3V | |
| FD-112IR-Y | 1000-1050nm | 350mA | 1.0-1.2V | |
| 3w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3W220-Y | 200-220lm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3B-Y | 460-470nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32B-Y | 440-450nm | 700mA | 3.0-3.6V | |
| FD-33B-Y | 450-455nm | 700mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3G-Y | 520-525nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32G-Y | 500-505nm | 700mA | 3.0-3.6V | |
| FD-33G-Y | 490-495nm | 700mA | 3.0-3.6V | |
| FD-34G-Y | 495-500nm | 700mA | 3.0-3.6V | |
| FD-35G-Y | 515-520nm | 700mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3Y-Y | 588-595nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3A-Y | 600-610nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3R-Y | 620-630nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-32R-Y | 640-650nm | 700mA | 1.9-2.3V | |
| FD-33R-Y | 660nm | 700mA | 1.9-2.3V | |
| FD-332R-Y | 660-670nm | 700mA | 1.9-2.3V | |
| FD-342R-Y | 670-680nm | 700mA | 1.9-2.3V | |
| FD-34R-Y | 680-690nm | 700mA | 1.9-2.3V | |
| FD-35R-Y | 700nm | 700mA | 1.9-2.3V | |
| FD-36R-Y | 730nm | 700mA | 1.9-2.3V | |
| FD-37R-Y | 760-770nm | 700mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3UV-Y | 400-410nm | 700mA | Voltage (v) | 60deg 90deg 120deg 140deg |
| FD-32UV-Y | 390-400nm | 700mA | 1.9-2.3V | |
| FD-33UV-Y | 410-420nm | 700mA | 1.9-2.3V | |
| FD-34UV-Y | 430-440nm | 700mA | 1.9-2.3V | |
| FD-35UV-Y | 365nm | 700mA | 1.9-2.3V | |
| FD-36UV-Y | 380-385nm | 700mA | 1.9-2.3V | |
| FD-37UV-Y | 370-375nm | 700mA | 1.9-2.3V | |
| FD-38UV-Y | 375-380nm | 700mA | 1.9-2.3V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3IR-Y | 940nm | 700mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-32IR-Y | 850nm | 700mA | 1.6-1.9V | |
| FD-33IR-Y | 880nm | 700mA | 1.6-1.9V | |
| FD-34R-Y | 770-780nm | 700mA | 1.5-2.0V | |
| FD-35IR-Y | 800-810nm | 700mA | 1.3-1.7V | |
| FD-36IR-Y | 810-820nm | 700mA | 1.3-1.7V | |
| FD-37R-Y | 870nm | 700mA | 1.3-1.7V | |
| FD-38IR-Y | 890nm | 700mA | 1.3-1.7V | |
| FD-39IR-Y | 900-910nm | 700mA | 1.3-1.7V | |
| FD-3I0R-Y | 970-980nm | 700mA | 1.6-1.9V | |
| FD-311IR-Y | 980-990nm | 700mA | 1.1-1.3V | |
| FD-312IR-Y | 1000-1050nm | 700mA | 1.0-1.2V | |
| 5w high power led A type | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-5W500-Y | White | 700mA | 6--7v | 60deg 90deg 120deg 140deg |
| FD-5R-Y | Red | 700mA | 4-5V | |
| FD-5B-Y | Blue | 700mA | 6-7v | |
| FD-5G-Y | Green | 700mA | 6-7v | |
| FD-5A-Y | Amber | 700mA | 4-5v | |
| FD-5Y-Y | Yellow | 700mA | 4-5v | |
| FD-5IR-Y | IR 940nm | 1400mA | 1.6-1.9v | |
| FD-52IR-Y | IR 850nm | 1400mA | 1.6-1.9v | |
| 10W high power led A type | ||||
| White color | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-10W1100-A | White | 1000mA | 10-12V | 160deg |
| FD-10R-A | Red | 1000mA | 6-7V | |
| FD-10B-A | Blue | 1000mA | 10-12V | |
| FD-10G-A | Green | 1000mA | 10-12V | |
| FD-10A-A | Amber | 1000mA | 6-7V | |
| FD-10Y-A | Yellow | 1000mA | 6-7V | |
| 12W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-12W1320 | 1320lm | 160deg |
| FD-12W1200 | 1200lm | |
| FD-12W960 | 960lm | |
| 15W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-15W1650 | 1650lm | 160deg |
| FD-15W1500 | 1500lm | |
| FD-15W1200 | 1200lm | |
| 20W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-20W2200 | 2200lm | 160deg |
| FD-20W2000 | 2000lm | |
| FD-20W1600 | 1600lm | |
| 3W RGB led | ||
| Part No. | Type | Emitting angle (Degree) |
| FD-3RGB-Y1 | 4 legs | 140deg |
| FD-3RGB-Y3 | 6 legs | 140deg |
| FD-3RGB-Y6 | SMD | 160deg |
| FD03RGB-D | Dip | 160deg |
| 9W RGB led | ||
| White color | ||
| Part No. | Type | Emitting angle (Degree) |
| FD-9RGB-Y1 | 4 legs | 140deg |
| FD-9RGB-Y3 | 6 legs | 60deg |
CE ROHS SVHC Certificate
