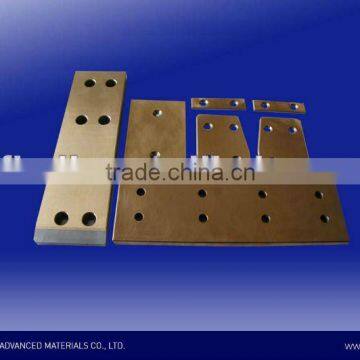

Bi-metal Slide Plate for Tire Mold

Product Name

Bi-metal slide plate for tire mold

Raw Materials

1.  Bronze layer 0.80-1.6 mm thickness
2.  Steel plate layer 3.0-12mm thickness

Feature

1. Max Stillness Load no less than 310 Mpa
2. Max Temperature: 400 Celsius
3. Friction Coefficient: Dry Friction: 0.1

4. Maxi linear speed: 4m/s
5. Hardness of the bronze layer: no less than HB80-100

Application

Tire segment mold, tyre active mould

Processing of Bimetal plate

Steel plate – overspread bronze powder – sinter – machining – finishing – checking - packing

Manufacturability

1. Auto Press: 50T, 100T, 140T

2. Hydraulic Press: 100T, 315T, 600T, 800T

3. Six sinter furnaces, including one harden Sinter Furnace

4. Heat treatment: Carbonitriding quenching and high frequency quenching in-house

5. Pedrail ultrasonic cleaner line and auto deburring

6. In-house tooling making: EDM, wire cutting machine

7. Strength in machining: Machine center, CNC milling, CNE lathe, Two end lapper, roller mill, leveller etc.

tester

1. Carbon selfur determinator

2. Metallurgic microscope

3. Friction and Wear Swing Tester

4. Plate Surface Friction and Wear Tester

5. Hydraulic universal material tester

6. Hardness testers

7. Pneumatic measuring instrument

8. Measuring projector

9. Gear testing instrument

10. Electrical profilometer

11. CMM

QMS

ISO9001: 2008, ISO/TS16949: 2009,
ISO14000: 2004, OHSAS18001: 1999

Advantage

1. 15 years in making advanced composite materials

2. Great strength in design and developing advanced materials.
