Aluminum Foil casserole making Machine

Specifications

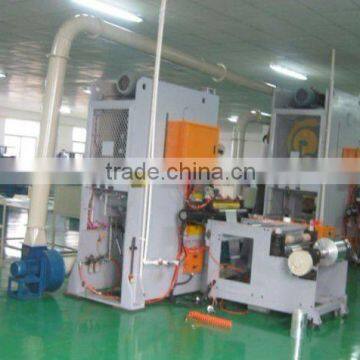

Aluminum foil container production line

The Aluminum foil container production line is including :
1) Auto Feeding Machin (with an auto-lubricator)
2) Electrical control panel
3) Air output control equipment
4) high accuracy pneumatic press
5) Mould
6) Auto-stacker or conveyor(including scrap collector)
7) Collection desk

Product Description:
1) This machine adopts Siemens PLC as the controlling system, it is reliable. The Feeding length,producing speed and other parameter are easily set, it is integration of Gas & Electrical , centralized control , automated production.
2) Feeding , punching ,scrap collecting is running automatically.

certification     iso9001     haccp     qs     fda     sgs

certification     iso9001     haccp     qs     fda     sgs
3) The accurate press adopts steel plates joining body,variable frequency speed regulation,dry type friction clutch-on-off,rigid over-load  protector to protect the press . In short, this is a high accuracy and reliability press.
4) Feeding is controlled by stepper syatem, the feeding length is  accurate and can be adjusted from 20mm to 90mm.
5) Steel plate wielded machine body marked with high rigidity and less deformation
6) It adopts combined pneumatic friction clutch and barking device to ensure steady clutching, low noise level, and flexible action
7) Integrated lubrication system enables easy oil supply and smooth operation of the machine tool. The automatic lubricating system with fixed place, time and quantity is available to choose.
8) Photo-electric protection and automatic feeding device, driving output shaft and air cushion are available to choose

certification     iso9001     haccp     qs     fda     sgs

certification     iso9001     haccp     qs     fda     sgs

certification     iso9001     haccp     qs     fda     sgs

certification     iso9001     haccp     qs     fda     sgs
