ip AmmeterLW26GS-100 Voltmeter Switch (ROHS,CE Certificate)

FOB Price

US$ 2 - 18 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

productive history for 30 years,
current range:10A to 160A
certificate:Rohs&CE
IP class:IP65
ip ammeter

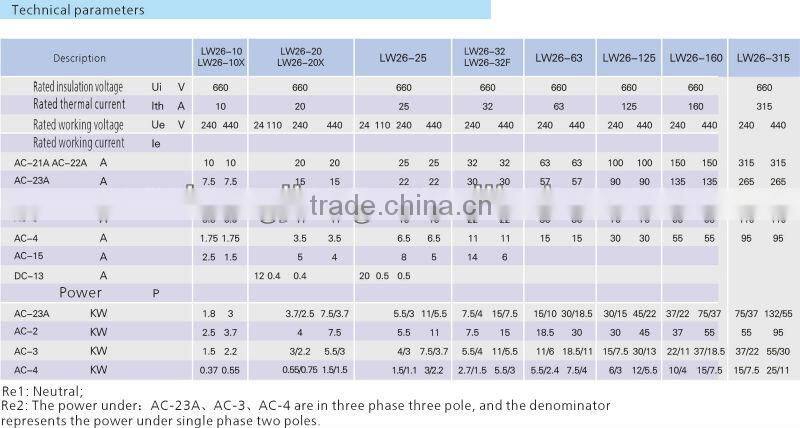

No.	Tech Parameters	requirement
1.	rated voltage	below 440V & DC220
2.	rated current	10A,20A,25A,32A,63A,80A,100A,125A,160A
3.	frequency	AC50HZ
4.	No.of poles	2P,3P,4P

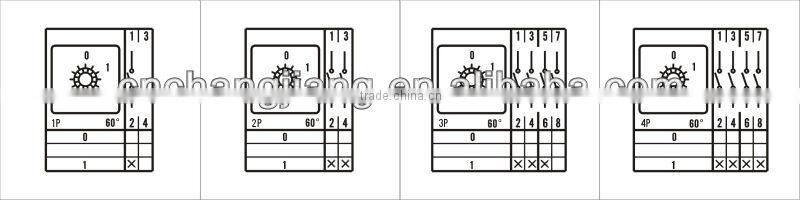

5.	No.of layers	make as required with circuit diagram

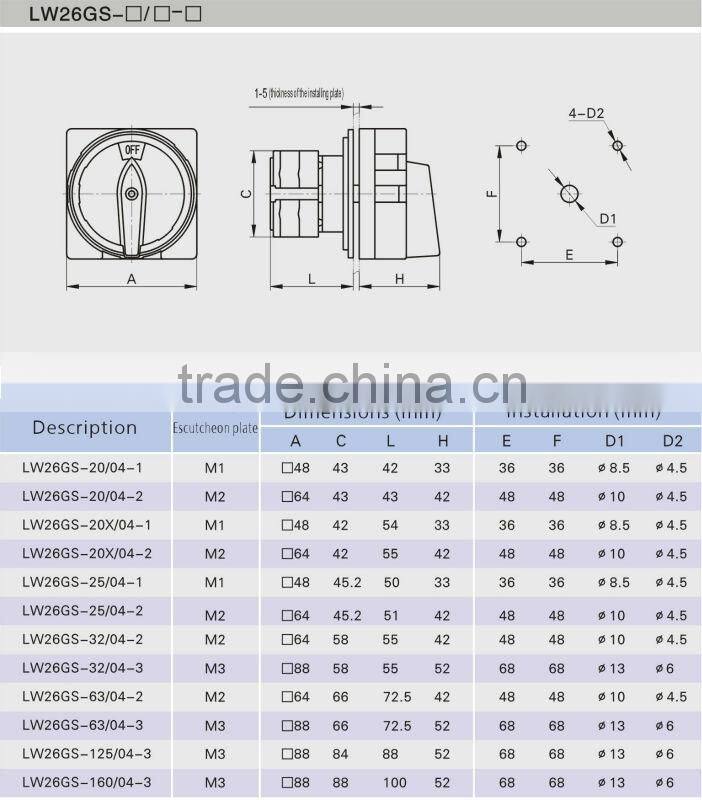

6.	panel size	3030mm,4848mm,6464mm,8888mm
7.	colour of handle	black,white,red,grey
8.	working temperature	-25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C)
9.	Working height	≤2,000m
10.	Relative humidity	≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C)
11.	Instalation conditions	polution class III
12.	Mechanical life	0.1*10⁶times
13.	Electrical life	0.03*10⁶times
14.	Operative frequency	120times/hour
15.	transform angle	30°/45°/60°/90°/120°/135°/150°
