Home > Products > Jet Mud Mixer > Brightway BWSLH series Mud Mixer
Brightway BWSLH series Mud Mixer
- TianJin
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Application | Viscous Fluid | |
| Place of Origin | China | Brand Name | Brightway | |
| Model Number | BWSLH150-50 | Certification | IADC ISO9001 BV | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
as customer required
Product Description
Brightway Jet Mud Mixer Advantages
Brightway jet mud mixer is a special equipment to change the fluid density, mud density and viscosity by adding chemicals so as to adjust the proportion of the drilling fluids averagely, then make the mud for recycle use in drilling fluids. It will be perfect match with shear pump.
The whole unit mainly consists of sand pump, jet hopper, jet mixer and base.We can design both one jet mud mixer and double jet mud mixer according to customer’s requirements. The galvanizing treatment adopts for the base, hopper, which has the property of anti-rust. Therefore, the life span of the whole unit will be much longer.
Brightway jet mud mixer is widely used in oil and gas drilling, CBM drilling, HDD in Thailand, Russia, Middle East, Indonesia,Australia, Venezuela etc. Good quality and best service will be always what we insist. Choosing us to be your co-partner on jet mud mixer will be your wise choice.
1. Material: Iron Q235B from BAOSTEEL with quality certificate
2. Electric components: The well-known brands as Siemens, Schneider or ABB.
3. Motor: Adopt Nanyang or other national famous brand explosion-proof motor
4. Painting: Anti-rust treatment: Galvanizing treatment for the base, hopper and the pipes.
Brightway Jet Mud Mixer Parameters
Model | BWSLH150-50 | BWSLH150-40 | BWSLH150-35 | BWSLH100-25 |
Matching Pump | SB8×6-13J(55Kw) | SB6×5-13J(45Kw) | SB5×4-13J(30Kw) | SB4×3-11J(15Kw) |
Capacity | 240m³/h | 180m³/h | 120m³/h | 60m³/h |
Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
Inlet | 150mm | 150mm | 150mm | 100mm |
Nozzer Caliber | 50mm | 40mm | 35mm | 25mm |
Hopper Diameter | 750×750mm | 750×750mm | 600×600mm | 500×500mm |
Burden Speed | ≤100Kg/min | ≤80Kg/min | ≤60Kg/min | ≤40Kg/min |
Density | ≤2.8g/cm³ | 2.4g/cm³ | ≤2.0g/cm³ | ≤1.5g/cm³ |
Viscosity | ≤120s | ≤120s | ≤80s | ≤60s |

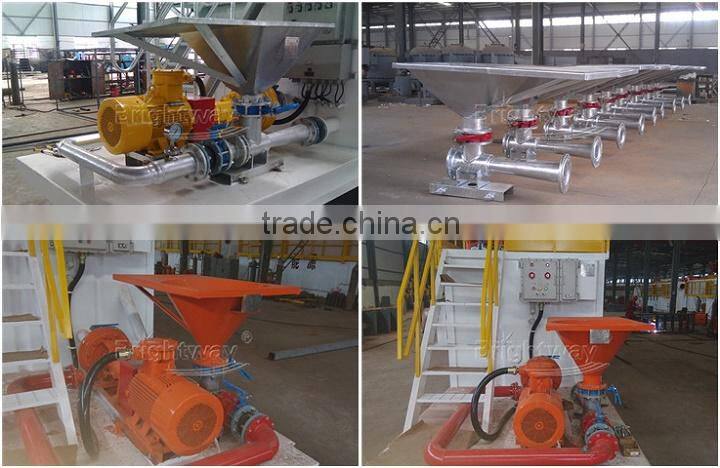

Brightway Jet Mud Mixer Display
Company Profile
Xi'an Brightway Energy Machinery Equipment Co., Ltd. is specialized in the manufacture of the mud solids control equipments and the complete set of solids control system. We focus on: 1) Oil and gas drilling mud system 2) HDD drilling mud recycling systems 3) CBM drilling mud cleaning systems 4) Underground engineering systems 5) Geothermal well engineering systems 6) Environment & waste mud treating systems Brightway mud solids control equipments: Shale shaker, vacuum degasser, mud cleaner, desander cleaner, desilter cleaner, decanting centrifuge, sand pump, submersible slurry pump, mud agitators, self-suction sand pump, jet mud mixer, mud gas separator, mud gun, screw pump, shear pump, flare ignition device, oil tank, water tank, and mud tank, etc.
