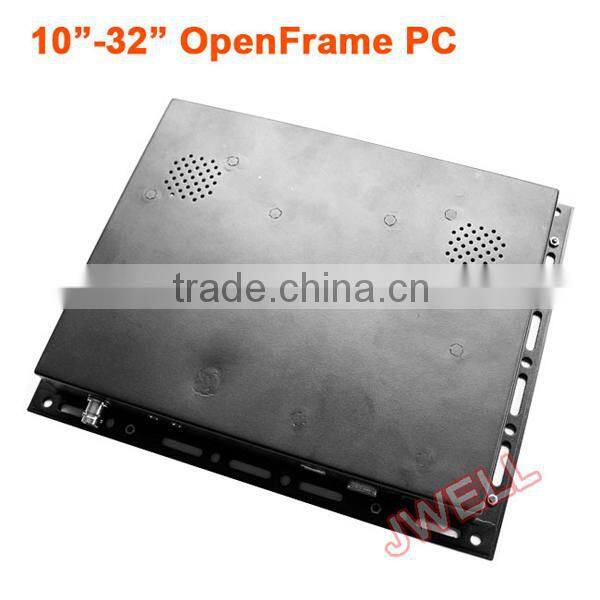

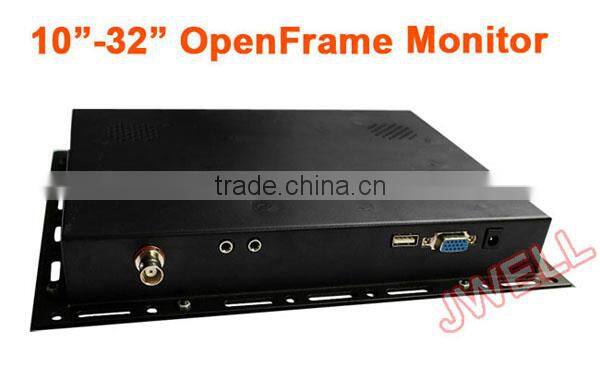

10 Inch Open Frame Monitor,Pos machine monitor with VGA HDMI BNC touch screen

Specifications

Factory offer Industrial 7" / 8"/ 10"/ 12" / 15" / 17" / 19"/ 22" /

26" / 32" Open frame LCD Monitor with/without Touch screen

Support OEM

Model Number: OP-104M

Open frame monitor 10 inch TFT LCD monitor for advertsing

With AV/VGA/HDMI/DVI/TOUCH SCREEN Optional

Metal frame size: 269.6X217.6X35mm

Description:
1)  10.4 inch TFT touch screen monitor
3)  Display type:  10.4" Active Matrix TFT LCD ( 4:3)
4)  Active display area: 152.4(H) X 91.44(V) mm
5)  Resolution: 1024 x 768 @ 75Hz max
7)  Pixel pitch: 0.1905(W) X 0.1905(H) mm
8)  Pixel response time: 12ms
9)  Colors: 16.7 million
10) Brightness: 400 cd/m2
11) Contrast:  500:1
12) Viewing angle horizontal (left/right): 170° (85°/85°)
    (From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
13) Backlight lamp life hours: 50,000
14) Input video format:  Analog RGB, NTSC/PAL/SCAME(AUTO)
15) Touch screen Interface: USB
16) Touch response time Serial/USB: 10.4ms
17) Touch sensitivity: Fixed
18) Operating temperature:-10°C - 60°C
19) Storage temperature:-20°C - 80°C
20) Power Supply: AC 110-240V, DC 12V, 50-60 Hz
21) Power Consumption: <10 W Typ
22) Gift box Weight: 4.5kg
23) Warranty: 1 year
24) Remote control

Specification:
1) 4 wires resistive touch-screen interface with high Sensitivity (USB port)
2) Standard VGA input (15 pin D-SUB/USB) and HDMI input can match with PC, GPS and security systems
3) 2 RCA video input can match with VCD, DVD and camera
4) RGB input
5) Touch-screen for PC display
6) Built-in speaker/amplifier and earphone jack
7) Operating Systems:  DOS/Windows 9X, ME, 2K, XP, 7, Vista, NT, CE
   / LINUX / Mac,etc.


Accessories
1. USB cable
2. VGA cable

3. Remote controller
4. adapter
5. Software CD
6. English user manual
7. Touch Pen
8. Metal case
