Simple Design Electrical IC Key Door Lock for Rental House(LY09BM8B1)

Specifications

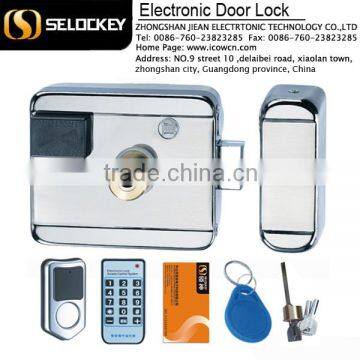

electric mechanical key body door lock:

electric mechanical key body door lock inner structure:

electric mechanical key body door lock keys:

electric mechanical key body door lock front panels:

back of electric mechanical key body door lock:

Product Name: simple design electrical IC key door lock for rental house(LY09BM8B1)

Product Model: LY09BM8B1
Product Group: Electronic door lock--Multi-function electronic lock

Features:
¤ Front panel for card swiped is 304 stainless steel, anti-rust and could read card under water.
¤ Using Mifare 1 S50 key, with double sides card readers.
¤ 2mm thicknesssteel lock body, full-steel thicken lock tongue, metal gear.
¤ Imported brushless motor, mute, door sensor(hall sensing detection) to automatically lock.
¤ Built-in backup 4*AA batteries to ensure power supply while power cut off.
¤ Double "E" mechanical lock cylinders.
¤ Using DC12V power supply.
¤ Built-in wireless receiving module, it can receive IV programming control.
¤ Adopted brushless stepper motor could completely overcome large drive current caused by blocked.
¤ To eliminate common DC motor commutator brush spark and life expectancy of the problem, make the circuit work more reliable.

Technical Data
Power Supply: DC11-18V, *1A
Static current: < 30uA(6V)
External power supply static current: <20mA
Dynamic Power Supply: < 280mA.
Working temperature: -40 ° C ~ +70° C
Working humidity: ≤ 95%
TM/remote control quantity (PCS): 1010
Lock signal line resistance: < 6 Ω
Service life: > 1 million times
Anti surge: IEC801-5 standard
Immunity: IEC801-5 standard
Length of the lock tongue sticking out≥ 20 mm, fit the GA/T73-94-5.1.6 B level standard

Emergency openning:
A. Master card
B. Mechanical key
C. Built-in backup battery ensure power supply to swipe card.

Application:
electric mechanical key body door lock is widely unsed in Building intercom, rental housing, office, factory, home security etc.

Easy installation:

Packing:

Neutral packing or color box packing.
Carton box with tape, 12PCS/CNTS, GW: 20KG, 350*260*240MM, 0.022CBM.

Delivery:
Sample: 1-3days
Order: 3-10days

HOT SIMILAR LOCK:

electronic door locks we could produce:

TM1990D ibutton card key electronic door lock;

TM1990D ibutton card key and password electronic door lock;

TM1990D ibutton card key electronic door lock with door-open records for door access control system;

TM1990D ibutton card key electronic linkage door locks;

Mifare One smart card key electronic door lock;

wireless remote control electronic door lock;

electronic rim door lock;

electronic mute door lock;

Smart cards we could produce:

TM card: DS1990A, RW1990, DS1991, DS1971, DS1963...
RFID card, EM4100, EM4305, T5567 / T5577, Mifare 1, Mifare S50, Mifare S70...

electronic cabinet locks we could produce:

TM1990A ibutton card key electronic cabinet lock;

EM4100 ID card key electronic cabinet lock;

Mifare One smart card key electronic cabinet lock;

Group cabinet locks network solution;

electronic door locks network solution;

Zhongshan JIEAN Electronic Technology Co., Limited was set up in 2000. We mainly produce TM1990A (such as information card, electronic keys, and touch memory keys) EM4100,T5577,T5567,T5557 smart cards, and electronic cabinet locks, electronic door locks,magnetic locks,access control system and related products.

Thanks for your view, need more information about electrical IC key door lock,please send us an inquiry.
