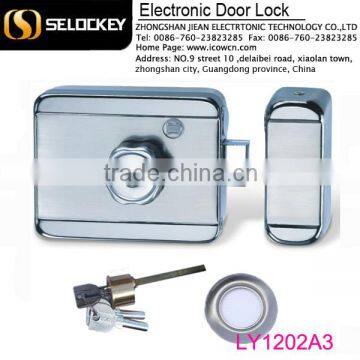

Unique Electronic Door Cylinder Lock for Rental House(LY1202A3)

Specifications

electronic silence mute lock:

electronic silence mute lock inner structure:

 back of electronic silence mute lock:

Product Name:  unique electronic door cylinder lock for rental house(LY1202A3)

Product Model: LY1202A3
Product Group: Electronic door lock--mute lock

Features:

¤ Electronic mute lock, motor lock, hall sensor and auto-lock.
¤ Lock body is 2 mm thickness steel plate, full steel lock tongue, brushless motor, metal gear.
¤ "E" mechanical lock cylinder. It will be safer.
¤ Using DC12V power supply.
¤ The full metal reduction gear mechanism so that the lock body could be higher intensity, greatly extend the service life.
¤ Adopted brushless stepper motor could completely overcome large drive current caused by blocked.
¤ To eliminate common DC motor commutator brush spark and life expectancy of the problem, make the circuit work more reliable.

Technical Data
Power Supply: DC11-18V, *1A
Static current: < 30uA(6V)
External power supply static current: <20mA
Dynamic Power Supply: < 280mA.
Working temperature: -40 ° C ~ +70° C
Working humidity: ≤ 95%
Service life: > 1 million times

Length of the lock tongue sticking out ≥ 20 mm
Anti surge: IEC801-5 standard
Immunity: IEC801-5 standard
Length of the lock tongue sticking out≥ 20 mm, fit the GA/T73-94-5.1.6 B level standard

Application:
Our electronic silence mute locks are widely unsed in door access cotrol system,building intercom, rental housing, office, factory, home security etc.

Easy installation:

Packing:

Neutral packing or color box packing.
Carton box with tape, 12PCS/CNTS, GW: 19KG, 350*260*240MM, 0.022CBM.

Delivery:
Sample: 1-3days
Order: 3-10days

Smart cards we could produce:

TM card: DS1990A, RW1990, DS1991, DS1971, DS1963...
RFID card, EM4100, EM4305, T5567 / T5577, Mifare 1, Mifare S50, Mifare S70...

electronic cabinet locks we could produce:

TM1990A ibutton card key electronic cabinet lock;

EM4100 ID card key electronic cabinet lock;

Mifare One smart card key electronic cabinet lock;

Group cabinet locks network solution;

electronic door locks network solution;

electronic door locks we could produce:

TM1990D ibutton card key electronic door lock;

TM1990D ibutton card key and password electronic door lock;

TM1990D ibutton card key electronic door lock with door-open records for door access control system;

TM1990D ibutton card key electronic linkage door locks;

Mifare One smart card key electronic door lock;

wireless remote control electronic door lock;

electronic rim door lock;

electronic mute door lock;

Customized is also available.

Zhongshan JIEAN Electronic Technology Co., Limited was set up in 2000. We mainly produce TM1990A (such as information card, electronic keys, and touch memory keys) EM4100,T5577,T5567,T5557 smart cards, and electronic cabinet locks, electronic door locks,magnetic locks,access control system and related products.

Thanks for your view, need more information about door cylinder lock,please send us an inquiry.
