China Supplier Hot Product Software Control RFID and Password Locker Lock

Specifications

Electronic cabinet lock,swipe card and code cabinet locks (M1-10BML):

Note: in order to protect the intellectual property, we decide to charge the customers with software fee, and pls send us inquiry before you place an order, or else we won't send the products. Thanks for Cooperation.

♦Features:

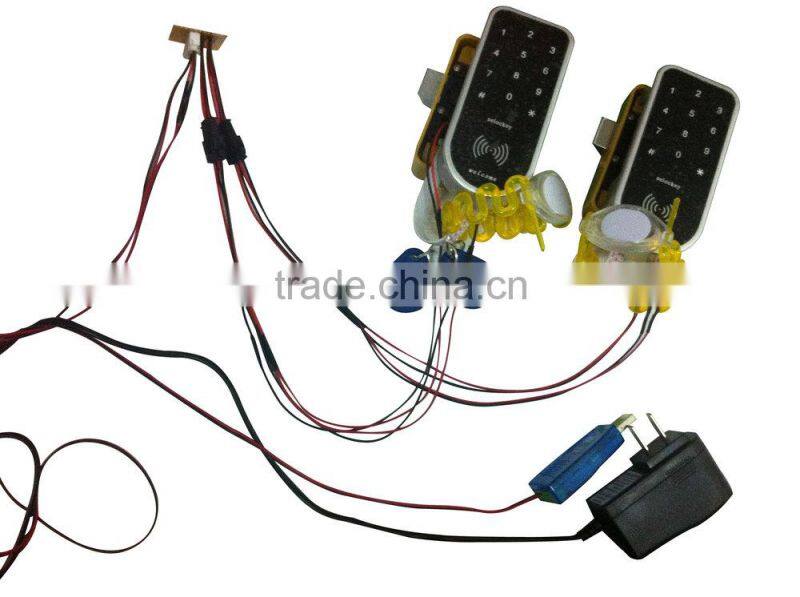

1.easy to connet by RS485 line.

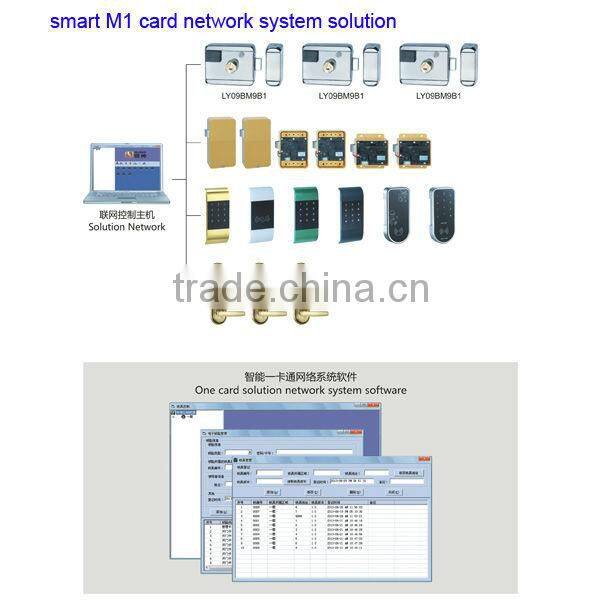

uld operate by computer in real-time and read records; can initialize/setting locks directly .
3.Most of the working can been operated by the management software or keypad. For example: Authorize or log-out the card, inquiry the switch status and the unlocking record, remote control unlock or locking the doors or cabinet. The operation is simple and easy.
4. Greatly reduce workload,staffs and cost. (just use one keypad or software can control so many cabinets in the same time)
5. Three ways to unlock: M1 card, password,remote-control(computer network )
6. Emergency opening:external battery supply,management computer

♦Material:

-lock tongue: wide and thick.

-front panel: steel glass and ABS ,

-silver border and steel made of glass silver diagram+Zinc alloy

-back lock body : plastic + spraying environmental paint

-Size: front panel 115 * 52 * 20mm; the lock body 125 * 65 * 25mm

-Weight: 220g

-Operating voltage: 6V

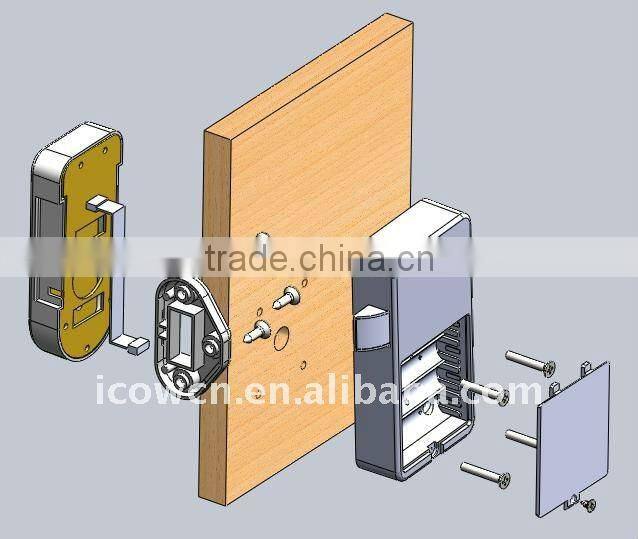

A set: front panel + lock body with bolt + 1 pc card key + nails+instructions

♦Card key's functions:

1. Card type: RFID (EM4100/ MF1) smart card,duarable and sensitive touching.

2. Unlock ways: swipe single card or double cards or code to work.

                         swipe card and input code at the same time to work.

3. Set card method: users can set different cards according to needs, use System card add, delete and change Management card, Waiter card and Guest card

4. Card class: four classes - System card, Management card, Waiter card, Guest card, easy to understand and operate.

♦Passwords using guidance:

  NOTE: “SSSS” is system password,”XXXX” is management password,”YYYY” is user password. Password is 4-8 numbers,start with “#” and end with “*”, and the default system password is “1234”.

1  Unlock with password

 Input password “#SSSS*” or “#XXXX*” or “#YYYY*” can unlock under the corresponding password mode.

2 Modify password

 Modify system password with system password: Input “#SSSS#3#new system password*”.

 Modify management password with management password: Input “#XXXX#3#new management password*”.

 Modify user password with user password: Input “#YYYY#3#new user password*”.

......more details in our instruction

♦Technical parameters:

Operating voltage: 6 V (or 4 piece AA batteries)

Sensing distance :> 2.5 cm

Static power consumption: <4 μA

Operating: <300 mA

Alarm Voltage: <4.6 V

Emergency unlocking: linked external power supply to made it works when run out of batteries.

For agencies, businesses, schools, hotels, supermarkets, filing cabinets, lockers, sauna cabinets, bath cabinets, bank loan, safe.

k

Payment:

If the total amount is less than 500USD,we prefer to accept PayPal or Western Union;for big amount we accept bank transfer.

Shipment:

Normally we will use UPS,DHL,FEDEX or EMS express.It usually takes 3-7 working

days depending on the countries deliver to. We can also arrange other shipment way

per your requirement and instrution ,such as sea shipment,air shipment ,etc.

Warranty:

Warranty for one year,maintenance forever,change within 3 months because of productquality.

^{_{Welcome to send us an inquiry, We will reply to you within three working hours!}}
