With 2016 Latest Touch Screen MIC-ZF12 Linear Automatic Bottle Filling Capping and Labeling Machine

FOB Price

USD $11,000 - $39,000 / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port Shanghai/Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage, Chemical, Commodity, Food, Medical
Packaging Type	Barrel, Bottles, Cans, Capsule	Packaging Material	Glass, Plastic, Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V	Power	500W single phase
Place of Origin	Jiangsu, China	Brand Name	MIC
Model Number	MIC-ZF12	Dimension(LWH)	200013002200mm
Weight	800kg	Certification	CE Certificate
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

The Over View of Whole MIC-ZF12 Linear Automatic Bottle Filling Capping & Labeling Machine

INTRODUCTION OF MACHINE PARTS

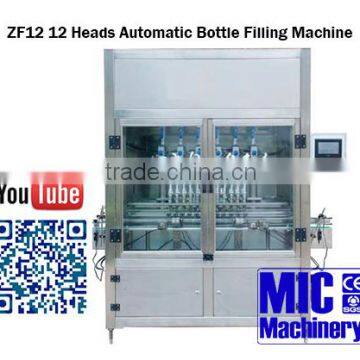

1. MIC-ZF12 Automatic Bottle Filling Machine

This MIC-ZF12 Automatic Bottle Filling Machine adopts serve ball-screw system to drive the piston cylinder. It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc.

Main Features

1) Simple structure in linear type ,easy in installation and maintation

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts

3) Efficient and precise, no bottle no filling

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine

Parameter of MIC-ZF12 12 Nozzles Bottle Filling Machine
Filling nozzles		12
Filling volume		0.5-5L
Filling form		Piston type
Speed		4500BPH (base on 250ml)
Accuracy		±1%
Material		Rack SUS304/316
Air pressure		0.6-0.8Mpa
Power		2.8KW/380V
Conveyor width		152mm
POM chain height		750±25mm

Detailed Images

Machine Parts

Name: PLC Touch Screen

Brand: Siemens

Original: Japan

Touch screen uses to control the machine. It is imported from Japan. Keyboard of this type of touch screen is concise and sensitive.

Machine Parts

Name: Piston Filling Head
Brand: Micmachinery
Original: China
Every filling head has anti-drip design. It promise do not waste the material. And diameter of filling head basis on the diameter of customer’s barrel’s mouth.

Machine Parts

Name: Conveyor Belt
Brand: Micmachinery
Original: China
The conveyor belt is assembled by POM or PVC chain board to connect the machine together. The speed of transmission can adjust by PLC touch screen.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Website:
YouTube Channel: /channel/UCN3WHS0RI3XVJzU0VbQruIA

Packing & Delivery

Packaging
Size	200013002200mm
Weight	800KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
