Aluminum Conductor Electrical Wire BLV

A. Standard

1.Aluminum core PVC insulated PVC sheathed flat cable is made complying with the national stranded and have pass the CCC--China Compulsory Certification, which contains the recondition of national security certificate--CE.  Imports of  Safety and Quality Licensing System--CCIB.ChinaCertification Electromagnetic Compatibility--EMC

B. Product description

1. Range of application: fit A.C

2. Rated voltage:450/750V

3. The permissible continuous operating temperature of wire shall not exceed 70°c and the installation temperature of wire shall not be lower than -15°c

4. Standard: ISO 9001

5. Core:  1

6. Range of nominal cross section:1.5 ~400mm2

7. Conductor material: aluminum
8. If the external diameter (D) of the cable is less than 25mm, the maximum bending radius shall not be less than 4D;

C. Application:

This product applies to electrical appliances, instrument and telecom device with rated voltage up to and including 300/500V. Maximum temperature allowance when the cables are for long term use : temperature shall not exceed70°C.

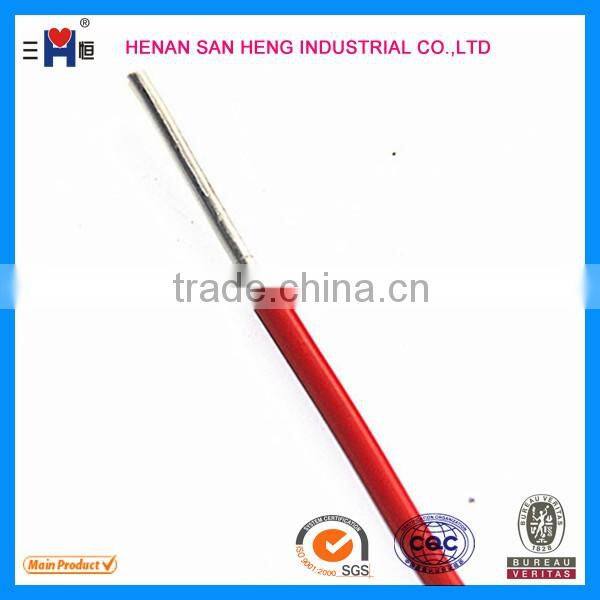

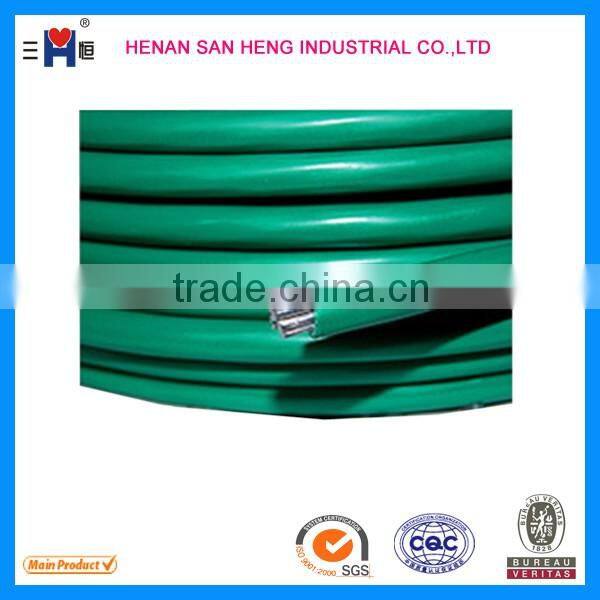

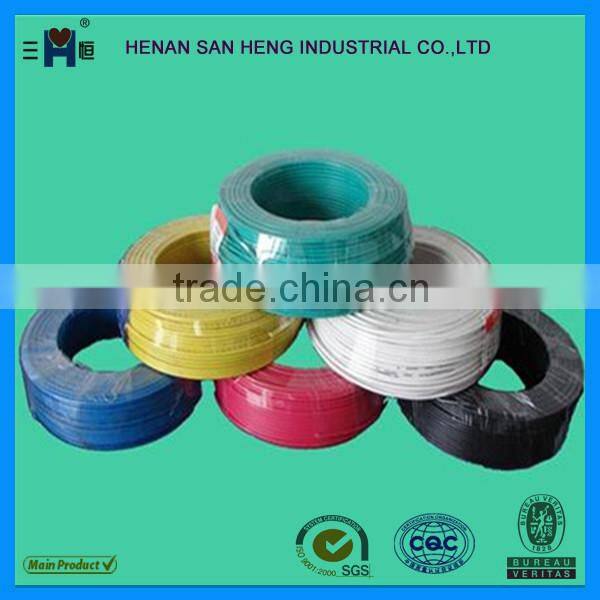

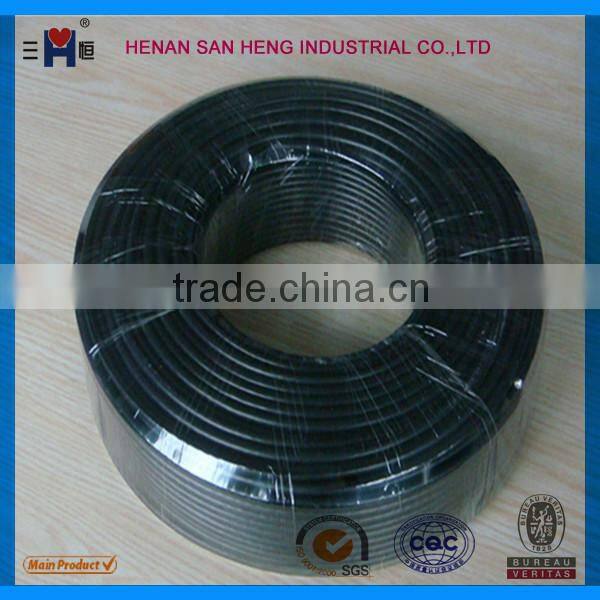

 Product pictures of     Aluminum conductor electrical wire BLV

Packing of     Aluminum conductor electrical wire BLV
