Aluminium Stage Truss

Specifications

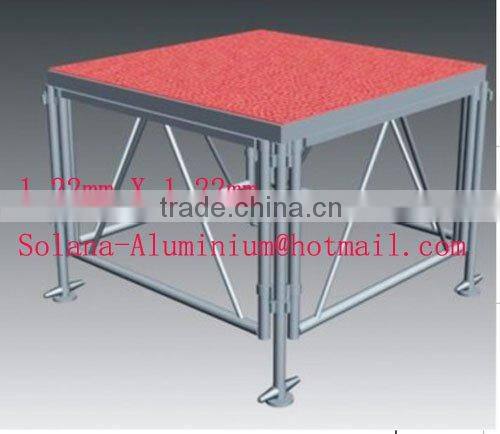

Aluminium frame and wood stage

Materials:

aluminium alloy 6063 T5

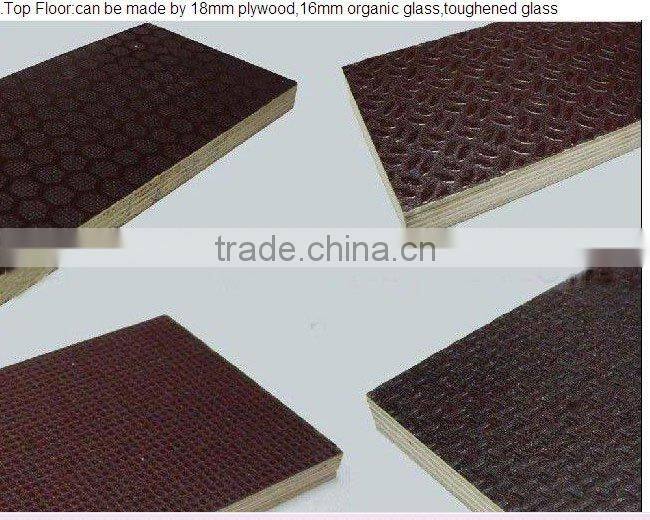

Top surface

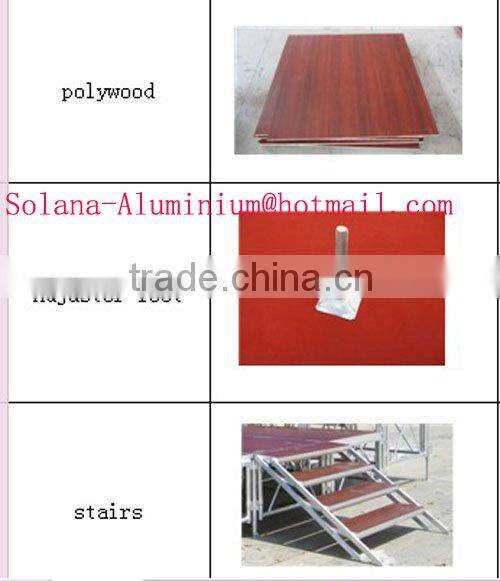

Can be 18mm  polywood,  or 16mm organic glass ,toughen glass

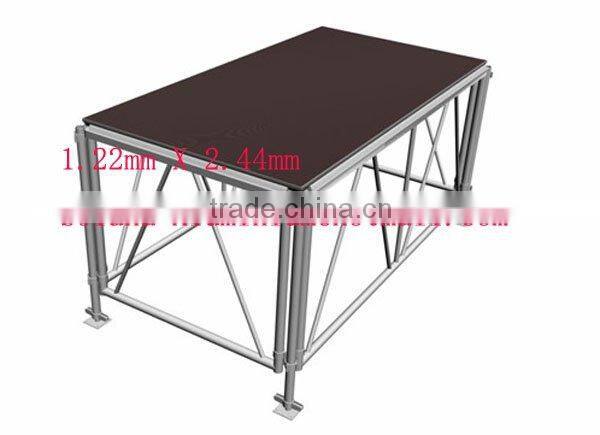

Single Stage size

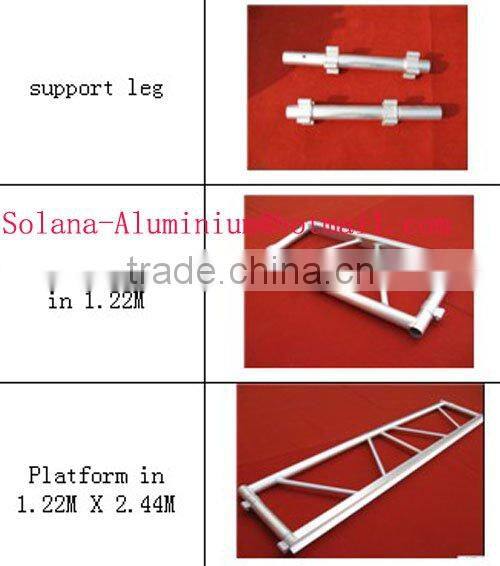

1.22 X 1.22M.    1.22 X 2.44M(you can put several pieces together or divided )

Adjust height

 0.35:  0.6-1M  0.8-1.2M(you can rise to 0.8M or dwon to 0.8M)   1.4-1.8M (you can rise to 1.8M or down to 1.4M)

Frame Main tube

 50*3MM

Frame brace tube

25*2mm

Weight-Loading

 700kG/m2

Feature

This kind of combined stage system are often used for indoor and outdoor events,wedding,party,display,booth,exhibitions and other entertainments applications

Characteristics

Easy to move , assemble and disassemble

Height can be adjust according to the different occasion

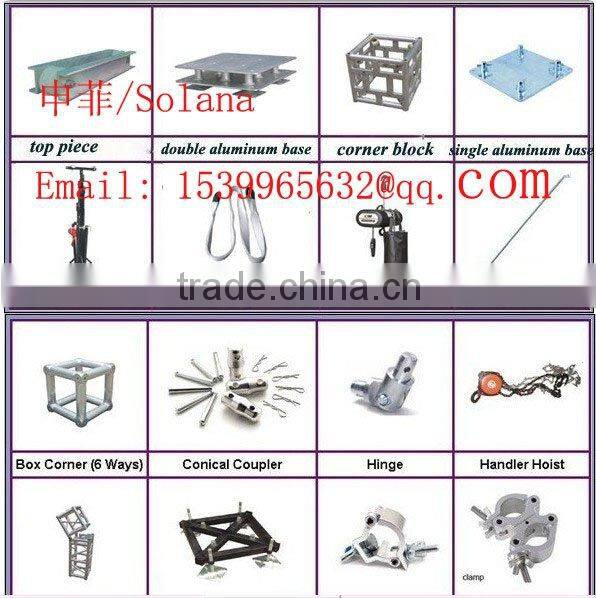

Our factory producer all kinds of lighting truss ,speaker layer truss,audio truss also

Truss materials

Hard pressed extruded aluminium 6061/T6

Length available

1M / 2M / 3M / 4M

Truss dimension available

1. L300mm X W300MM X thickness 3mm
2. L400mm X W400MM X thickness 3mm
3. L300mm X W400MM X thickness 3mm
4. L450mm X W450MM X thickness 3mm
5. L300mm X W300MM X thickness 3mm
6. L500mm X W600MM X thickness 3mm
7. L500mm X W600MM X thickness 3mm
8. L520mm X W760MM X thickness 3mm
9. L600mm X W700MM X thickness 3mm

Main tube:  50mm X 3mm

Brace tube:  30mm X 3mm

Shape

Can be Square / Triangle / Layer /Circle

usage

We can design diverse shapes to hang audio, speaker, lighting and so on

Features

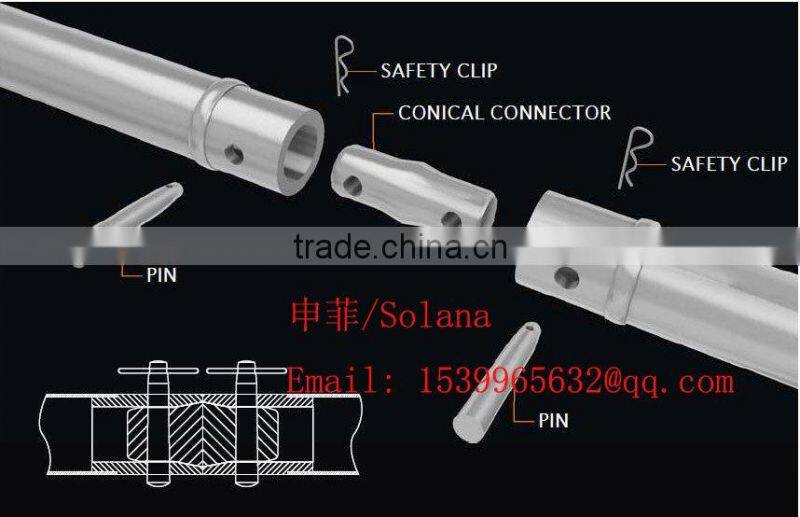

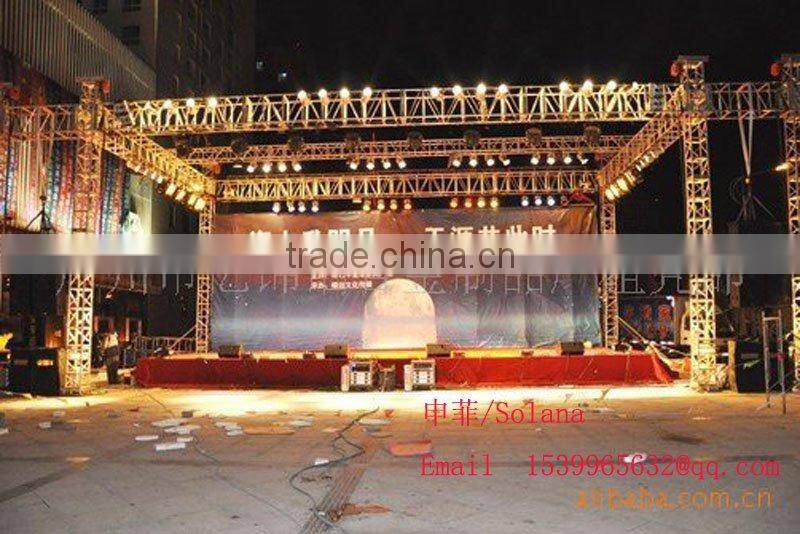

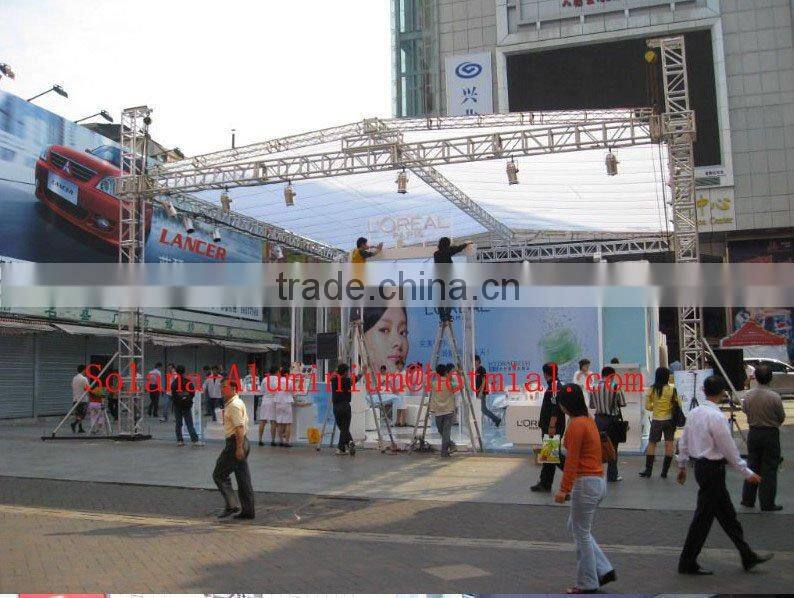

Lighting truss hanging lights, suitable for displays, exhibition, performance show, concert, event etc.. Finish in a spigot or screw as your request. Convenient for set up and transportation

Weight -loading  capacity

200-800KG/Meter according to the truss size

Characteristic

All kinds of truss can be retread and reused because it have high corrosion resistence, non-rust with high technical welder and good quality of alloy aluminium tube. It can help you to save the expendition

Certification

CE,   TUV,  ISO9001  certificated

We producer stage also, you can set a corresponding size of stage below the truss.
