GHO36T5VH GPH846T5L/HO GPH846T5VH/HO

Specifications

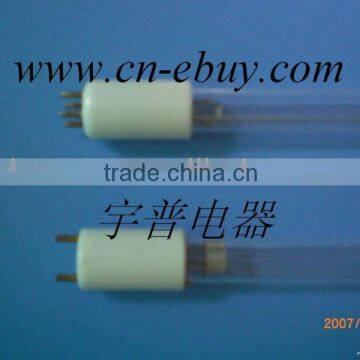

Hight output  ozone and ozone free lamp.

The putout the ultraviolet more than 2 times compared with the normal UV lamp in the same length!

Can reduce the packing cost and freight cost!

Applications:

disinfect pure water, Water disinfection equipment, disinfect pure water, normal water and medical water!

Model Tube diameter (mm) BF-BF (mm) Arc legth

(mm) Power

(W) Current

(A) Voltage at

50/60Hz

(V) Voltage at

High Freq

(V) UV Output

at 254nm Rated Life

µW/ 2 W Standard Life Version Long Life Version

High Output Quartz Yup Lamps

GPH436T5L/HO 15 436 360 48 800 70 60 120 13 9,000 13,000

GPH436T5VH/HO 15 436 360 48 800 70 60 120 13 9,000 13,000

GHO36T5L 15 842 755 87 800 125 110 260 28 9,000 13,000

GHO36T5VH 15 842 755 87 800 125 110 260 28 9,000 13,000

GPH846T5L/HO 15 846 767 90 800 127 113 265 29 9,000 13,000

GPH846T5VH/HO 15 846 767 90 800 127 113 265 29 9,000 13,000

GPH893T5L/HO 15 893 815 95 800 135 120 270 30 9,000 13,000

GPH893T5VH/HO 15 893 815 95 800 135 120 270 30 9,000 13,000

GHO64T5L 15 1554 1,421 155 800 220 195 380 45 9,000 13,000

GHO64T5VH 15 1554 1,421 155 800 220 195 380 45 9,000 13,000

GPH1149T12L/HO 38 1149 985 90 1250 90 75 325 35 10,000 13,000

GPH1149T12VH/HO 38 1149 985 90 1250 90 75 325 35 10,000 13,000

  GPH436T5L/HO GPH436T5VH/HO GHO36T5L

Specifications: TROJAN UV MAX LAMP, TROJAN REPLACEMENT, TROJAN UV MAX C4 D4, WONDER LIGHT, Ultraviolet Germicidal Lamp, Water Treatment, Air Purifier

Trojan UV Lamp for UVMax-A 602803

Trojan Quartz Sleeve for UVMax-A 602730

O-Ring for Trojan UV Max A-F, Pro7 / 15, UV700 2045

Sleeve Bolt for ALL Trojan UV Max models 602665

Trojan UV Lamp for UVMax-5B 602804

Trojan UV Lamp for UVMax-14 C/D/D Plus 602805

Trojan Quartz Sleeve for UVMax-5B 602731

Trojan Quartz Sleeve for UVMax-14 C/D/D Plus 602732

Trojan UV Lamp for UVMax-14 C/D/D Plus 602805

Trojan UV Lamp for UVMax-28E/E Plus/Pro7 602806

Trojan UV Lamp for UVMax-47F/F Plus/Pro15 602807

Trojan Quartz Sleeve for UVMax-28E/E Plus/Pro7 602733

Trojan Quartz Sleeve for UVMax-47F/F Plus/Pro15 602734

Trojan UV Lamp for Aqua UV505 650149

Trojan UV Lamp for Aqua UV507 UV050

Trojan UV Lamp for Aqua UV602 650144

Trojan UV Lamp for Aqua UV605 / 605 Plus 650143

Trojan UV Lamp for Aqua UV608 /608 Plus 650142

Trojan UV Lamp/Sleeve for Aqua UV612 /612 Plus 650141

Trojan UV Lamp/Sleeve for Aqua UV702 / Advantage 2 650140

Trojan UV Lamp/Sleeve for Aqua UV705 / Advantage 5 650139

Trojan UV Lamp/Sleeve for Aqua UV708 / Advantage 8 650138

Trojan UV Lamp/Sleeve UV776 for Aqua UV712 / Advantage 12 650137

Trojan UV Quartz Sleeve for Aqua UV507 UV051

Trojan UV Quartz Sleeve for Aqua UV602 650148

Trojan UV Quartz Sleeve for Aqua UV608 650147

Trojan UV Quartz Sleeve for Aqua UV608 /608 Plus 650146

Trojan UV Quartz Sleeve for Aqua UV612 /612 Plus 650145

BL602803 UV MAX LAMP A USD12/PC

BL602804 UV MAX LAMP B USD13/PC

BL602805 UV MAX LAMP C/D USD14/PC

BL602806 UV MAX LAMP E USD15/PC

BL602807 UV MAX LAMP F USD15.5/PC

PRICES DEPEND ON QUANTITY

BL602730 UV MAX A QUARTZ SLEEVE

BL602731 UV MAX B QUARTZ SLEEVE

BL 602732 UV MAX C/D QUARTZ SLEEVE

BL 602733 UV MAX E QUARTZ SLEEVE

BL 602734 UV MAX F QUARTZ SLEEVE

TROJAN UV MAX O RING

  GHO36T5VH GPH846T5L/HO GPH846T5VH/HO
