Second Hand Disposable Paper Plate Make Equipment With Advanced Technology

Specifications

1.machine description

     BJ -400P paper plate forming machine is designed according to the market requirement .  with the function of full automatic sucking paper,feeding paper,sealing,forming ,and temperature control , automatic accounting and so on .it is a ideal equipment to produce kinds of paper plate .

    BJ-400 has combined with pneumatic and mechanism together renewedly,compare with the traditional plate machine , it has much higher speed ,more performance steadily, and much safer to operation .it adopts more efficiency cylinder ,the largest air press can reach 3t.through mould changing , it can produce different shapes and sizes dish &plate.

2.main technical data

1. plate specification : 2 inch-11inch (diameter, round paper plate) ,mould can be changed
2. material of plate : 100—1000 gsm   (paper,white and grey paper,white and card paper,combined aluminum foil paper and others )
3. product speed : 65-80 pcs/ min
4. total power : 220V / 380 V , 50HZ, 3KW
5. weight:600kg
6. packing size: L 1430x W 1600 x H 1900 mm
7. air supply requirement : working pressure: 0.8Mpa,

gas volume:1 m³/min

AIR CYLINDER MAIN TECHNICAL DATA :

MPT-63-150-3T-10

Air requirement: 0.8 m3/min

Running of cylinder:150mm

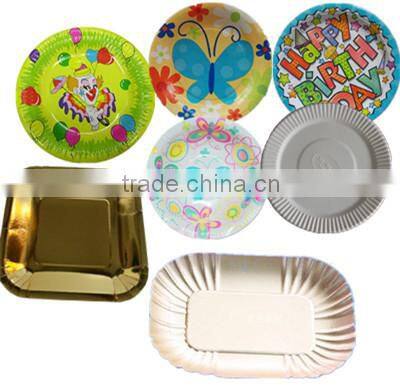

3.paper plate samples

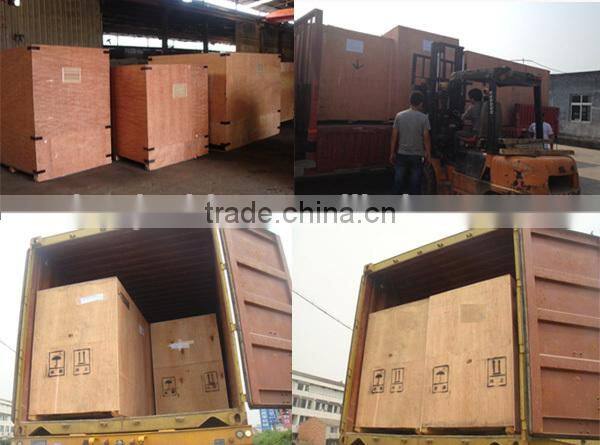

4.packing and shipment

 25 days will be shippment after received the deposits

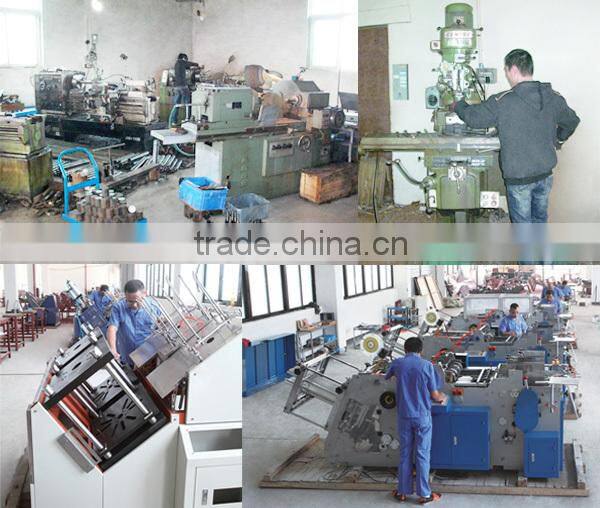

ing shop

  6.Guarantee

      one year; during this period ,in case of any parts damaged by machineself, the seller will repair/replace/send the spare parts for free. after one year,the seller will supply the spare parts to buyers as the cost. Pls note , the courier costs should be cover by customer.

 7.  installation and test running of machine

     we will send our technician to install and test run the machine and train operation ,according to customer’s requirements. all expense abroad including getting visa,2-way air tickets,food .hotel.local traffic ,translator, salary usd100/day should be covered by buyer.
