Automatic Feeding Hydraulic Cutting Machine

Automatic feeding Hydraulic Cutting Machine

1. product description

    it is suitable to scissor up leather ,plastic ,nylon ,paper board ,sponge  and synthetic fibres etc kinds of products ,especially fit for cutting one layer or multilayer material with hydraulic press .

2.main features

1),The machine is widely applicable to cutting of various nonmetal materials by die cutter.
2),Double oil cylinder and precise double-crank connecting rod balancing mechanism are adopted,which can guarantee that the cutting depth at every cutting position is same.
3),With special setting mechanism, and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
4),The pressing board of cutting carries out slow cutting when it contacts the die cutter,which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5),The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
6),Products of special specifications can be sustomized.

3.main technical data

    1)  max press : up to 40tons (hydraulic press)

     2)  stroke adjustment: 10---130mm

     3) distance between pressing seissoring speed :55--160mm

     4) working table area :600x1600 mm

     5) weight :2500kgs

     6) packing size : 2350x1300x1500 mm

     7) power : 380v ,50hz, 3.3 kw

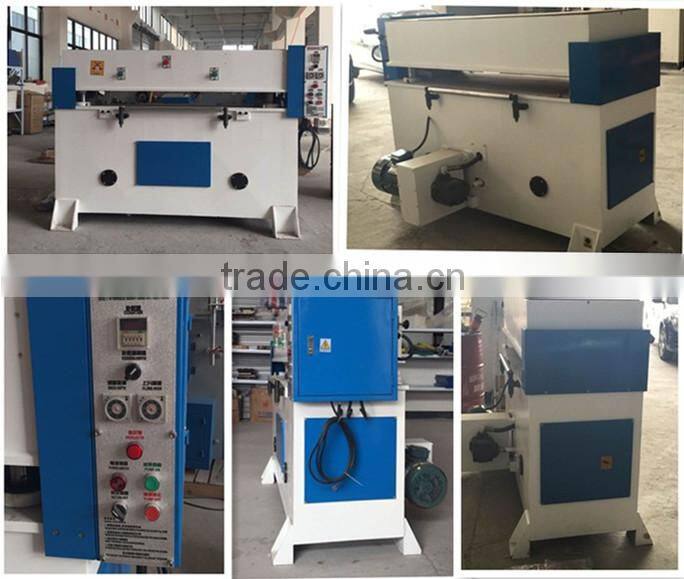

   4. machine photos

5. packing and shippment

6.Packing :as standard for export(wooden packing or iron tray packing )

   MARK: the marks on the wooden box should be according to the buyer’s requirements.

7. Terms of payment :

             By 100% T/T , 30 % of deposit should be paid before produce ,then 70% of balance should be paid before shipment

8.  Delivery time  : within 20--25 days after get the deposit.

               All moulds sizes according to customer’s request.

9.Guarantee:  one year .during this period ,in case of any troubles of the machine being discovered is not due to bad operation,and caused by machineself,the seller will repair/replace/send the spare parts for free. after one year,the seller will supply the spare parts to buyers as the cost.

10.  Installation and test running of machine:

       we will send our technician to install and test run the machine and train operation ,according to customer’s requirements. all expense abroad including getting visa,2-way air tickets,food .hotel.local traffic ,translator ,worker salary (usd100/day) etc should be covered by buyer.

  SERVICE

Contact via email feed back asap(within 36hrs)
To solve the problem with videos/pictures
Engineer can be distributed into overseaas required
