Tire Reclaimed Rubber; Reclaim Rubber Plant
- Shanghai
- T/T
You May Like
-
Butyl Reclaim Rubber; Reclaim Rubber Machinery
-
Fine Reclaimed Rubber; Reclaimed Rubber Equipment
-
Refiner Reclaim Rubber Making Machine Providing Reclaimed Rubber Production Line
-
Reclaimed Rubber Mixing Mill; Reclaimed Rubber Production Line
-
High Tensile Strength Reclaimed Rubber Making Machine
-
Rubber Refinning Mill Machine
Product Details
| Condition | New | Type | Other, Refining Mill | |
| Place of Origin | Jiangsu, China | Brand Name | Maisun | |
| Model Number | MRM480 | Power(W) | 55000 | |
| Dimension(L*W*H) | 5300mmx2300mmx1700mm | Weight | 9600kg | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. High adaptability to the reclaimed rubber;2. Waste tyre recycling;
3. Environmental protection;
4. Reprocess
Introduction
This machine is specialized in order to adapt to the characteristics of rubber production technology research and development of a new generation of refining mill.
It has high adaptability to the reclaimed rubber,high output,high quality.
It also has the characteristic of effective energy saving,low noises and excellent environmental protection performance with a high ratio of output to input.
Characteristic

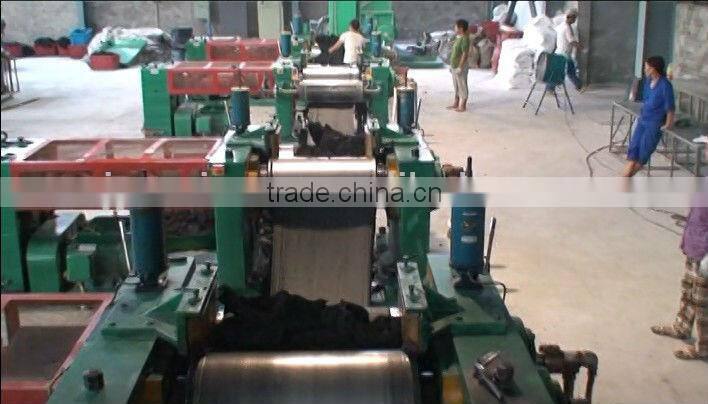

1. Refining mill is used to remove hard impurities contained in reclaimed rubber. The front and rear rolls surface are smooth, just like a waist drum shape.
2. Refining machine when in operation, can crush hard impurities contained in the rubber from the roller center to ends, gathered on the film even edge, and then used a knife to remove the impurity glued on the edge.
Tire Rubber Powder Manufacturing Process
Technical Data
| Model Number | MRM480 |
| diameter and length of the roller face(mm) | (frontφ480backφ510)x800/900 |
| friction ratio | 1:1.5(1.3) |
| Power(KW) | 55 |
| one time feeding quantity(kg) | 10~30 |
| machine weight(T) | 9600 |
| overall dimension(mm) | 5300x2300x1700 |
