devulcanizer controlled by PLC

Introduction

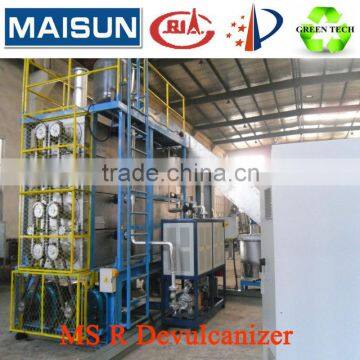

MSR Devulcanizer adds the softener to waste vulcanized rubber powder and activation, at atmospheric pressure under the condition of high temperature, makes the part of the S = C, S = S disconnected to achieve the purpose of the plasticization. Main components: the main heating system, automatic control system, cooling system and batching system,etc.

Tire Rubber Powder manufacturing Process

Characteristic

1. Environmental protection and energy saving: no waste water, waste gas, using  circulating water cooling. Plasticizing powder

consumption per ton of 100-170KW;

2. Safety: atmospheric pressure conditions of production, the operator feeding on the ground;

3. Easy operation: PLC control, man-machine interface operation;

4. Each module has a real-time measurement value of feeding, discharging, water temperature into the PLC control system;

5. Each module individually sets temperature, temperature error within ± 1 °C;

6.Using electromagnetic heating or heat conduction oil furnace in two ways;

7.Products do not stick on conveyer, no need to clean up, with production while cleaning function;

8.Process parameters of memory function, memory function formula, etc;

9.Easy installation and maintenance, safe and reliable and remote maintenance.

Technical Data
