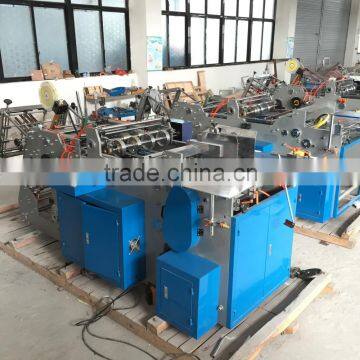

China Automatic Brown Paper Carton Making Machine With CE Certificate

brown paper carton making machine

1.machine description

     It is an ideal equipment to produce paper box such like hamburger box, chips box. Fried chicken box, kids meal box, etc.

 with firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.

2.Technical specifications:

    1). Productivity: 60-160pcs/min

    2) .Box specifications:

          Length: 100-450mm;        Width: 100-580mm         Height: 15-200mm Degree: 5° -40°;

         cardboard Material: 200-600g/m2;

         corrugated paper thickness: 1.5mm

   3).Total Power : 380V, 50HZ, 5.5KW

  4).Weight: 2300kgs

  5).Overall size : 3600*1320*1600mm
   The paper box made by this machine can be used in packing of KFC and Mcdonald. S or other
   Erecting Machine(single head) Hamburger Press printing machine
   Carton Erecting Machine(single head)

3. Work principle:

     The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and the sends it to the shaping mold, during the procedure, the cardboard has been glued an you can adjust the position of the gluing, the volume of gluing can be measured while in progress withour stopping word. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark withouot stopping production, structure: Control unit, paper feeding unit, paper transfer unit, glue spreading unit, forming unit, collecting unit.

4. products samples

 5. key parts(sell points )

       1).Electrical components we use international famous brands such as japan omron, French Schneider, Germany Siemens , delta etc import parts. And we use PLC programmable control and touch screen interface

        2). Device for feeding Water-based adhesive (glue)

 high efficiency and high precision to feeding glue and the sealing edge of the carton can be adjustable , its device design reasonable ,compact form and running steadily ,easy and convenience to clean .

  3).Finished Carton outing device

        full automatic carton outing device (feeding ,collection ,stacking),and fixxing with counting ,convenient for packing and save labors

       4).Photoelectric failure-detecting system is available, if there is no papers or paper feeding blocking , the machine will stop automaticly by itself, so, it can reduce the cost consume ,and increase more safety performance .

  6. shippment and delivery

           delivery time : 30 days shippment after received your deposits.

       packing with wooden case

    7.Guarantee

       one year .during this period ,any parts damaged caused by machineself, the seller will repair/send the spare parts for free. after one year,the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.

    8. installation and training

          if customer request, we will send our technician to install and train operation, but all costs should be covered by buyer.( including getting visa,2-way air tickets,food .hotel.local traffic ,translator ,salary usd100/day ) .

Our service:
Contact via email feed back asap(within 30hrs)
To solve the problem with videos/pictures
Engineer can be distributed into overseaas required
