IP68 UL DLC 150w Led Explosion-proof High Bay Lighting With 5 Years Warranty
- Shenzhen
- T/T Credit Card
You May Like
-
IP68 UL ATEX 70w Led Explosion-proof High Bay Lighting
-
IP68 UL ATEX 50w Led Explosion-proof High Bay Lighting With 5 Years Warranty
-
IP68 UL ATEX 90w Led Explosion-proof High Bay Lighting With 5 Years Warranty
-
IP68 UL ATEX 40w Led Explosion-proof High Bay Lighting
-
IP68 UL DLC 150w Led Explosion-proof High Bay Lighting
-
UL DLC ATEX 100w Led Explosion-proof High Bay Lighting With 5 Years Warranty
Product Details
| LED Light Source | Bridgelux/Cree/Genesis | Input Voltage(V) | 100-277 | |
| Lamp Power(W) | 150 | Lamp Luminous Flux(lm) | 13500 | |
| Lamp Luminous Efficiency(lm/w) | 90 | Color Temperature(CCT) | Cool White | |
| Working Temperature(℃) | -40, 50 | Working Lifetime(Hour) | 100000 | |
| IP Rating | IP68 | Certification | C-tick, CCC, CE, CQC, EMC, FCC, LVD, PSE, SAA, UL | |
| Emitting Color | White | Base Type | FESTOON | |
| Place of Origin | Guangdong, China | Brand Name | CESP | |
| Model Number | CES-J |
Product Description
IP68 UL ATEX 150w led explosion-proof high bay lighting with 5 years warrant
Why CESP?
1. For hazardous area lighting products, it is fairly important to choose specialized manufacturer because the security for hazardous area lighting is essential.
2. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer since the establishement in 2007, with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.
3. Besides, we'll soon get the UL844(class 1 division 2) explosion proof certification, which means we'll be the only manufacturer who owns these qualifications at the same time.

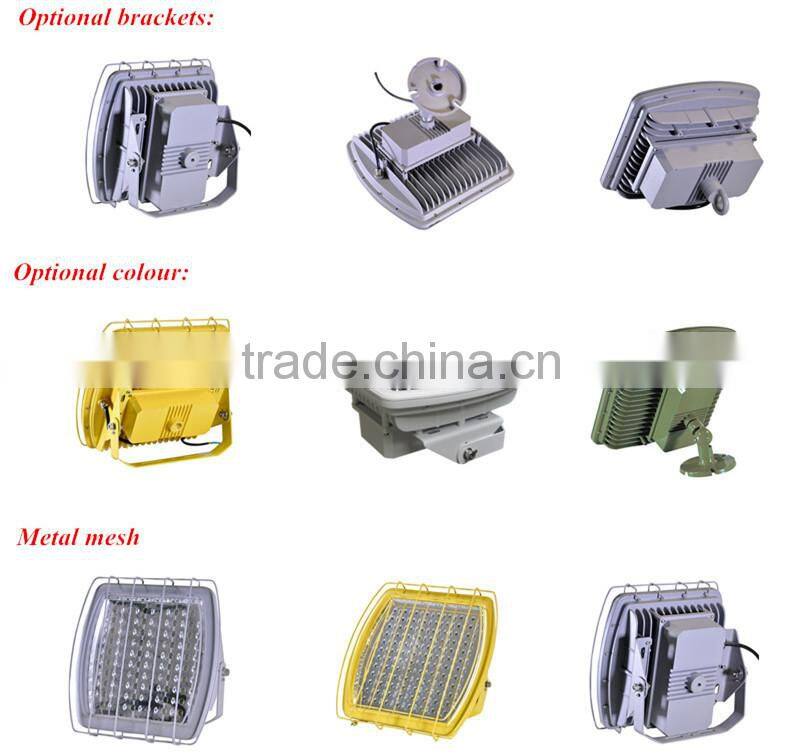

4. By now we have a whole series led EXPLOSION PROOF LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting applications.

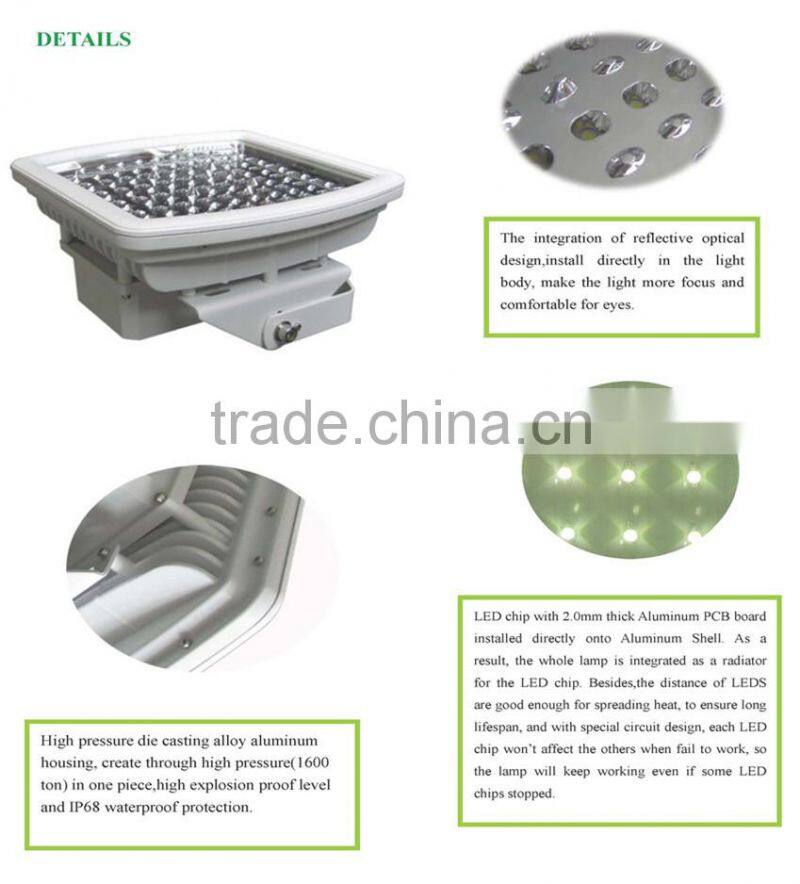

Key features;
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
-IP 68, highest rating of protection.

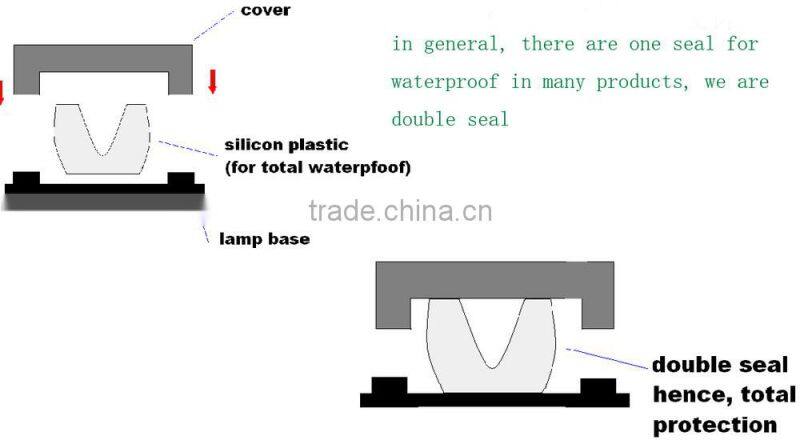

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Housing | High pressure intergrated die cast aluminum, perfect protection |
Specification:
Item No | Product Specification | Certificate for Europe | Certificate for US&Canada | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | |||
Angle | Rating | ||||||
CES-J200 | 185W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL/DLC |
CES-J150 | 150W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL |
CES-J120 | 120W | 400*400*185mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J100 | 100 | 300*300*175mm | NO | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
CES-J80 | 80W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J40S | 40W | 200*200*270mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
LED Specification | Driver Specification | |||||||||
Item No. | LED QTY | Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type |
Lm/W | ||||||||||
CES-J200 | 156 pcs | 16550 | 90Lm/W | Cool White: 5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing |
CES-J150 | 144 pcs | 13500 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J120 | 96 pcs | 10800 | 90Lm/W | Natural White: 3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J100 | 84 pcs | 9000 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J80 | 60pcs | 7200 | 90Lm/W | Warm White: 2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J40S | 24pcs | 3600 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||

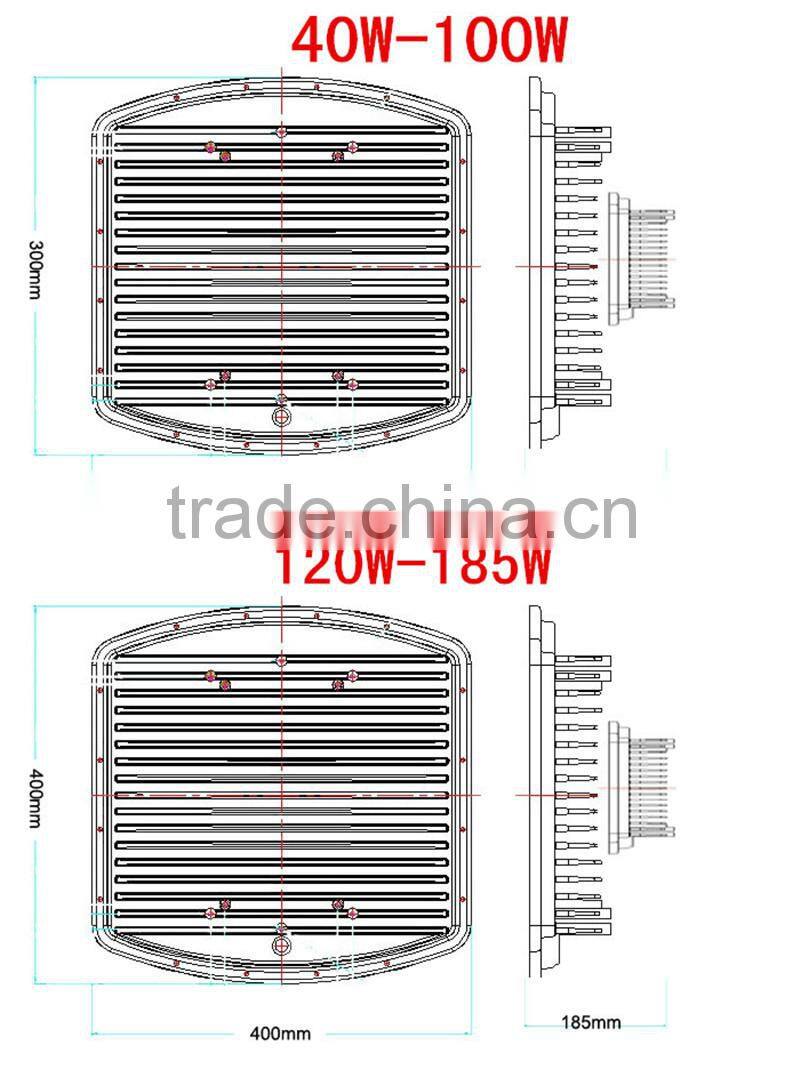

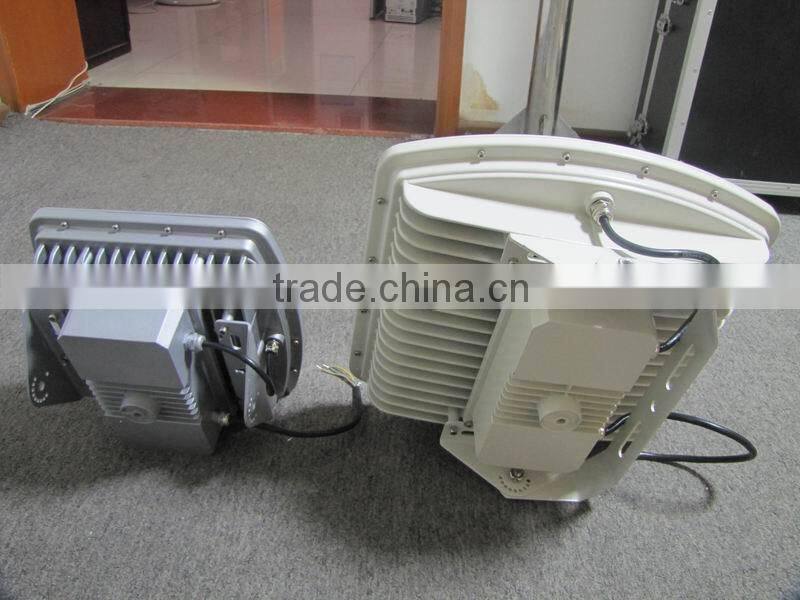

Product image:

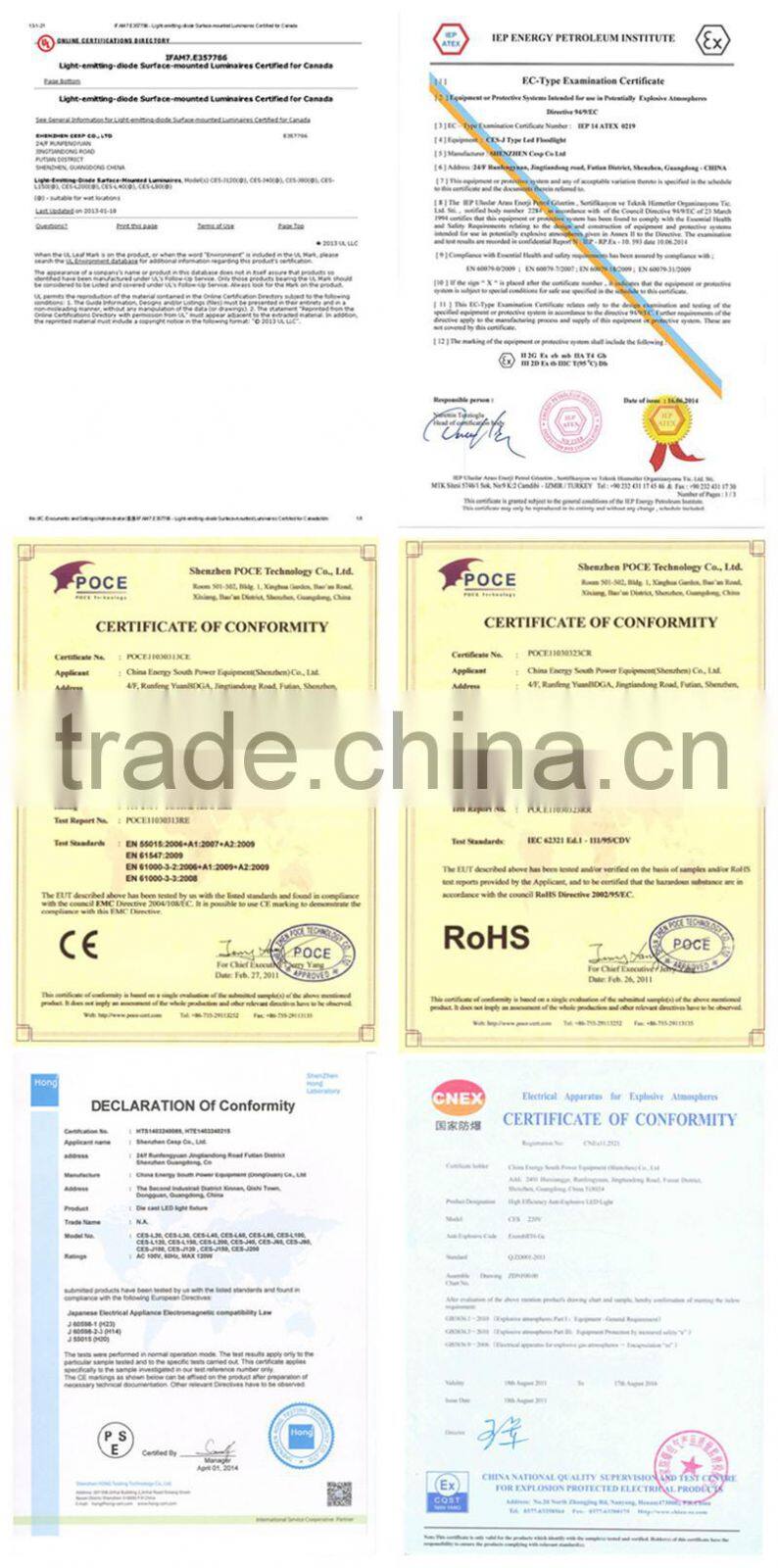

Certification:
Application:
Widely used in gas station canopy lighting , oil refinery industrial lighting , coal mine lighting and explosion proof flood lighting etc.

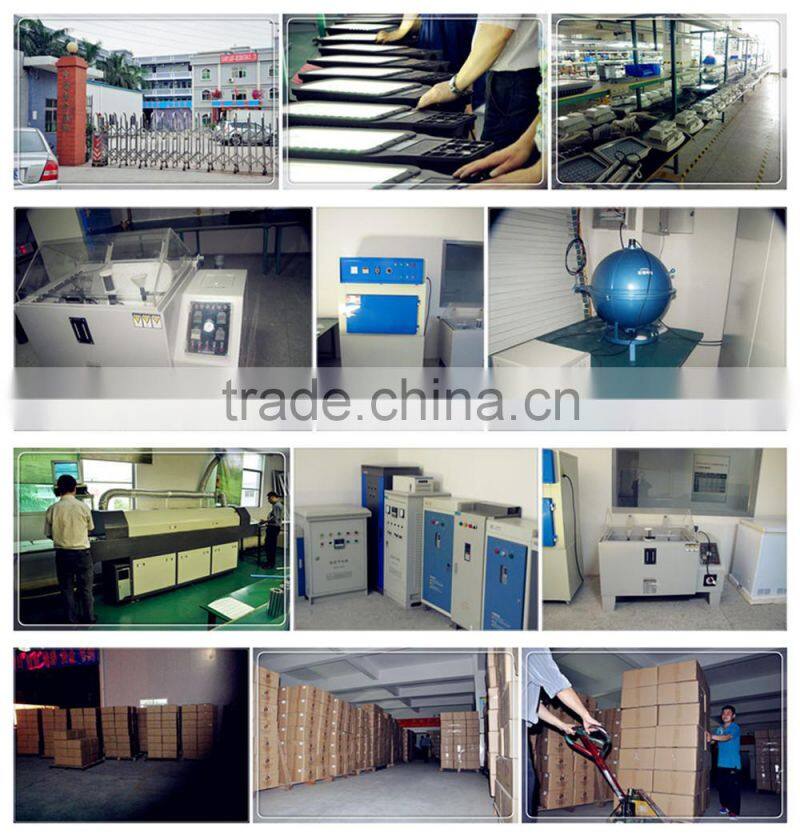

Factory show:
