Goodix IC i2c interface multi-touch 10.1inch pcap touch panel
USD $1 - $25
/ Piece
1 Piece(Min.Order)
- shenzhen
- T/T Credit Card
You May Like
-
32 inch projector multi touch screen with EETI touch controller board
-
Industrial control Glass+Glass 32" projected capacitive touchpanel
-
Glass+Glass 10-point capacitive touchscreen 21.5" for smart home
-
Hot selling 7" touch screen module panel with wide operating temp
-
Yunlea 7 inch industrial touch screen module with high resolution
-
I2C 5 inch transparent lcd small touch screen module with multi-touch
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yunlea | |
| Model Number | YL | Type | Other, capacitive Touch panel |
Product Description
Goodix IC i2c interface multi-touch 10.1inch pcap touch panel
Skype:yunlea.sales
Product Description
What's specification of 10.1 inch touch screen?
---The specification of 10.1 inch touch screen--- | |
| Specification | |
| Size | 10.1 inch |
| Product name | 10.1 inch capacitive touch screen |
| Model number | YL |
| Type | Capacitive touch screen |
| Struture | CTP(Glass+Glass) |
| Outline Dimension | 251.00x174.00mm |
| Active area | 218x136.80 mm |
| Thickness of cover glass | 0.7 mm |
| Touch screen solution | COF(Chip on the FPC) |
| Touch IC | Goodix |
| Operating system | Win 7,win8,win ce,android,Linux |
| Interface of CTP | I2C |
| Surface Hardness | 6H |
| Transparency | 86%min |
| Touch Points | 10 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |

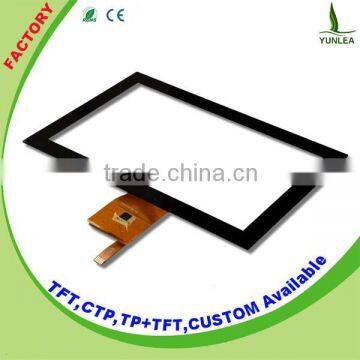

---The picture of 10.1 inch touch screen --- |
|
|
