Home > Products > Air Compressor Valve > AC 220V FUJI Air Compressor Solenoid Valve 1/2 Inch Normally Open
AC 220V FUJI Air Compressor Solenoid Valve 1/2 Inch Normally Open
US$ 40 - 50
/ Piece
5 Pieces(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
-
Compressor 240v Hydraulic Solenoid Valve 22124085 With AC240V Power SA11B Coils
-
22205462 Compressor 24v Hydraulic Solenoid Valve With AC110V Power SA11B Coils
-
Atlas Copco Unloader Valve Replacement Parts OEM Air Compressor Parts
-
NC NO 3/2 Way Solenoid Valve With 110v 1/2 Inch Port Size 0 - 21Bar Opening Pressure Diff Product: Solenoid Valve Voltage: 22
-
BOGE Air Compressor Parts Spare Parts for Compressors Air Solenoid Valve
-
IR Air Compressor Parts Solenoid Valve With Hose 39198569 OR 22410286 Solenoid Valve 220v ac
Product Details
| Condition | New | Type | Screw | |
| Configuration | Stationary | Power Source | DC Power | |
| Lubrication Style | Lubricated | Mute | Yes | |
| Place of Origin | China | Brand Name | FUJI | |
| Model Number | CEME 1/2 | Voltage | 110V/220V | |
| Dimension(L*W*H) | stand | Weight | 1kgs | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Product Description

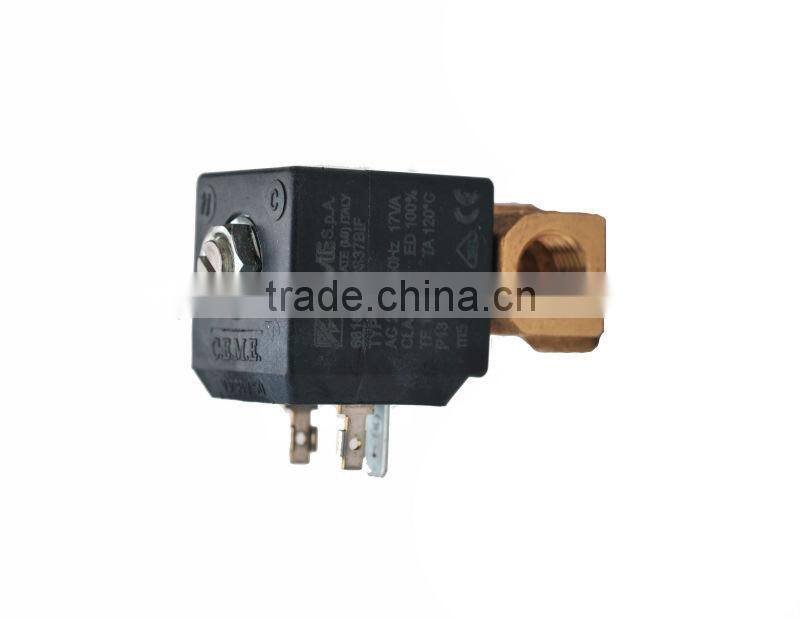

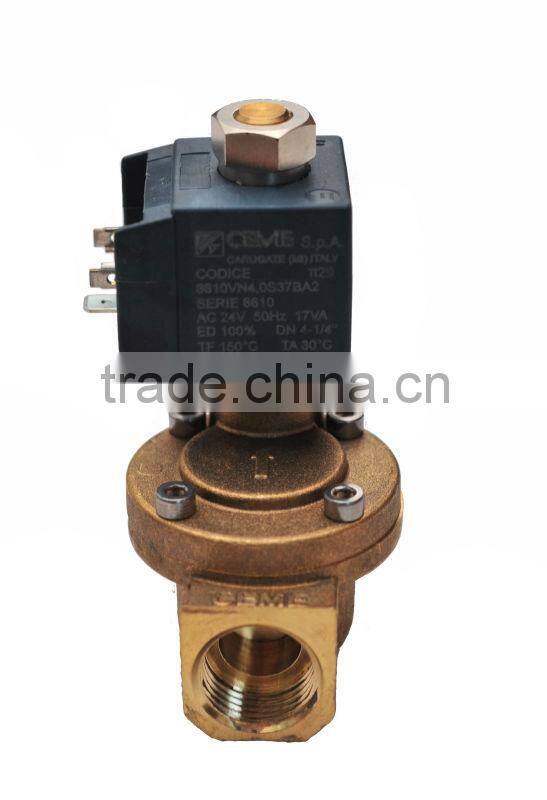

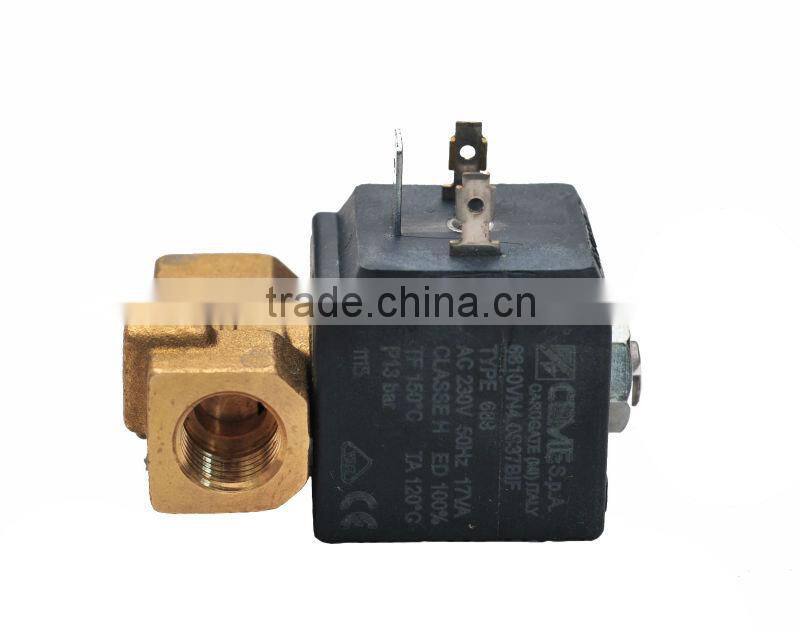

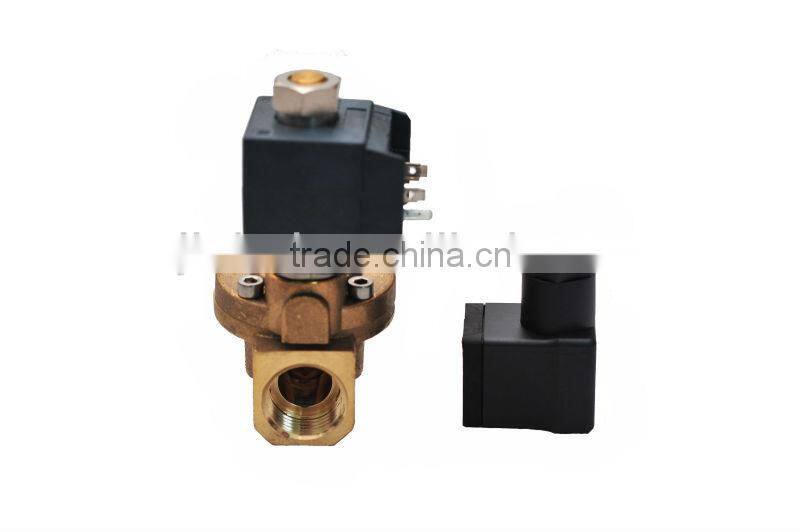

AC 220V FUJI Air Compressor Solenoid Valve 1/2 Inch Normally Open
Product information
CEME normally open 220V solenoid valve atlas copco air compressor parts
description: Solenoid valve
part number: CEME 1/2 inch solenoid valve
Brand: CEME

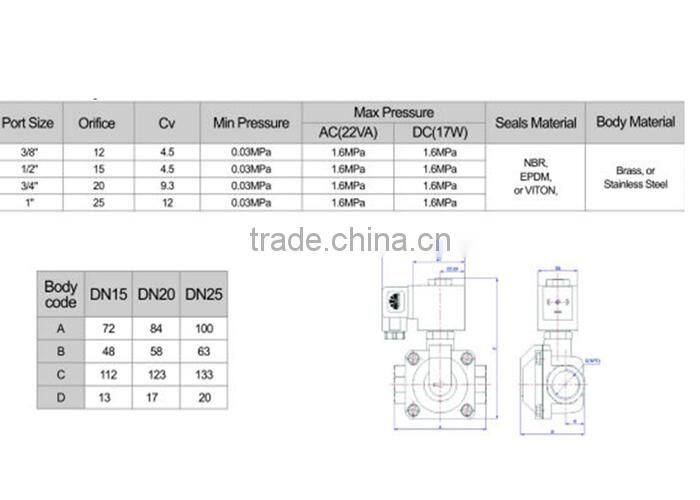

Technical data
| Characteristic | 1.pilot operated diaphragm structure with less power comsumption for long time working |
| 2.Applied to pressure system opened from 0.03 Mpa | |
| 3.Life span can be over 1 million times | |
| Medium | Air, water etc. |
| Temperature | NBR: -10°C to 80 °C |
| EPDM: -10°C to 120 °C | |
| VITON:-10°C to 150 °C | |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ | |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
| S91B,22VA(AC),17W(DC) IP65,100% ED | |
| Special coils | Latching coil:DC6-24V as requested |
| Material | Body- brass or stainless steel |
| Seal- NBR,EPDM,VITON | |
| Amature tube-stainless steel 304 | |
| Plunger-stainless steel430F | |
| Stop-stainless steel 430F | |
| Springs-SS304 | |
| Shading rings- stainless steel 304 |
technical data
Business scope
| Main type | Screw air compressor | Oil-free Compressor |
| Piston air compressor | Protable air compressor | |
| Main brand: | Atlas Copco | |
| Sullair | Hitachi | |
| Fusheng | Kaeser | |
| Boge | compare | |
| Main products: | Air intake Valve | Thermostat Valve |
| Solenoid Valve | Blow off Valve | |
| Drain Valve | Minimum Pressure Valve | |
| Temperature Sensor | Pressure Sensor | |
| Unloading Valve Kits | Stop Oil Valve Kits | |
| Check Valve kits | Oil-free Service Kits | |
| Controller | Gear Wheel | |
| Coupling | Hose & Elbow | |
| Air Filter | Oil Filter | |
| Oil Separator | Oil Level Indicator | |
| Air-end | Used Air Compressor | |
Packaging & Shipping
How to pack your goods?
There is 3 kinds of ways to packed the goods, which depends on your requirement
1, Packed with original package
2, Packed with your design package
3,Packed with our blank package, below is the example for reference
Why do you choose our product:
1, 14years experience in air compressor parts area
2, have been providing to 2,000 customer in domestic and oversea customers
3, high work effiency
4, original manufacturer and supplier
5, seriously quality control
2, have been providing to 2,000 customer in domestic and oversea customers
3, high work effiency
4, original manufacturer and supplier
5, seriously quality control
FAQ
Q1: How can I get the quotation?
A: you can advise us the part number for checking, and we will quote to you soon by email
Q2: What kind of ways for transportation ?
A:In general by air, sea or Express.(like DHL,Fedex,TNT,etc.)
Q3: How do I know the quality of productions?
A:We have a strict series of quality control, and we have perfect after service system, which can help you to solve the problem soon
Q4: If i want to change model,size,package,etc. How can I do?
A:You can contact us by skype or mail, and we will revise according to your requirement
Q5: What is the terms of payment ?
A: T/T, Western Union, paypal(need 5% paypal fee)
