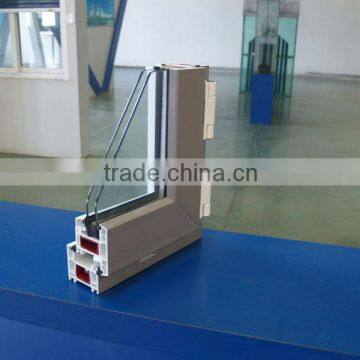

CONCH 80 PVC profiles for UPVC windows system

Specifications

The section of 80 series

1,The visible panels’ thickness of frame and mullion is 2.0mm, according with national standard GB/T8814-2004.

2,Multicavity structure ensures the excellent heat insulation or preservation performance of conch 80 series.

3,Both high-range and mid-range of Conch 80 series sliding window are very popular and attractive in China.

4,High-grade SF66-37NC sliding frame makes the window have transmission.

5,By using three-cavity and graphic design, you will be deeply impressed by perfect matching between 80 series window and other series window, which help you select the window materials much easier.

The features of 80 casement series

1,The design of conch 80 series is reasonable; both design value and actual value of strength of fillet meets standard requirements; the lapping amount between glass and profile is also standard.

2,By measuring, 80 series window has obvious wind resistance performance.

3,80 series window is designed with unique drainage channel which provides the water tightness.

The diversification of connection profile

1,Conch 80 series can be made any combination with 60 series to enrich the window pattern.

  2,This scientific and perfect design is the most suitable for national housing project.

Node Drawings
