Home > Products > LED MODULES & SOFT STRIP > Samsung Series LED Module 1W 2pcs SMD5730 160 degree led module light 12V DC for adversiting Quality Choice

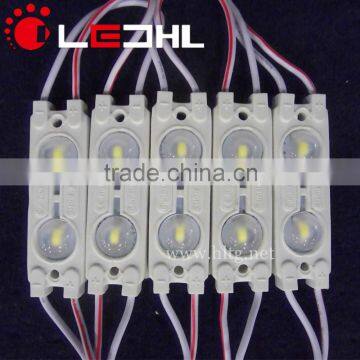

Samsung Series LED Module 1W 2pcs SMD5730 160 degree led module light 12V DC for adversiting Quality Choice

FOB Price

US$ 0.20 - 0.20 / Piece

1000 Pieces(Min. Order)

Port Hongkong or Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	HL-MC10S	Chip Material	Other, ABS Injection
Emitting Color	Other, White	Luminous Intensity	10000
Luminous Flux(lm)	90lm	Optical Attenuation(%)	1
Power	Other, 1W	Power Dissipation	1W
Color Rendering Index(Ra)	80	Color Temperature	10000-12000K
Operating Temperature(℃)	-20, 50	Storage Temperature(℃)	-30, 80
Place of Origin	Guangdong, China	Brand Name	iledhl
Certification	CE, CE

Product Description

Product Introduction

(1) 0.5W/LED

(2) Use Samsung SMD5730 1W high power chipset

(3) Warm white: 3000-3200K White: 6000-6500K Cool White: 10000-12000K, Red, Yellow, Blue, Green, Pink all available for this type

(4) Consumption: 1W

(5) DC12V input

(6) IP level: IP65

(7) 20pcs as a series

(8) Working temperature : -20~50 degree

(9) Packing : 100pcs / bag , 10bags / Carton

(10) Color: Warm white, White, Cool White, Red, Yellow, Blue, Green, Pink supported

(11) Offer ODM service and also the high brightness customrized strip for the project

(12) Easy installation : self adhersive

(13) Extended life : more than 30,000 hours

(14) Evironmental friendly : with CE / RoHS certificate, more than 60% more energy efficient than Neon

(15) Safe application : Low voltage DC12V, safe and stable, free maitenance

Product Specification

Model	HL-MC10S
LED Type	2LEDs Samsung SMD5730
Warranty (years)	3
Emitting Color	10000-12000K
Beam Angle (°)	160° with lens
Lumen(LM)	Red	Green	Blue	Yellow	WW	NW	CW
	/	/	/	/	70	80	90
Wave Length (nm/Kelvin)	620-625nm	520-530nm	465-470nm	585-595nm	3000-3200K	6000-6500K	10000-12000K
Chip Qty (chips)	1
LED Chip Life (H)	50,000
Electrical Parameter	Working Input Voltage (V)			DC12V
	LED Power (W)			1W
	Working Input Current (mA)			83mA
	Drive Mode			Constant Voltage
Features of Connection and Series	Interface: 1007 20AWG; Externl diameter: 1.8*100mm combined wire of white & red color
	Standard quantity of a series			20 pcs
	Max quantity of a series			20 pcs
Physical Parameter	Diamension			50159mm
	Housing Color			White
	Housing Material			ABS ABS & epoxy resin Injection
	Affixing way			FB1610PE 3M double-sided adhersive tape & 4 screws or rivets with diameter of 3.0-4.0 mm
	Weight			12g
Enviromental Parameter	Working Temperature			-40°F- 122°F (-40°-50° C)
	Storage Temperature			-58°F- 140°F (-50°-60° C)
	Operating Humidity			10% - 95%, non-condensing
	IP Rate			IP65 waterproof
Packing	Qty/ctn			20pcs/bag,1000pcs/ctn
	Ctn Size			50x25x27cm
	G.W./Ctn			12.92KG
	CBM/Ctn			0.04m3

Product Details

Installation:

Certification:

Application Project:

1 Channel letter

2 Advertisements sign

3 KTV,Disco

4 LOGO, advertising billboard,exposed luminous characters

5 LED display screen

Company Profile:

Hualing Technology Group Co., Ltd, which was founded in March, 2006, located in Guangming New Area, Shenzhen, with convenient traffic and elegant environment.

We are always giving the best support with customer’s requirement and work hard to keep growing.

Business Type: Manufacturer

Main Products:Industrial LED Lighting – LED Street Light, LED Flood Light, LED High Bay Light, LED Tunnel Light, etc.

Commercial LED Lighting – LED Panel Light, LED Tube, LED Spot Light, LED Bulb, LED Ceiling Light, LED Down Light, etc.

Advertising LED Lighting – LED Module, LED Strip, LED Bar, LED Power supply etc.

Location: Shenzhen, Guangdong, China (Mainland)

Year Established:2006

Start Exporting: 2011

Number Of Employees: 51 - 100 People

Factory Area: About 2000 m³

Total Annual Sales Volume: US$2.5 Million - US$5 Million

Main Markets: South America, Eastern Europe, Western Europe, Southeast Asia, Southern Europe

Our Service

Trade terms : EXWSZ / FOBHK / CNF / DDP

Delivery time : Usually take us 7days for Regular quantity order

Warranty : 2 years for LED strip

5 years for the LED modules

Warranty Terms : Due to the high import tax , so if there is any defective bulbs within the warranty time , please kindly to contact with us with the information : Model Number , Watts , Color temperature and defective qty . We will firstly require you to collect them together and sent to our service center in Europe (Frankfurt am , Germany) . And we will sent the FREE NEW bulbs with the goods . To do this way is in order to save the shipping cost . Please help to understand that we are not the “ ONE TIME Supplier “ , 98% of our business are focusing on the Europe market . We would like to give the competitive price and warm service by replacing the bulbs freely based on your kindly understand on this . Thank you !

Our Working time : Local time 8:00 AM-7:00PM (your time )

China time 2:00PM-2:AM (China time )

Normal inquiry : Please email at sales05 AT hltg DOT net

Urgently inquiry : Please call us via skype hl-sherry, we will reply within 3 minutes.
